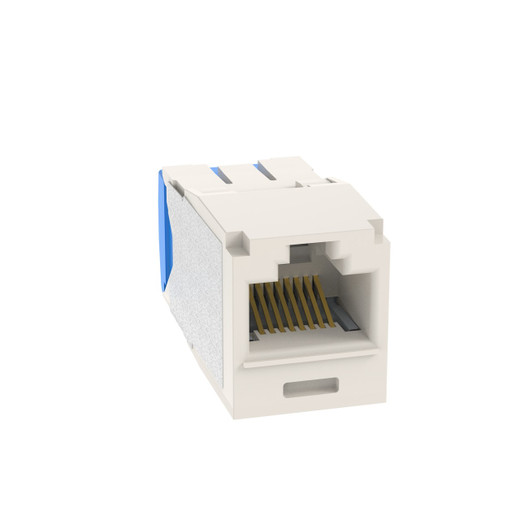

Panduit CJ6X88TGWH Module Jack

Overview

The Panduit CJ6X88TGWH is a Cat 6A, UTP, RJ45 (8P8C) tool-free module jack designed for terminating 22-26 AWG, 4-pair twisted pair cable. This jack is built to exceed industry standards, ensuring reliable data transmission up to 500 MHz, crucial for high-speed networking and Power over Ethernet (PoE) applications. Its tool-free termination style simplifies installation, eliminating the need for specialized crimping tools. Each jack is factory tested and features an individual serial number for traceability, making it suitable for structured cabling systems that require robust performance and accountability. The white color and Mini-Com form factor allow for seamless integration into Panduit's modular panels and faceplates.

Compatibility

This module jack is engineered for use with Panduit's Mini-Com Modular Jack System, compatible with all Mini-Com faceplates, patch panels, and surface mount boxes. It supports 10GBASE-T networks up to 100 meters over 4-pair cabling. The jack is compliant with ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA standards, ensuring interoperability with certified Category 6A cabling infrastructure.

Installation Notes

The tool-free (TG) termination design allows for quick and efficient cable termination without requiring a punch-down tool. Ensure proper cable management and strain relief are applied during installation to maintain performance integrity. The jack is rated for 2,500 mating cycles with PoE support.
