Panduit CJ6X88TGYL Jack Module

Overview

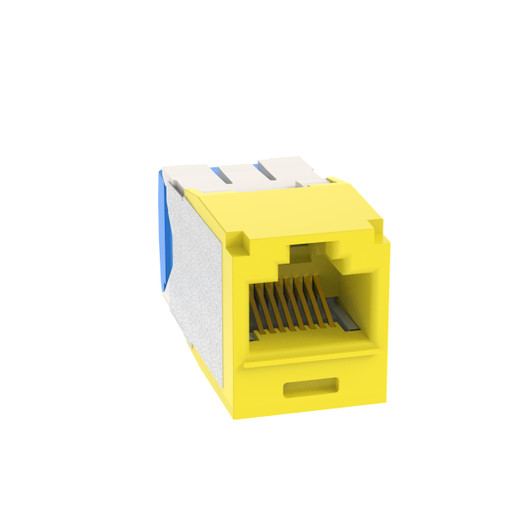

The Panduit Mini-Com® Cat 6A UTP RJ45 TG Jack Module, model CJ6X88TGYL, provides a reliable termination point for 4-pair, 22-26 AWG twisted pair cable. Designed for ease of installation with its TG style termination that eliminates the need for a specialized tool, this module ensures a clean and efficient network infrastructure build. Each unit is factory tested to exceed industry performance requirements for 10GBASE-T transmission up to 100 meters.

Compatibility

This jack module is compatible with Panduit Mini-Com Modular Patch Panels and Faceplates. It supports 10GBASE-T transmission over twisted pair cabling systems up to 100 meters at swept frequencies from 1 to 500 MHz, meeting both ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA standards. It is also rated for 2500 cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4 PoE standards.

Installation Notes

The TG style termination is designed for tool-less installation, simplifying the termination process. Each jack is individually serialized for traceability. The module is rated for 2500 plug-mating cycles, ensuring long-term reliability in high-density environments.
