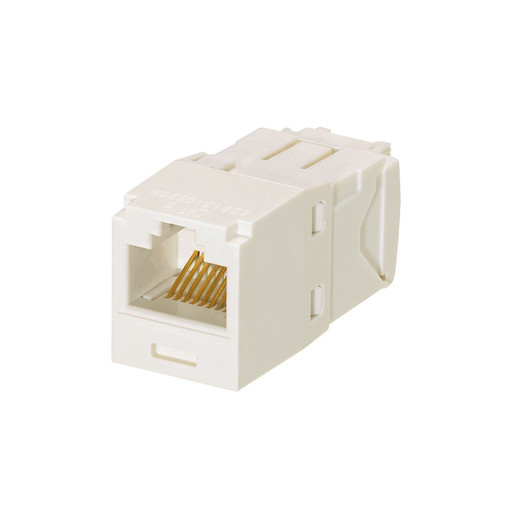

Panduit CJ688TGIW Mini-Com Cat 6 TG Jack Module

The Panduit CJ688TGIW is a Mini-Com UTP RJ45 Cat 6 jack module engineered for low-voltage installers who need tool-free termination without sacrificing performance. TG-style (tool-less) termination eliminates the need for a punchdown tool—critical when you're working in tight equipment racks or wall boxes where swinging an impact tool isn't practical. Factory tested to exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards across the full 1–250 MHz swept frequency range, this module supports 10GBASE-T transmission up to 100 meters in 4-connector configurations. Each jack is individually serialized for end-to-end traceability—essential for warranty claims, change-order documentation, and audit trails on government or enterprise jobs.

Key Features

• TG tool-less termination—no punchdown tool required, speeds install in confined spaces
• Exceeds Cat 6 component and channel requirements at 1–250 MHz for 10GBASE-T over 100 meters
• Factory tested and individually serialized for traceability and quality assurance
• Terminates 4-pair, 22–26 AWG twisted pair cable (solid or stranded)
• Compatible with all Mini-Com modular patch panels, faceplates, and surface-mount boxes
• Rated for 2,500 insertion cycles with IEEE 802.3af/at PoE and proposed 802.3bt Type 3/4
• UL 1863 and UL 2043 plenum rated, RoHS compliant, meets ANSI/TIA-1096-A component ID

The TG termination mechanism is the standout feature for field installers. Traditional 110-style jacks require a punchdown tool with the correct blade geometry and impact force calibration; over-punch and you damage the conductor, under-punch and you get intermittent contact. The CJ688TGIW's captive termination cap guides each conductor into place and locks down with a simple press—uniform contact pressure every time, zero tool calibration, and no risk of blade-slip damage to adjacent pairs. This is particularly valuable when you're retrofitting jacks in occupied spaces (hospitals, data centers, schools) where you can't afford the noise or vibration of impact tools, or when you're running change-orders where the GC didn't budget tool time. The off-white housing (Panduit calls it "Off White," close to electric ivory) blends with most commercial-grade faceplates and maintains a clean look on customer-facing installs.

Performance-wise, the CJ688TGIW exceeds Category 6 component specs by a comfortable margin—alien crosstalk (ANEXT) and return loss figures typically land 3–6 dB better than the minimum threshold, which gives you headroom when you're chaining multiple jacks in a high-density patch panel or dealing with less-than-ideal cable dress (sharp bends, bundle compression, proximity to EMI sources). The module is rated for 2,500 mating cycles, which is double the TIA minimum for modular jacks; in practice this means the jack will survive 6–7 years of daily plug/unplug activity in a workstation environment, or 15+ years in a fixed infrastructure install (camera, access control reader, VoIP phone) where the cable stays seated. PoE support covers 802.3af (15.4 W), 802.3at (30 W), and the proposed 802.3bt Type 3 (60 W) and Type 4 (100 W) standards—critical for modern IP cameras with integrated IR, pan-tilt-zoom motors, and onboard analytics that can pull 25–40 W under full load.

The Mini-Com platform is modular by design: the CJ688TGIW drops into any Mini-Com faceplate (1-port, 2-port, 4-port, angled), patch panel (24-port, 48-port, high-density), or surface-mount box without tools or mounting brackets. This is a significant time-saver when you're standardizing on a single jack type across a multi-building campus—buy the jacks in bulk, populate faceplates as needed, and swap out damaged jacks in the field without replacing the entire faceplate assembly. Each jack ships with color-coded wiring labels for T568A and T568B termination schemes, and the serialized label on the jack body gives you a unique identifier for every termination point; pair this with Panduit's label printers and you've got a complete asset-management solution for MAC (move-add-change) tracking. Compliance includes UL 2043 plenum rating (you can install these jacks in air-handling spaces without additional enclosures), RoHS for lead-free construction, and IEC 60603-7 mechanical durability. For integrators bidding on federal or state jobs with strict Buy American Act requirements, note that Panduit manufactures these jacks domestically and can provide DFARS-compliant documentation on request.
