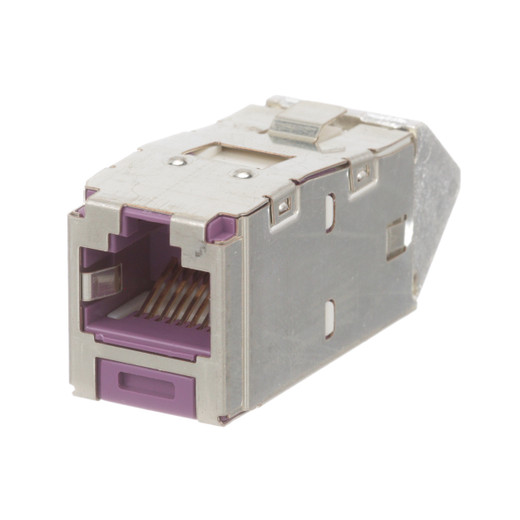

Panduit CJSUD6X88TGVLY Jack Module
Overview
The Panduit Mini-Com® Cat 6A Shielded RJ45 Up/Down 45° Angled TG Jack Module, model CJSUD6X88TGVLY, is engineered for terminating shielded 4-pair, 22-26 AWG twisted pair cable. Its TG style and 45° angle design are specifically beneficial for improving cable routing and managing bend radius in installations with limited space, such as high-density patch panels or wall plates. Each module is factory tested to exceed industry performance standards for Cat 6A connectivity.
Compatibility
This jack module is compatible with Panduit Mini-Com Modular Patch Panels and Faceplates. It supports IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 Power over Ethernet (PoE++), ensuring it can handle the power requirements of network devices without degradation. It meets ANSI/TIA-568.2-D and ISO 11801 standards for Cat 6A performance.
Installation Notes
The TG style termination eliminates the need for a specialized termination tool, simplifying installation. Each jack is individually serialized for traceability. The module supports 2500 connection cycles, providing durability for long-term deployment. It is UL 1863 and UL 2043 compliant.
