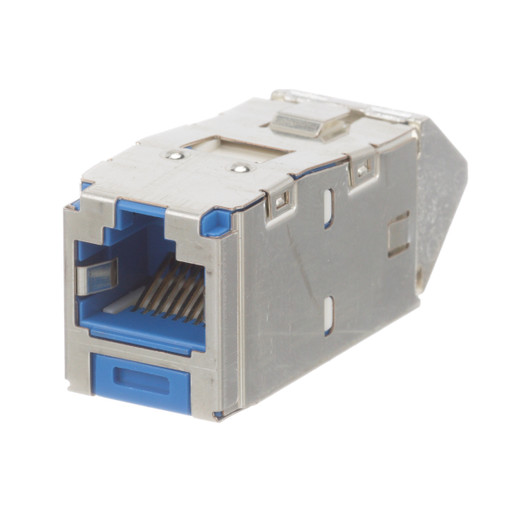

Panduit CJSUD688TGBUY Jack Module

Overview

The Panduit CJSUD688TGBUY is a blue Pan-Net® Category 6 jack module designed for high-performance copper network infrastructure. It supports 2500 connection cycles and is built to exceed the channel and component requirements of ANSI/TIA-568.2-D and ISO 11801 standards. This module is suitable for deployments requiring robust data transmission and power delivery, including environments utilizing IEEE 802.3bt Type 3 and Type 4 Power over Ethernet (PoE++).

Compatibility

This jack module is engineered for use with Panduit copper-systems cabling and is compatible with standard keystone wall plates and patch panels. It meets IEC 60603-7 specifications, ensuring interoperability within compliant network architectures. The module supports IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 PoE standards, making it suitable for powering devices like Wi-Fi 6 access points, high-definition surveillance cameras, and other PoE-enabled equipment without requiring local power outlets.

Installation Notes

Installation requires standard termination tools for unshielded twisted pair (UTP) copper cabling. The module is UL 1863 and UL 2043 compliant, suitable for use in air-handling spaces when installed in appropriate enclosures. Ensure proper cable management to maintain signal integrity and meet performance standards. The module's dimensions are 0.62 inches wide by 0.71 inches high (15.7mm x 18mm).
