Panduit CJUD688TGGR Jack Module
Panduit CJUD688TGGR Jack Module
CJUD688TGGR
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

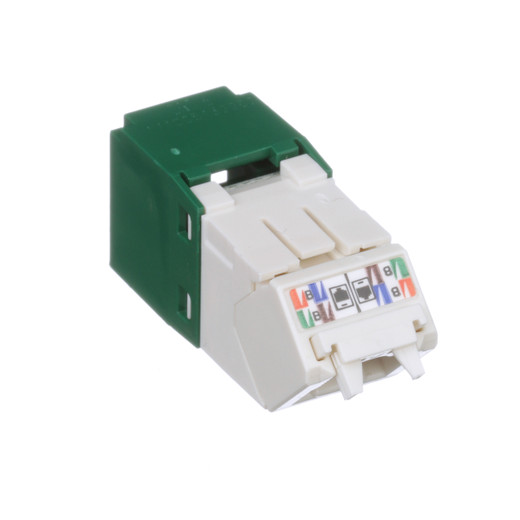

Panduit CJUD688TGGR Jack Module

Overview

The Panduit CJUD688TGGR is a Mini-Com® Cat 6 UTP RJ45 Up/Down 45° Angled TG Jack Module designed to terminate 4-pair, 22-26 AWG twisted pair cable. Its angled design significantly improves cable routing in congested racks and tight spaces, preventing sharp bends that can degrade signal integrity. This module is 100% factory tested to exceed ANSI/TIA-568.2-D and ISO 11801 channel and component requirements, ensuring reliable data transmission. The TG style termination eliminates the need for specialized tools, streamlining installation. Each jack is individually serialized for traceability.

Compatibility

This jack module is compatible with Panduit Mini-Com Modular Patch Panels and Faceplates, forming part of the Pan-Net® copper-systems infrastructure. It meets IEC 60603-7 and supports 2500 connection cycles. Critically, it is rated to support IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 Power over Ethernet (PoE++) standards, delivering up to 100W of power without performance degradation. This makes it suitable for powering IP cameras, wireless access points, and other PoE-enabled devices.

Installation Notes

The TG style termination is tool-less, simplifying the termination process compared to traditional punch-down jacks. The module accepts 22-26 AWG twisted pair cable. Its compact dimensions (0.71" H x 0.62" W) are optimized for high-density environments. The product is UL 1863 and UL 2043 compliant, suitable for use in air handling spaces, and RoHS compliant.

Expert Analysis
Specifications
Poe Power: PoE++ (802.3bt)
Sub Brand: Pan-Net®
Color: Green
Height In: 0.71
Height Mm: 18
Width In: 0.62
Width Mm: 15.7
Product Type: Jack Module
Carton Qty: 50
Package Qty: 1
Upc: 61305644983
Cable Category: copper-systems
Q&A
Reviews
Product Video
Have Questions?

Panduit CJUD688TGGR Jack Module

$19.73
$14.99
Add to Cart
