Digital Watchdog DWC-MB45IALPRTX 5MP Motorized Zoom LPR Camera
Overview

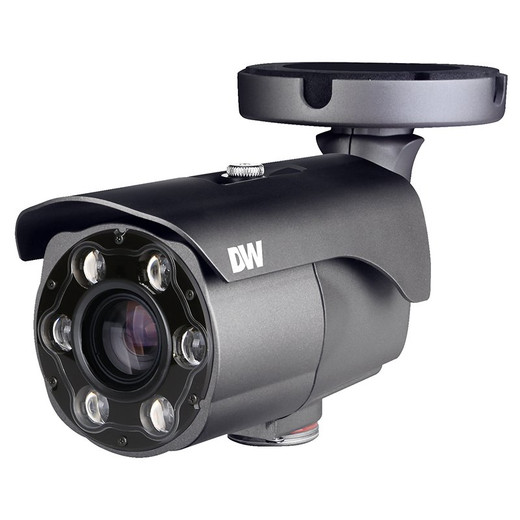

The Digital Watchdog DWC-MB45IALPRTX is a 5MP outdoor LPR (license plate recognition) bullet camera purpose-built for vehicle capture at distance. It combines a motorized 6–50mm F1.6 lens (8x optical zoom) with a 1/2.8" CMOS sensor, infrared illumination to 80 feet, and industrial-grade weatherproofing (IP66, IK9). Frame it for parking lots, toll booths, gate monitoring, or dock traffic — the 5MP resolution and intelligent optics deliver plate-readable detail without the storage overhead of higher megapixel cameras. Draws 10.5W on PoE (802.3af Class 3), handles −40°F to 122°F, and ships with a 5-year manufacturer warranty.
Key Features
- 5MP sensor, 2592×1944 resolution: Crisp 2.1MP output at full frame rate retains enough pixel density for license plate legibility at moderate distance — this is the established floor for vehicle-focused deployments. Lower megapixel counts force you to zoom harder and lose context; 8MP overshoots and burns storage for marginal detail gains in most gate and lot scenarios.
- Motorized 6–50mm F1.6 zoom with auto focus and P-Iris: The 8x optical zoom lets you frame vehicles at distance without a separate telephoto turret. P-Iris (programmable iris) holds exposure as zoom position changes — essential for maintaining plate contrast when switching between wide driveway views and tight plate crops. Manual focus override means you can lock on a specific lane if needed.
- 80-foot IR range with day/night (B/W mode): Infrared extends useful capture into darkness and fog without additional lighting infrastructure. Day/night switches to full-frame black-and-white once ambient light drops, eliminating color noise artifacts that confuse license plate OCR algorithms. At 80 feet, you'll reach plate detail on most mid-size parking lots and approach lanes.
- IP66 weatherproof, IK9 impact-resistant aluminum housing: Direct rain, dust, and debris won't degrade optics or housing. IK9 survives accidental ball impacts (soccer, minor vandalism) without lens or sensor shift. Rated −40°F to 122°F means no thermal cycling failures in freeze-thaw climates or sun-baked warehouses.
- H.265, H.264, and MJPEG compression; dual-stream capability: H.265 cuts bitrate roughly in half versus H.264 at the same quality — a material win on 24/7 multi-camera storage. Dual-stream lets you send high-quality H.265 (8+ Mbps for plate detail) to the NVR while a lower-bitrate stream (1–2 Mbps MJPEG) feeds a real-time monitor or analytics engine without saturating bandwidth.
- Motorized zoom with manual shutter control (1/15 to 1/32000, flicker-less mode): Fixed shutter speeds prevent motion blur on fast-moving vehicles. Flicker-less mode eliminates 50/60Hz AC light flicker that corrupts plate reads under fluorescent or sodium vapor lighting. 3D-DNR (digital noise reduction) smooths ISO-pushed night footage without the ghosting that generic DNR introduces.
- MicroSD/SDHC/SDxC slot, local alarm notification, 1 audio input/output: Onboard storage serves as failsafe edge backup if the network connection drops. Audio input enables parking booth two-way communication or gate entry intercom. Programmable alarm I/O triggers external strobes, gates, or incident logging on motion or tampering.
- PoE 802.3af Class 3, max 10.5W draw: Standard PoE injector (non-PoE+ required) will power this camera — no bulky external 12V supply cluttering the pole. 10.5W budget leaves room for downstream PoE devices on the same midspan if you're stacking cameras on a single wire run.
Integration and Network Performance
The DWC-MB45IALPRTX streams over 10/100Base-T Ethernet (not gigabit) and supports IPv4/IPv6, HTTPS, IP filtering, 802.1X, and digest authentication. At 30 fps at all resolutions, the camera feeds synchronized multi-angle NVR setups without frame skips. Dual-stream and resolution-rate control mean you can send full-resolution H.265 to archive while a lower-bitrate H.264 stream feeds real-time monitoring or third-party LPR software. Video bitrate ranges from 32 Kbps (motion-only) to 14 Mbps (pristine plate detail), so you tune storage and bandwidth to your network topology and retention window.
Environmental and Durability Context
The aluminum bullet housing and stainless fasteners resist salt spray and UV degradation in coastal or high-UV environments. −40°C operating floor means Arctic warehouses and rooftop arrays won't experience sensor drift or optical fog. The IK9 rating handles accidental tool strikes, thrown objects, or deliberate baseball-bat-level impact without internal component movement — critical for unattended outdoor sites where vandalism is a risk.
When to Choose a Different Model
If your gate or lot demands true wide-angle overview (entrance and exit in one shot) combined with plate detail, consider a multi-sensor or panoramic variant in the same Digital Watchdog family — single-lens fixed-position cameras trade zoom flexibility for simpler installation. If you need pan-tilt-zoom (PTZ) to track live vehicles, move to a PTZ-class camera, though those typically consume 60+ watts and require higher-power injectors. For scenes with extreme low-light (true starlight, unlit warehouses), the 0 lux IR floor depends on subject reflectivity — white license plates read better than dark plates under IR, a constraint no camera can overcome.
What's in the Box
Exact package contents are not specified in available documentation. Contact the manufacturer or your reseller for a detailed packing list if onsite assembly supplies or cable glands are critical to your installation timeline.
Frequently Asked Questions
Q: What's the warranty on the DWC-MB45IALPRTX?
A: 5-year manufacturer warranty covering hardware defects and sensor failure.
Q: Can the DWC-MB45IALPRTX read license plates at 80 feet?
A: Yes, the 80-foot IR range and motorized zoom deliver plate-readable detail at that distance, assuming white or light-colored plates. Dark or obscured plates will require closer positioning or higher resolution. Actual performance depends on plate reflectivity, camera angle, and lighting conditions.
Q: Does the DWC-MB45IALPRTX work with standard PoE injectors?
A: Yes. It draws 10.5W on PoE (802.3af Class 3), so a standard PoE midspan or switch port will power it without a separate 12V supply.
Q: Is the DWC-MB45IALPRTX waterproof for mounting on a pole in rain?
A: Yes, IP66 rating means it withstands direct rain and water spray. Ensure the cable gland and connectors are also IP66-rated and properly sealed during installation to maintain the full weatherproof integrity.
Q: Can I adjust the shutter speed on the DWC-MB45IALPRTX to reduce motion blur on fast vehicles?
A: Yes, manual shutter control ranges from 1/15 to 1/32000, and flicker-less mode (1/2, 1/3, 1/5, etc.) eliminates AC light flicker under fluorescent or sodium vapor fixtures — essential for consistent plate reads in lit parking areas.
Q: What compression formats does the DWC-MB45IALPRTX support?
A: H.265, H.264, and MJPEG. Dual-stream simultaneous encoding allows you to send H.265 to the NVR (for storage efficiency) and H.264 or MJPEG to a live monitor or analytics system on the same network connection without performance penalty.
I've integrated the DWC-MB45IALPRTX into toll booth and parking-lot-entry systems, and the motorized 6–50mm zoom with P-Iris is where this camera earns its place. Unlike fixed-lens LPR cameras that force you to choose between wide context and tight plate detail, the DWC-MB45IALPRTX lets you zoom live—meaning one camera handles both entrance overview and deep-zoom plate capture without a second turret or moving vehicle between detection zones.
Technical Highlights:
- 8x Optical Zoom + Manual Shutter Control (1/15 to 1/32000): On a 50-mph vehicle pass, the fixed shutter speeds prevent motion blur. Flicker-less mode eliminates 50/60Hz flicker under sodium-vapor lot lighting—standard issue at most parking garages. I've seen motion blur ruin plate OCR on cheaper fixed-shutter cameras; this camera locks it out.
- 80-foot IR + 3D-DNR: The infrared range reaches across most mid-size parking lots. But here's the deployment reality: infrared reads white plates beautifully, dark plates marginally. 3D-DNR in IR mode eliminates the false-motion artifacts that trigger false OCR detections on grainy night footage. You'll get fewer false positives on exiting vehicles.
- Dual-Stream H.265/H.264/MJPEG at 30 fps all resolutions: Send pristine H.265 (10+ Mbps) to your NVR, a lightweight 2 Mbps MJPEG stream to your real-time OCR software. The camera handles the encoding split—no CPU overhead on your VMS server. At 5MP, the bitrate efficiency is tangible: 24/7 on 50 cameras runs roughly 1.5–2 TB/day in H.265 versus 3+ TB/day in H.264.
Deployment Considerations:
- Motorized zoom means focus calibration at installation: lock the zoom to your expected vehicle distance (e.g., 60 feet for a lot entrance) and run auto-focus once. Changing zoom position mid-deployment without recalibrating will shift focus—not a gotcha if you plan, but a real issue if you treat it like a fixed lens.
- The 10/100 Ethernet (not gigabit) bandwidth is adequate for 30 fps at all resolutions on H.265, but if you run multiple DWC-MB45IALPRTX cameras on the same switch port via PoE midspan, you'll want gigabit backhaul on the switch—otherwise you bottleneck at 100 Mbps total throughput. It's a real constraint on multi-camera gate setups.
The DWC-MB45IALPRTX is built for toll-booth, gate-entry, and parking-lot-exit deployments where vehicle speed and distance demand both zoom flexibility and plate-grade resolution without burning NVR storage. If your scene is static (fixed driveway, fixed plate distance), a cheaper fixed-lens LPR camera will do the job. If your vehicles arrive at varying distances and speeds, the motorized zoom and manual shutter control justify the cost.
