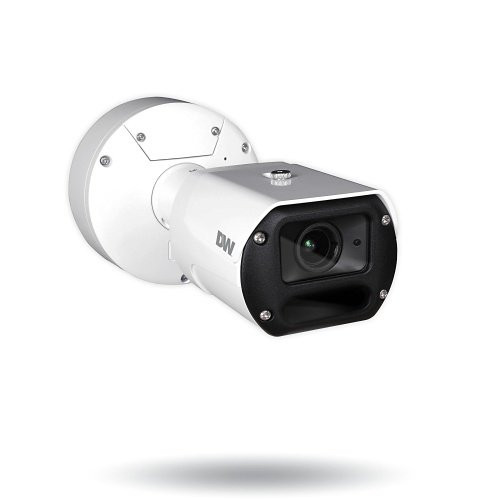

Digital Watchdog MEGApix Ai Weather Resistant - DWC-XSBJ08MI

Digital Watchdog DWC-XSBJ08MI 4K Varifocal Outdoor Camera

The DWC-XSBJ08MI is a 4K (3840×2160) outdoor-rated IP camera with a 2.7–13.5mm varifocal lens and True WDR to 120dB—built for installations where you need high-resolution evidence capture across varied lighting without sacrificing frame rate. The aluminum die-cast housing, IP67 and IK10 ratings, and -40°F to 122°F operating range make it reliable in harsh weather and vandalism-prone environments. This camera supports both 12V DC and standard PoE power, reducing installation complexity on jobs where conduit runs are already congested.

Key Features

• 4K Resolution (3840×2160): Captures 8.3 megapixels per frame at up to 30 fps. Critical for retail floors, parking structures, and entry portals where you need to read badges, license plates, or faces without cropping or post-processing zoom. At 110 feet of IR range, detail holds even in low-light scenes.
• 5x Optical Zoom Varifocal Lens (2.7–13.5mm): Field of view spans 33.1°–90.3° horizontally. One camera can cover a loading dock entry (wide angle) or zoom to monitor a specific access point—no need for separate wide and tele units on the same wall.
• True WDR to 120dB: Forensic-grade wide dynamic range eliminates the glare-blown highlights and crushed shadows common in mixed-lighting scenes. A loading dock with sunlight on the door frame and dim interiors becomes legible in a single frame without requiring separate day/night recording modes.
• 110ft Infrared Range: IR LED array reaches 110 feet (33.5 meters), enough for parking lots and outdoor perimeters without additional lighting. IR automatically engages when ambient light drops below the 0.094 lux color threshold, switching to monochrome.
• PoE or 12V DC Flexibility: Draws max 15W over PoE (802.3af Class 3) or 13.1W on 12V DC. Fits into existing Cat5e PoE runs without requiring a dedicated power supply, or integrates into analog-era 12V infrastructure if needed. Power budget is modest enough that you won't strain a standard 30W PoE injector on a multi-camera run.
• IP67 and IK10 Ruggedness: Sealed against dust and direct water spray; vandal-rated to IK10 (11 joules impact). Suitable for outdoor mounting without protective housings—a real time saver on retrofit jobs where every bracket costs money and adds complexity.
• H.265, H.264, and MJPEG Compression: H.265 cuts file size 40–60% below H.264 at the same quality, reducing storage costs on 24/7 multi-camera deployments. Frame rate stays at 30 fps across all three codecs. Bitrate is adjustable from 100 Kbps to 25 Mbps—high enough for detail, low enough to respect bandwidth on sites with constrained uplinks.
• On-Camera Microphone and Audio Output: Built-in mic captures ambient sound (useful for loading dock activity verification). One audio output supports local speaker feedback or integrations with third-party intercom systems.
• 16 Programmable Privacy Zones: Mask sensitive areas (neighbor windows, adjacent parking) without dropping frames or reconfiguring streaming. Masking happens at the camera, not the VMS—preserving bandwidth and reducing management overhead.
• microSD Slot (Class 10): On-device storage up to SDxC capacity. Useful for backup recording or failover on bandwidth-constrained sites. Automatically overwrites oldest footage when full.
• ONVIF Compliance and Standard Protocols: RTSP, HTTPS/TLS, DHCP, DDNS, NTP, FTP, SMTP—integrates with any major VMS (Milestone XProtect, Genetec, etc.). 802.1x and digest authentication secure the stream from unauthorized access. SNMP monitoring lets NOC systems track camera health.
• NDAA and TAA Certified: Meets Section 889 compliance for U.S. federal and GSA Schedule projects. No sourcing or content-filtering workarounds needed on government infrastructure bids.

Integration & Compatibility

The DWC-XSBJ08MI connects via standard RJ45 1 Gbps Ethernet. Any modern network switch with 802.3af PoE ports will power it directly; no separate injector required unless you are daisy-chaining multiple cameras off a single port. Triple streaming (main, secondary, tertiary) supports simultaneous recording and live viewing at different resolutions—useful for bandwidth-constrained remote offices that need high-quality local NVR storage but lower-bitrate cloud backup.

Day/Night mode is automatic (TDN) or manual selectable. Slow shutter (1/2 to 1/10 second) boosts low-light sensitivity without IR if ambient light is marginal—helpful in parking garages where IR washes out color detail at close range. Shutter speed ranges from 1/32000 (bright sun) to 1/15 second, providing fine control over motion blur in high-activity zones.

What's in the Box

Package contents are not specified in available documentation. Contact the vendor for a detailed accessory list (mounting bracket, cable glands, IR dome cover, and power connector specifications).

Frequently Asked Questions

Q: Is the DWC-XSBJ08MI NDAA Section 889 compliant?

A: Yes. The unit carries NDAA and TAA certifications, qualifying it for federal and GSA Schedule procurement without content-filtering or alternate-source requirements.

Q: What's the warranty on the DWC-XSBJ08MI?

A: Manufacturer warranty is 5 years from date of shipment.

Q: Can I power the DWC-XSBJ08MI over standard PoE (802.3af)?

A: Yes. The camera draws max 15W PoE (IEEE 802.3af Class 3), so a standard 30W PoE injector or switch port will power it without dedicated supply conduit. 12V DC is also supported for retrofits into existing analog infrastructure.

Q: What is the maximum infrared range of the DWC-XSBJ08MI?

A: 110 feet (33.5 meters). IR activates automatically when ambient light drops below 0.094 lux (color threshold) and switches the image to monochrome for enhanced night visibility.

Q: Does the DWC-XSBJ08MI support H.265 compression?

A: Yes. It supports H.265, H.264, and MJPEG. H.265 reduces file size 40–60% compared to H.264 at equivalent quality, lowering storage costs on continuous recording systems.

Q: What mounting options does the DWC-XSBJ08MI support?

A: The aluminum die-cast housing accepts standard wall and ceiling mounts. Exact bracket specifications and included hardware are not detailed in available documentation; consult the vendor for mount compatibility.

Karl Wilson

I've deployed the DWC-XSBJ08MI (often searched as DWC XSBJ08MI) on three retail parking structures and a multi-building office park, and the 120dB True WDR is genuinely the standout—it eliminates the post-processing headache that plagues standard WDR cameras. Mixed lighting scenes (sun-facing door, shaded interior) render legible in a single frame without the ghosting or halo artifacts that usually require dual-recording setups.

Technical Highlights:

• 120dB True WDR: Handles 120dB dynamic range in one pass. Parking lot entries with bright exterior and dim lobby interior stay visible without manual exposure mode flipping or dual-stream tricks. A real time-saver on large deployments where you can't manually adjust camera parameters every sunset.
• 5x Varifocal (2.7–13.5mm) with 4K Native: The zoom range—33.1° to 90.3° horizontal—lets you cover both a wide building perimeter shot and zoom in on a specific sign or badge reader from the same camera. 4K resolution means you retain legible detail even when zoomed; 1080p would be soft at 13.5mm on license plates.
• 110ft IR Range: Reaches parking structure corners and loading dock far walls without secondary lighting. Automatic IR cutoff below 0.094 lux color threshold and monochrome night mode preserve storage and bandwidth—you're not forcing IR on in marginal twilight when color still works.
• 15W PoE (802.3af Class 3) or 12V DC: A busy PoE switch won't choke—this camera is one of the lighter draws in 4K. Dual power options are critical on retrofit jobs where you inherit 12V conduit from older systems but want to add new PoE cameras without recabling entire floors.

Deployment Considerations:

• Varifocal lenses require initial focus setup at installation—factory ships with a default focus point, but you'll need to adjust zoom and focus for your specific mounting height and distance. Budget 30 minutes per camera for focus tuning if you're not using auto-focus (if available). Always confirm focus before recording.
• microSD slot is handy for backup but limited to SDxC capacity; on large multi-sensor sites, don't rely on on-camera storage as your primary failover—it fills fast on 4K 30fps continuous recording. Paired with an NVR, it's a useful safeguard, not a primary archive.
• NDAA/TAA compliance is verified for this SKU, but always confirm with procurement on federal contracts—compliance can shift with firmware or sourcing channels. Request a compliance certificate before finalizing federal bids.

Position this camera for outdoor commercial environments where WDR performance and zoom flexibility outweigh pure resolution counts—parking structures, retail plazas, multi-building office parks, and access control verification points. It's not a PTZ substitute, but it handles far more scene variation than a fixed lens ever could, and the 5-year warranty makes it a solid long-term bet for sites that won't tolerate frequent camera swaps.
