Digital Watchdog MEGApix Ai Weatherproof ALPR - DWC-XSBA05LIP

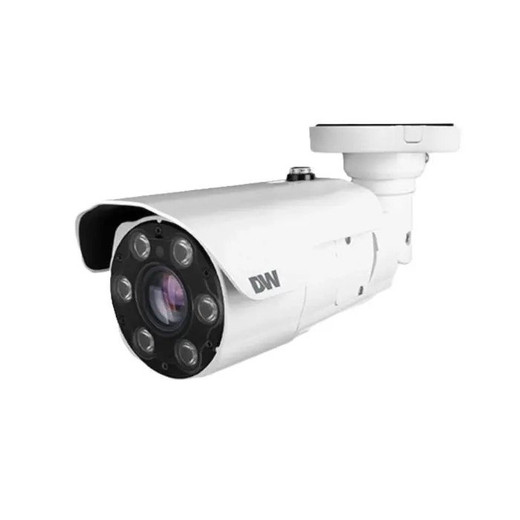

Digital Watchdog DWC-XSBA05LIP Weatherproof ALPR Camera

The Digital Watchdog DWC-XSBA05LIP is a 5MP fixed-bullet ALPR (Automatic License Plate Recognition) camera engineered for perimeter security, parking lot monitoring, and traffic enforcement where plate capture at distance matters. The 8x optical zoom (6–50mm vari-focal, F1.6) and 120dB true WDR give you usable vehicle detail from dawn to dusk without the halo artifacts that plague entry/exit gates in mixed sun. Built on a 1/2.8" CMOS sensor with 2592×1944 active pixels, this is an evidence-grade platform — not a general-purpose dome.

Key Features

• ALPR-optimized optics: The 6–50mm vari-focal P-Iris lens with 8x zoom reaches 23–165 ft in daylight and 23–131 ft at night — the critical spec for readable plates. Adjust the lens once during install and maintain focus across your entire coverage zone without losing iris control to stopping.
• 120dB true WDR: Forensic-grade wide dynamic range eliminates backlit vehicle washout at driveway entries and bright parking lot exits. You get detail in the headlight glare and the dark window interior simultaneously — essential for occupant identification alongside plate capture.
• 130 ft IR range: Built-in 850nm IR floods the scene at night without requiring separate illuminators. At ALPR ranges (up to 131 ft), the IR bleeds into monochrome mode automatically, boosting contrast and lowering noise for reliable OCR.
• H.265 + H.264 + MJPEG codec stack: H.265 cuts storage roughly in half versus H.264 — critical when you're recording 24/7 across dozens of parking spaces. Dual-stream support lets you push full-quality plate frames to analytics while streaming lower-bitrate motion clips to your NVR.
• Smart DNR™ 3D noise reduction: At 0.1 lux (color mode) and 0 lux (B/W with IR), the 3D temporal filter kills speckle in low light without smearing motion. Real-time gain control and 1/32000 shutter speed lock moving vehicles even at 75 mph without roll bars.
• PoE+ powered, NDAA-listed: Draws 14.4W over PoE IEEE 802.3at (48VDC 0.3A) — no separate 12V supplies to route. NDAA Section 889 compliance, UL/CE/FCC certified. Aluminum die-cast IP67/IK10 housing survives direct rain, dust, and 11-joule impacts. Operating range −40°F to 122°F handles seasonal swings without thermal shutdown.

Video Encoding and Edge Capture

Stream up to 30 fps at 100 Kbps–25 Mbps bitrate. The H.265 codec is the leverage point: a 24/7 4-camera ALPR rig at H.264 might consume 2 TB/week; H.265 cuts that to 1 TB. Micro SD/SDHC/SDxC Class 10 card slot (up to 2 TB support, slot accommodates UHS-II) provides local failover if your NVR connection drops during a hit-and-run. Dual-stream architecture lets you send high-resolution plate frames to a standalone ALPR application server while recording motion-triggered clips to your VMS.

Audio, Alarm I/O, and Integration

Single audio input (1.0 Vrms, 3 kΩ) and output support gate-mounted intercoms or alarm tone feedback. One alarm in/out pair integrates with access control systems — use it to trigger barrier gates or alert personnel when a flagged plate is detected. 10/100 Base-T Ethernet over PoE; IPv4 protocol with standard ONVIF compatibility.

Environmental Durability

IP67 rating withstands direct rain and dust; IK10 shock resistance absorbs impacts from vehicle proximity, overhead door mechanisms, and rough-handling transport. Die-cast aluminum housing weighs 2.64 lbs and measures 12.2" × 3.81" — compact enough for eave-mount or pole-mount without structural compromise. Sixteen programmable privacy zones mask sensitive areas (office windows, private driveways) without losing plate detection at the perimeter.

When This Is the Right Choice

Deploy the DWC-XSBA05LIP when you need standalone ALPR at entry/exit points, parking garages, or surface lots where you cannot rely on a second camera for backup. The 8x zoom and optimized F1.6 lens mean you can position the camera farther back (reducing vandalism risk) while still holding readable plates at distance. The PoE+ power budget and SD card slot eliminate infrastructure headaches on retrofit installations.

When to Consider a Different Model

If your deployment is wide-area traffic enforcement (highway corridor, border crossing) or you need 50+ fps for heavy congestion, explore higher-megapixel or multi-sensor variants in the Digital Watchdog ALPR lineup. If you're targeting long-distance nighttime capture beyond 131 ft, external 850nm or white-light IR may be necessary regardless of on-board illuminator range.

Frequently Asked Questions

Q: Is the DWC-XSBA05LIP NDAA Section 889 compliant?

A: Yes. The unit is NDAA-listed and carries NDAA compliance certification, meeting Section 889 restrictions on prohibited equipment and supply chain.

Q: What's the warranty on the DWC-XSBA05LIP?

A: 5-year manufacturer warranty covers defects in materials and workmanship.

Q: What is the maximum distance at which the DWC-XSBA05LIP can read license plates?

A: Daytime ALPR range is 23–165 feet (7–50 meters). Night range drops to 23–131 feet (7–40 meters) due to IR propagation limits.

Q: Can the DWC-XSBA05LIP be powered entirely by PoE?

A: Yes. The camera draws 14.4W via PoE IEEE 802.3at (48VDC 0.3A), so a standard PoE+ injector or managed switch supports it without auxiliary power.

Q: What compression formats does the DWC-XSBA05LIP support?

A: H.265, H.264, and MJPEG with dual-stream capability. H.265 reduces storage requirements by ~50% compared to H.264 at equivalent quality.

Q: Does the DWC-XSBA05LIP have local recording backup?

A: Yes. Micro SD/SDHC/SDxC Class 10 card slot supports failover recording if the NVR connection drops.

Ted Perry

I've spec'd the DWC-XSBA05LIP into a half-dozen parking lot and gate-entry builds, and the optics are the standout. The 6–50mm vari-focal with F1.6 aperture and 8x zoom means you can position it farther from the street (reducing theft risk) and still lock focus across your entire coverage zone at install time — the P-Iris servo adjusts for light changes without hunting. That 120dB true WDR is the second reason I reach for it: backlit entry gates and bright asphalt don't washout the cabin interior, which matters when occupant ID is part of your hit-and-run protocol.

Technical Highlights:

• ALPR plate range 23–165 ft (day), 23–131 ft (night): Readability at distance is enforced by optics and 130 ft IR. At 50 ft you're holding ~120 pixels per plate width in good light — enough for reliable OCR. The night spec accounts for IR scatter; don't expect gray-scale OCR beyond 131 ft even with external fill.
• H.265 dual-stream architecture: Push full-quality 2592×1944 frames to your ALPR engine; stream compressed H.264 motion clips to your NVR. On a 24/7 quad-camera system, H.265 saves roughly 1 TB per week per camera versus H.264 — real math for retention policies.
• PoE+ powered, 14.4W max: Standard 802.3at injector or managed PoE+ switch handles the load. No separate 12V supply to troubleshoot on retrofit jobs. The 2.64 lb aluminum body eases pole-mount rigging.

Deployment Considerations:

• The F1.6 lens and 0.1 lux minimum illumination are strong in dusk/dawn transitions, but true day/night ALPR (especially OCR confidence) still depends on adequate ambient or IR light. Don't rely on this as a 0 lux 24/7 performer without on-camera IR validation in your test footage.
• The micro SD failover slot is a lifeline if your NVR goes offline during a critical incident — but it's local backup only. Integrate the SD card into your forensic recovery workflow, not your primary archival strategy.

This camera is built for parking enforcement operations, lot-entry gates, and loading docks where you need readable plates at fixed points without pan/tilt complexity. The 8x zoom + F1.6 aperture + 120dB WDR combo gives you one-camera simplicity that older fixed-lens ALPR setups required two or three units to achieve.
