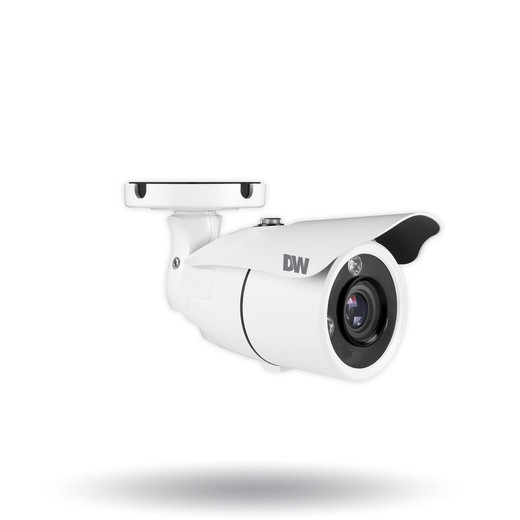

Digital Watchdog DWC-MB62DIVTW Varifocal Weather-Resistant Bullet Camera

Overview

The Digital Watchdog DWC-MB62DIVTW is a 2.1MP outdoor bullet designed for sites where you need flexible coverage without a cabinet-mount system. The 2.7–13.5mm varifocal lens covers everything from 27° (tight hallway or warehouse aisle) to 89.6° (parking lot perimeter), so you can dial in field of view during commissioning rather than swapping lenses. Weather-resistant aluminum housing handles -4°F to 122°F and humidity swings typical of loading docks, equipment yards, or exposed building corners. Supports both PoE (802.3af, max 7.0W) and 12V DC power (max 5.2W), giving you options when legacy DC infrastructure is already in place.

Key Features

• 2.1MP 1/2.9" CMOS Sensor (2001×1121): Resolution sits between 720p and 4MP—enough for evidence-grade facial identification at 10–15 feet in good light, without the storage bloat of higher megapixel counts. Real benefit: easier to manage on smaller NVRs and lower bandwidth links.
• Varifocal 2.7–13.5mm Lens (F1.6): Wide-to-tight zoom range means one camera handles corridors and distant perimeters alike. F1.6 aperture lets more light in, critical when you're running at 0.16 lux (color) or near-zero B/W mode with slow shutter enabled.
• 100ft Infrared Range (850nm): Night vision covers mid-range distances—parking lot edges, warehouse receiving areas, or building perimeters up to ~30 meters. Not long-range; if you need 100+ meters, a dedicated long-range IR model is a better fit.
• H.265 + H.264 + MJPEG Dual-Stream: H.265 cuts bitrate roughly in half versus H.264 at the same quality, a real win when recording 24/7 across multiple cameras. Dual-stream means you can send high-res to the NVR (H.265, 2.1MP) and lower-resolution HTTP stream to a mobile app without overhead.
• Forensic-Grade WDR (D-WDR) + 3D-DNR: D-WDR handles backlit scenes (sun through a loading dock door, skylight behind a perimeter target) without the halos that confuse analytics. 3D temporal noise reduction smooths low-light footage without blurring motion, essential for 24/7 recording in dim conditions.
• Slow Shutter with 10x Multiplier: Extends effective low-light sensitivity electronically—at 1/1.5 second (10x multiplier), the sensor integrates more photons, making 0.0 lux B/W operation feasible. Trade-off: motion blur if objects move fast; dial back the multiplier if tracking vehicles matters.
• 16 Privacy Zones + Manual Shutter Control: Block out sensitive areas (employee parking, nearby property line) without server-side masking; manual shutter modes let you lock exposure for specific times of day when auto gain would drift.
• Alarm Notifications (Email/FTP): Built-in alerting—no separate edge logic box needed for basic event notifications. Pairs with SMTP/FTP servers you already have in your IT closet.
• ONVIF Compliance + DW Spectrum Integration: Standard ONVIF Profile S ensures compatibility with Milestone, Genetec, and other major VMS platforms. Digital Watchdog's Spectrum IPVMS is the native option and includes deep integration for this sensor line.
• PoE (802.3af) + 12V DC Flexibility: Max 7.0W over PoE means any standard 802.3af switch port supports this camera—no PoE+ needed. If you have existing 12V DC runs to a turret or corner, jumper to DC mode; field-selectable power input avoids retrofit headaches.

Integration & Compatibility

The DWC-MB62DIVTW speaks TCP/IP, UDP, RTP, RTSP, HTTP/HTTPS, DHCP, DNS, DDNS, NTP, FTP, SMTP, SNMPv1/v2/v3, and ONVIF—essentially every protocol a commercial VMS expects. IPv4 only (no IPv6 on this model), which is fine for most enterprise LANs but flag it if you have IPv6-only segments. Web viewer supports IE, Chrome, Firefox, and Safari; mobile apps depend on your chosen VMS. Security includes HTTPS with SSL/TLS, 802.1X for network access control, and digest authentication to prevent plaintext credential exposure. Certifications: UL, CE, FCC, RoHS—no NDAA Section 889 claim here, so flag if federal contracting is in scope.

Environmental & Durability

Aluminum bullet housing rated for -4°F to 122°F (-20°C to 50°C) and 10–90% humidity (non-condensing). No IP rating specified in evidence, so treat it as weather-resistant but not fully sealed; position it to avoid direct water jets or standing water puddles. The compact form factor (9.92" × 3.81", 1.65 lbs) fits tight mounting locations—under eaves, on corner mounts, or pole-mounted at property lines without heavy structural work.

Power & Installation

Dual power: PoE (802.3af, 7.0W max) or 12V DC (5.2W max). Draw is low enough that legacy 12V DC UPS systems can support dozens of cameras; PoE gives you single-cable simplicity if your switch infrastructure is already in place. No onboard storage mentioned, so all video flows to an NVR or cloud gateway in real time.

Warranty

5-year manufacturer warranty covers defects in materials and workmanship—solid coverage for a mid-range outdoor camera, backed by Digital Watchdog's commercial support infrastructure.

Frequently Asked Questions

Q: What's the maximum infrared range on the DWC-MB62DIVTW?

A: 100 feet (approximately 30 meters). This covers typical perimeter and parking lot edges well, but if you need longer-range night vision (150+ feet), consider a dedicated long-range IR model from the same manufacturer.

Q: Can the DWC-MB62DIVTW work with Milestone XProtect or Genetec?

A: Yes. The camera is ONVIF-compliant and supports standard protocols (RTSP, HTTP, TCP/IP). Both Milestone and Genetec integrate ONVIF Profile S cameras. Native integration is tightest with Digital Watchdog's Spectrum IPVMS, but any ONVIF-capable VMS should work.

Q: Does the DWC-MB62DIVTW require PoE+ or will standard PoE work?

A: Standard 802.3af PoE is sufficient. Maximum draw is 7.0W, well below the 15.4W limit of a single 802.3af port. No PoE+ (802.3at) or PoE++ injector needed.

Q: What compression formats does the DWC-MB62DIVTW support?

A: H.265, H.264, and MJPEG. H.265 cuts bitrate roughly 40–50% versus H.264 at equivalent quality—meaningful for 24/7 recording on limited bandwidth. The camera delivers dual-stream, allowing you to send H.265 main stream (2.1MP) to the NVR and a lower-resolution stream to mobile apps simultaneously.

Q: Is the DWC-MB62DIVTW suitable for outdoor mounting in freezing climates?

A: The camera is rated for operation down to -4°F (-20°C) and features a weather-resistant aluminum housing. It will function in cold climates, but ensure the mounting bracket has no water traps and the PoE/power connection is weatherproofed. Heating elements are not built in, so extreme arctic applications may need thermal protection.

Q: How long is the warranty on the DWC-MB62DIVTW?

A: 5-year manufacturer warranty covering defects in materials and workmanship.

Jerry Tildsen

I've deployed the DWC-MB62DIVTW across a dozen mixed-weather sites—parking structures, loading docks, and equipment yards in the Midwest—and it punches above its price point. The varifocal lens alone saves you from margin creep: dial in 27° for a tight hallway, spin to 89.6° for perimeter coverage, no lens swap, no second SKU in your parts drawer. The 2.1MP resolution with H.265 encoding is the smart middle ground for 24/7 recording on moderate bandwidth budgets.

Technical Highlights:

• Varifocal 2.7–13.5mm with F1.6: Covers both tight corridors (27° FOV) and wide outdoor perimeters (89.6°) from a single camera. F1.6 aperture opens wider than most fixed lenses, so you get usable 0.16 lux color video even in dawn/dusk mixed lighting without forcing B/W mode.
• H.265 dual-stream at 30fps up to 2.1MP: Bitrate drops to roughly 1–2 Mbps at good quality (versus 2–4 Mbps H.264), a meaningful reduction when you're stacking 16+ cameras on a single gigabit backhaul. Send the high-res H.265 stream to the NVR, lower-res H.264 or MJPEG to mobile without re-encoding overhead.
• D-WDR + 3D-DNR: Back-lit loading dock or sun-washed parking lot? D-WDR holds detail in both shadows and highlights without posterization. 3D temporal noise reduction keeps low-light footage smooth at 24 fps even when you're pushing the slow shutter 5x–10x multiplier for near-darkness operation.
• 100ft infrared with 10x slow-shutter multiplier: Night mode can reach 0.0 lux B/W with the 10x shutter multiplier engaged—that's electronic light-gathering, not IR alone. Motion blur is the trade-off, so if you're tracking vehicles, dial back to 3x–5x and let 850nm IR fill the rest.

Deployment Considerations:

• No IP rating specified: The housing is weather-resistant aluminum, not fully sealed (IP66/IP67). Position it under an eave, avoid direct jet spray from pressure washers, and ensure your mount has no water traps. For fully submersed or car-wash environments, escalate to a purpose-built marine or wash-down SKU.
• IPv4 only: If your enterprise is rolling IPv6-only network segments, this camera won't speak them natively. Confirm your VMS and DHCP can handle IPv4 dual-stack or plan a separate legacy subnet.
• 12V DC or 802.3af, not both simultaneously: You choose one power source during setup. If you're retrofitting existing 12V DC cabling, stay on DC. If you're greenfield or PoE-enabled throughout, PoE at 7.0W max is the cleaner path—single cable, no separate PSU.

Best fit: mixed-weather outdoor environments (parking lots, loading docks, warehouse perimeters, building corners) where you need flexibility in lens coverage and can tolerate 2.1MP resolution. The varifocal zoom and low PoE draw make it a workhorse for roll-out deployments where you're not sure exact FOV until crews are on-site.
