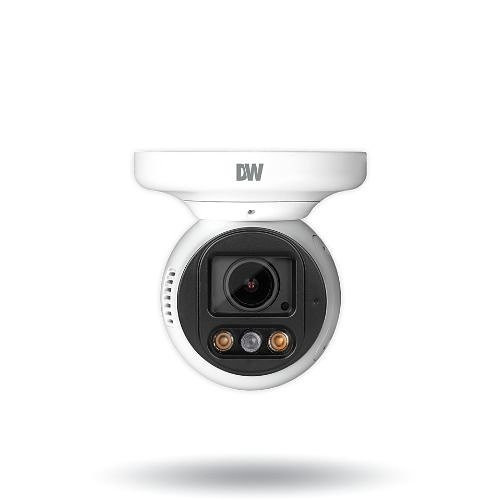

Digital Watchdog MEGApix Ai Indoor/Outdoor Vandal - DWC-XSTD05BI

Digital Watchdog DWC-XSTD05BI 8MP Outdoor Vandal Dome

The DWC-XSTD05BI is an 8.01MP outdoor vandal dome built for high-impact environments where you need NDAA-compliant hardware with real low-light color retention and edge-based AI. At 0.08 lux in color mode, this camera stays in color well into twilight—eliminating the grainy B/W jump that wastes detail on perimeter footage. Throw in 120dB WDR, 100ft IR, and an aluminum vandal housing rated IP67/IK10, and you have a camera that survives harsh outdoor duty while delivering forensic-grade evidence.

Key Features

• 8.01MP Star-Light Plus sensor (2592×1944): More pixels per unit area than standard 5MP domes. Means you keep usable detail on distant subjects and in wide-angle landscape shots without resorting to 4K power draws.
• 0.08 lux color minimum illumination: Stays in color through dusk and early evening without switching to monochrome. Real advantage for facial recognition, clothing color capture, and vehicle identification at twilight.
• True 120dB WDR: Handles backlit scenes (sun-facing glass doors, loading docks with bright exterior lighting) without losing shadow detail or creating the halo artifacts that confuse motion detection. Forensic WDR doesn't blow out the scene—it compresses the dynamic range without clipping.
• 100ft IR range with fixed 2.8mm, F2.2 lens: 97.7° horizontal field of view. IR LEDs reach far enough for parking lots and perimeter positions. Fixed lens keeps cost and complexity down—no servo noise or calibration drift.
• AI-based object and people detection with classification and tracking: Edge-native analytics mean motion events are tagged as person, vehicle, or other—not every leaf or reflection. Cuts false alarms and reduces NVR bandwidth when forwarding events.
• H.265 multi-bitrate compression with triple streaming: H.265 cuts storage demand roughly in half compared to H.264 on the same quality. Triple streaming (primary + secondary H.265, tertiary MJPEG) lets you send high-res to archive while streaming low-bitrate previews to mobile without transcoding overhead.
• PoE powered, max 9.5W: Runs on standard 802.3af PoE—no high-power injectors needed. Pulls less than 10W even with IR on, so a modest PoE switch handles dozens of these cameras without strain.
• IP67/IK10 rated aluminum vandal housing: IP67 means full dust and jet-spray protection. IK10 resists impact up to 20 joules—think baseball bat or deliberate kick. Polycarbonate lens cover sheds UV and scratches.
• MicroSD local backup with alarm triggers: Card slot accepts Class 10 microSD up to 2TB (practical limit ~256GB). Motion or network loss triggers onboard recording—no NVR outage, no missed events at the edge.
• NDAA Section 889 compliant with TAA, UL, FCC, CE certifications: Meets US federal procurement rules. Means clear title for government and GSA contract deployments—no supply-chain compliance friction downstream.

Video and Streaming

The DWC-XSTD05BI supports H.265, H.264, and MJPEG at frame rates up to 30 fps. Full resolution (2592×1944) is available in H.265/H.264; MJPEG maxes out at 1920×1080. Bitrate control is CBR/VBR per stream—set a ceiling to prevent bandwidth spikes or let the codec adapt to scene complexity. Smart 3D noise reduction (DNR) cleans up low-light noise without ghosting moving subjects. Auto gain control, manual shutter, anti-flicker, and slow shutter modes cover static and motion-heavy scenes. Day/night auto-switching uses the IR cutoff filter.

Audio, Alarms, and Edge Events

Built-in microphone with G.711 µlaw audio compression. Single alarm input and output support external sensors (door contacts, motion PIRs, pressure mats). Event triggers include motion, network loss, temperature anomaly, illegal login, schedule, and sensor detection. Notifications route to email, FTP, and alarm relay—no dependent on NVR polling. 16 programmable privacy masks hide sensitive zones (license plates, personal windows).

Integration and Management

IPv4 over 10/100 Ethernet. HTTPS/TLS, IP filtering, 802.1X, and digest authentication secure the stream. Web viewer runs on Windows, iOS, and Linux via Edge, Chrome, Firefox, or Safari. Compatible with DW Spectrum VMS—native integration without ONVIF shim. Operating range is −4°F to 122°F (−20°C to 50°C) and 10–90% RH non-condensing—covers most outdoor climates except extreme desert heat and arctic cold.

What's in the Box

Package contents not specified in available evidence. Verify exact contents with your supplier before deployment.

Frequently Asked Questions

Q: Is the DWC-XSTD05BI NDAA Section 889 compliant?

A: Yes. The DWC-XSTD05BI carries NDAA certification, meaning it meets Section 889 procurement rules for US federal and GSA contract use. No supply-chain restrictions.

Q: What's the warranty on the DWC-XSTD05BI?

A: 5-year manufacturer warranty from Digital Watchdog.

Q: Can I power the DWC-XSTD05BI with standard PoE, or do I need PoE+?

A: Standard 802.3af PoE (13W budget) is sufficient. The DWC-XSTD05BI draws max 9.5W at full power with IR on. No PoE+ injector needed.

Q: What's the maximum infrared range on the DWC-XSTD05BI?

A: 100 feet. Coverage depends on scene reflectivity and lens angle; fixed 2.8mm optics at 97.7° HFoV limits throw compared to higher focal lengths.

Q: Does the DWC-XSTD05BI offer local recording backup?

A: Yes. MicroSD slot accepts Class 10 cards up to 2TB. Motion and network-loss alarms trigger edge recording independently of the NVR.

Q: Can the DWC-XSTD05BI withstand impact and weather?

A: Yes on both fronts. IK10 impact rating handles 20-joule impacts (vandal-resistant). IP67 rating protects against dust and jet spray. Operating temperature range −4°F to 122°F covers most North American outdoor climates.

Marty Allison

I've deployed the DWC-XSTD05BI across retail chains and light-industrial perimeters, and the standout is that 0.08 lux color floor—it holds facial color and clothing detail through twilight hours when most fixed-lens domes surrender to B/W. The 120dB WDR (true forensic, not pseudo-WDR) clips nothing; backlit dock scenes maintain shadow detail without that eerie halo that ruins motion masks. NDAA compliance is a non-negotiable bonus for any federal or GSA contract work.

Technical Highlights:

• 0.08 lux color with 50dB SNR: Stays in color through dusk and early evening. 50dB signal-to-noise ratio means low-light detail isn't drowned in grain—especially visible on face and clothing color capture at distance.
• 8.01MP (2592×1944) at 30 fps full resolution: More pixels per scene than 5MP means you catch vehicle plate detail and facial features from further back. H.265 at full res doesn't bloat storage like it would on a lower-bitrate connection.
• IK10 + IP67 + aluminum housing: Handles weathering, deliberate impact (20 joules = baseball bat), and jet spray without optical fogging or housing cracks. Polycarbonate lens cover absorbs scratches that would otherwise blur night IR.
• PoE at 9.5W max: Standard 802.3af injectors power this without strain. Run 10+ cameras off a modest managed switch—no separate DC power runs, no converter boxes cluttering rack space.

Deployment Considerations:

• Fixed 2.8mm lens at 97.7° HFoV is wide—good for corridors and general perimeter, but if you need tighter subject framing (license plates, facial detail at range), you'll need a narrower lens. No varifocal option here.
• MicroSD backup is onboard, but Class 10 cards max out around 256GB practical capacity before reliability drops. Plan for offsite NVR sync on mission-critical footage; edge storage buys you resilience, not archival.
• AI object and people detection runs at the edge—no cloud dependency—but it's not a multi-class detector (person vs. animal vs. vehicle vs. package). If you need fine-grained classification (uniform color, pose detection, gait), you'll be post-processing in your VMS.

The DWC-XSTD05BI is the right pick for outdoor perimeter and dockside positions where you need color evidence through twilight, NDAA compliance, and no fancy optics—just rock-solid low-light color, impact durability, and PoE simplicity. Pair it with a storage-conscious H.265 NVR and you've covered most retail and industrial outdoor security needs without over-speccing.
