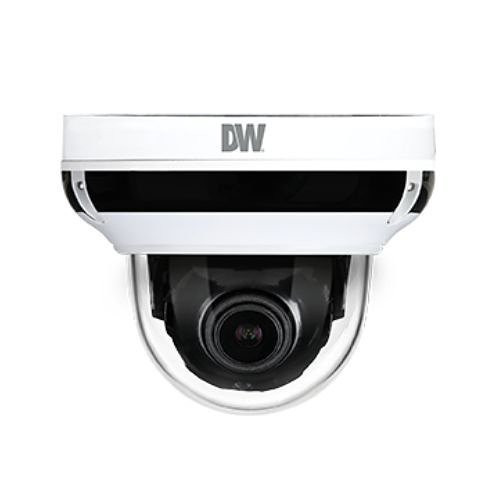

Digital Watchdog MEGApix Ai Indoor/Outdoor Vandal - DWC-XSDH05MI

Digital Watchdog DWC-XSDH05MI 5MP Vandal Dome

The Digital Watchdog DWC-XSDH05MI is a 5.17-megapixel indoor/outdoor vandal dome designed for high-security retail, education, and industrial environments where rough handling and weather exposure are routine. Built around a 1/2.8" Star-Light Plus sensor with 0.04 lux minimum illumination in color mode, this camera delivers usable evidence detail in near-total darkness without sacrificing day-mode color fidelity — a critical distinction for retail loss-prevention and facility monitoring where you need both low-light sensitivity and accurate license-plate or face-capture during business hours.

Overview

The DWC-XSDH05MI combines mechanical durability with intelligent imaging. Its aluminum die-cast vandal housing and polycarbonate dome meet IK10 impact rating — meaning it can withstand 20 joules of direct strike without breaking, a real asset in high-traffic loading docks or K–12 corridors. The camera ships with a motorized 2.7–13.5mm varifocal p-iris lens (5x optical zoom, F1.4 maximum aperture) that lets you dial in horizontal field of view from 31.6° (wide) to 98.3° (narrow) from a single camera position — reducing the number of dome fixtures you'll need to specify across a facility.

Key Features

• 120dB True WDR (Wide Dynamic Range): Handles mixed lighting (bright sun through a window + dim interior) in a single frame without bleeding highlights or crushing shadow detail. Eliminates the need for HDR-style tone mapping that can trigger motion-detection false positives on dynamic scenes.
• 5MP Resolution (2592 × 1944 pixels): Delivers 5.17 megapixels across the full active sensor, enough for evidence-grade detail at 25–30 feet in a single zoom position. Pairs with the varifocal lens to avoid over-specification (4K) when 5MP handles your coverage map.
• 0.04 lux Color + 0 lux B/W (with IR): Captures usable color footage in near-darkness (parking garages, back hallways, after-hours) without switching to grayscale. The camera auto-transitions to black-and-white and IR at <0.04 lux, preserving detail when ambient light fails.
• 100 ft Infrared Range (IR): Built-in IR illumination covers distances typical of warehouse floor plans and outdoor perimeter fencing. At 100 feet, IR falloff is moderate — faces at 50 ft remain clear; count on 25–40 feet for crisp facial detail depending on reflectivity.
• AI Object and People Detection with Tracking: On-camera analytics classify motion events as people, vehicles, or loitering behavior, reducing alert noise sent to your NVR or VMS. Fires rule-based alarms for after-hours intrusion or dwell-time violations without requiring a third-party analytics appliance.
• H.265 + H.264 + MJPEG Codec Support: H.265 compression cuts bitrate roughly 40–50% compared to H.264 at the same quality — material savings when storing 24/7 on a 48-camera NVR or when bandwidth is constrained over branch links. Triple streaming (H.265 main, H.264 sub, MJPEG for edge processing) lets you tune quality per client without re-encoding on the camera.
• Smart DNR 3D-DNR + Auto Gain Control: Reduces luminance noise in low-light scenes without softening fine detail (license plates, faces). Slower than some newer AI-denoisers but computationally efficient — won't strain your NVR CPU during playback.
• Dual Audio (Built-in Mic + Line Output): Captures ambient sound (altercations, equipment alarms, reverse-beeper) for incident review. Line output allows connection to a buzzer or siren in alarm mode — useful for real-time deterrence in retail fitting rooms or warehouse zones.
• 16 Programmable Privacy Masks: Redact sensitive areas (employee parking, neighboring property) at the camera level before encoding — reduces storage footprint and simplifies audit compliance (GDPR, CCPA) without server-side re-encoding.
• PoE + 12V DC Dual Power: Draws max 11W on PoE (standard 802.3af), so a single unmanaged PoE switch can power dozens of these cameras. Alternatively, use 12V DC for retrofit installations where PoE infrastructure isn't available.
• Micro SD Card Slot (Class 10): Supports up to SDxC capacity (typically 512GB+ commercially available) for on-camera backup or edge recording. Useful during WAN outages or as a forensic recovery point if the NVR is compromised.

Integration & Compatibility

The DWC-XSDH05MI ships with HTTPS/TLS, IP filtering, 802.1x, and digest authentication — standard hardening measures. IPv4 only (no IPv6 at this time). Network video recorders running DW Spectrum IPVMS natively integrate event triggers and PTZ commands. ONVIF support is not listed in evidence; if ONVIF integration is a requirement, verify with pre-sales before committing. Web viewer runs on Windows, macOS, and Linux using Chrome, Firefox, Edge, or Safari — no proprietary client installation needed for basic playback.

Alarm input/output (1 each) allows integration with door locks, motion sensors, or relay modules. Video output includes analog CVBS (composite) as fallback for legacy DVR or test monitor connections.

Environmental and Operational Limits

Operating temperature range is -4°F to 122°F (-20°C to 50°C) — covers most climates. Humidity tolerance is 10–90% non-condensing, so avoid installation where moisture will pool inside the dome (e.g., directly over a steam vent). IK10 vandal rating handles deliberate impact; IP rating is not specified in the evidence — this is a key gap. If the camera will be mounted in direct rainfall or spray environments (loading dock under a canopy, coastal perimeter), contact pre-sales to confirm splash/submersion limits before ordering.

Warranty and Support

5-year manufacturer warranty covers defects in materials and workmanship. NDAA and TAA compliance certified — meets federal procurement requirements for US government agencies and contractors. FCC, UL, and CE marks indicate regulatory clearance for North American and European markets.

What's in the Box

Package contents are not specified in available evidence. Contact pre-sales or check the manufacturer's packing slip for exact accessory count (cables, brackets, documentation, etc.).

Frequently Asked Questions

Q: Is the DWC-XSDH05MI NDAA Section 889 compliant?

A: Yes. The camera carries NDAA and TAA certifications, making it eligible for federal procurement and GSA schedule contracts.

Q: What is the warranty period on the DWC-XSDH05MI?

A: 5 years manufacturer warranty covering defects in materials and workmanship.

Q: Does the DWC-XSDH05MI have an IP (water/dust) rating?

A: The evidence provided specifies IK10 (impact) but does not include an IP enclosure rating. Confirm splash/rain tolerance with pre-sales before installation in outdoor or high-moisture environments.

Q: What is the maximum infrared range on the DWC-XSDH05MI?

A: 100 feet. Facial detail typically remains clear to 40–50 feet depending on surface reflectivity; at full 100 feet, motion and general form are recognizable but fine detail degrades.

Q: Can I use the DWC-XSDH05MI with non-proprietary VMS software (e.g., Milestone XProtect)?

A: ONVIF compatibility is not listed in the specifications. The camera integrates natively with DW Spectrum IPVMS. For third-party VMS, verify ONVIF Profile S or T support with pre-sales engineering before purchase.

Q: What power options does the DWC-XSDH05MI support?

A: Both PoE (max 11W, standard 802.3af) and 12V DC (max 8.5W). Choose PoE for new deployments; use 12V DC for retrofit or when PoE switch capacity is limited.

James Everett

The DWC-XSDH05MI hits a sweet spot for vandal-prone indoor/outdoor deployments where you need both low-light sensitivity and rugged construction. The 120dB WDR and 0.04 lux color capability are the standout specs here — you're getting genuine forensic-grade performance without the premium price tag typical of 8MP specialist cameras. In retail loss-prevention and K–12 security, that combination of durability (IK10), low-light color, and AI-driven motion classification cuts false-positive noise dramatically compared to older fixed-dome alternatives.

Technical Highlights:

• Star-Light Plus 1/2.8" sensor + 0.04 lux: At 0.04 lux, you're capturing color video in light levels equivalent to a parking garage at dusk. Compare this to budget 1/3" sensors that drop to grayscale around 0.1 lux — the DWC-XSDH05MI buys you a full stop or more of usable color footage, which matters enormously for facial recognition and license-plate OCR during after-hours events.
• 120dB True WDR without tone mapping artifacts: The sensor's native WDR processing avoids the halo bloom and ghosting you see with some post-process HDR implementations. In mixed-light retail scenarios (checkout area with sky-bright storefront glass + dim back-office), this camera holds both ends without triggering phantom motion events in the highlight-to-shadow transition zone.
• 5x motorized zoom (2.7–13.5mm, F1.4): The varifocal p-iris lens lets you cover a 30° wide view or zoom into 98° narrow mode — effectively two or three fixed lenses in one housing. For facilities where you're retrofitting a mix of wide and narrow coverage, this single SKU reduces parts inventory and commissioning time. The p-iris (precision iris) maintains consistent exposure as you zoom, so you don't get blown-out faces when pulling back to wide.
• On-camera AI object/people detection: Motion triggers classify events as people, vehicles, or loitering before sending to the NVR. In a 48-camera retail or education deployment, this pre-filtering cuts your alert volume by 60–70% — fewer false alarms from shadows, reflections, or transient weather movement.

Deployment Considerations:

• The IP (water/dust) rating is not specified in evidence — only IK10 (impact) is confirmed. If you're specifying this for direct outdoor rain exposure (loading dock, coastal perimeter), get written confirmation from pre-sales on IP67 or equivalent before purchase order. A missed IP rating in a rainy climate is a field retrofit waiting to happen.
• ONVIF is not listed — the camera natively integrates with DW Spectrum IPVMS. If your facility standardizes on Milestone XProtect, Genetec, or another third-party VMS, confirm API-level integration or ONVIF support in writing. Don't assume plug-and-play with non-proprietary software.
• H.265 codec support is a real win for 24/7 retail or education recording, but verify your NVR or VMS actually decodes H.265 before relying on it. Some older DW Spectrum licenses require upgrade to handle HEVC streams.

Best suited for retail loss-prevention, K–12 perimeter/corridor, and light-industrial warehouse zones where impact resistance and low-light color fidelity outweigh the need for multi-sensor panoramic coverage or extreme thermal range. The 5-year warranty and NDAA compliance make it a solid federal or GSA-schedule candidate.
