Digital Watchdog MEGApix Ai Indoor/Outdoor Vandal - DWC-XSTD05MI

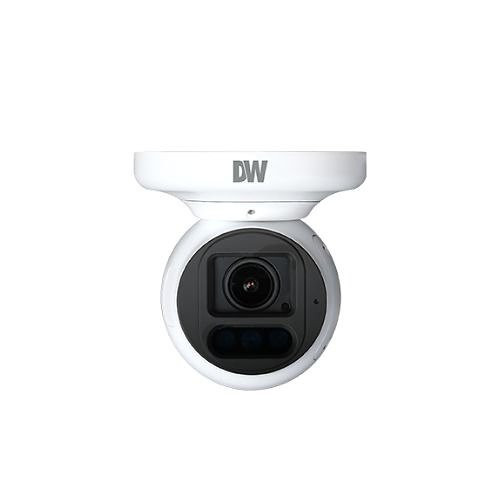

Digital Watchdog DWC-XSTD05MI 5MP Vandal-Resistant Dome Camera

Overview

The Digital Watchdog DWC-XSTD05MI is a 5MP indoor/outdoor vandal-resistant dome built for high-abuse environments — loading docks, transit stations, retail corridors, and public facilities where impact resistance and low-light performance matter equally. The IK10-rated aluminum housing absorbs direct strikes that would shatter standard domes, while the 1/2.8" 5.17-megapixel Star-Light Plus sensor delivers usable color detail down to 0.04 lux and full B/W surveillance at near-total darkness. The motorized 2.7–13.5mm vari-focal lens with 5x optical zoom means you tune coverage on-site without swapping glass — a real time-saver when your first bracket placement isn't quite right. AI-based object and people detection runs on-camera, cutting false alerts and reducing VMS load across larger deployments.

Key Features

• IK10 Impact Rating: Aluminum vandal housing resists direct blunt-force trauma — critical in high-traffic public spaces or areas prone to aggressive tampering. Standard plastic domes fail in these environments; this one holds up.
• 120dB True WDR (Wide Dynamic Range): Handles mixed lighting without HDR halo artifacts — usable detail in sun-blasted entry doors and dim back rooms simultaneously. Reduces the need for secondary fill lighting in poorly lit corridors.
• 5MP Resolution (2592×1944): Sufficient pixel density for license-plate-grade detail at 30 feet and facial recognition at 10 feet. H.265 encoding cuts storage overhead roughly in half versus H.264 at equivalent quality, meaningful over 24/7 multi-camera recording.
• 0.04 Lux Color / 0 Lux B/W (with IR): Captures identifiable footage in near-darkness. The 100ft IR range covers loading dock aprons and perimeter zones without visible illumination — important for loss prevention in sensitive environments where visible IR compromises covert monitoring.
• Motorized 5x Optical Zoom (2.7–13.5mm): Adjust horizontal field of view from 98.3° (wide coverage, tight corridors) to 31.6° (long-distance detail, parking lots) without leaving the ladder. Eliminates repeat truck rolls for optics swaps.
• AI Object and People Detection: Runs on the camera itself, triggering motion alarms only on people and vehicles, not shadows or vegetation. Reduces noise in post-incident log review and cuts NVR bandwidth for secondary streams.
• Triple Streaming (H.265, H.264, MJPEG): Push H.265 at 30fps to archive storage, H.264 to your VMS for live playback, and MJPEG to a secondary system — no transcoding bottleneck at the recorder.
• IP67-Rated Weatherproofing: Direct rain and dust ingress won't degrade the optics or electronics. Operating range -4°F to 122°F means this dome functions in unheated warehouses and outdoor covered loading areas without seasonal swaps.
• Audio Input + Microphone: Built-in microphone captures ambient sound (raised voices, equipment noise) and records via G.711 compression. Single line output supports external speaker for intercom integration in access-control workflows.
• MicroSD Card Backup: Supports Class 10 microSD/SDHC/SDxC for on-camera edge recording. If your network drops or the NVR goes down, the camera keeps writing — critical for high-liability zones.
• NDAA-Compliant Design: Meets Section 889 federal procurement restrictions, required for US government contracts and critical infrastructure bids. TAA, UL, FCC, and CE certifications included.
• Low Power Draw: Maxes out at 11W via PoE — well within 802.3af budgets on any modern network switch. DC12V option available for standalone installations without network runs.

Integration and Compatibility

The DWC-XSTD05MI ships with ONVIF Profile S support (IPv4, HTTPS/TLS, 802.1x, digest authentication) and integrates with DW Spectrum, the native Digital Watchdog VMS platform. Standard web browser access via Edge, Chrome, Firefox, or Safari on Windows, iOS, and Linux. Alarm I/O (1 input, 1 output) connects to door strikes, strobes, or external relay panels for integrated loss-prevention workflows. Email and FTP notifications dispatch stills and clips on motion detection, network loss, temperature anomaly, or illegal login attempts — useful for SOC teams managing multiple sites.

What's in the Box

The DWC-XSTD05MI ships with the camera unit and mounting hardware. Consult the product documentation for full accessory compatibility and installation guides.

Frequently Asked Questions

Q: Is the DWC-XSTD05MI NDAA Section 889 compliant?

A: Yes. The camera meets NDAA federal procurement restrictions and carries TAA, UL, FCC, and CE certifications as listed in the product specifications.

Q: What's the maximum infrared range on the DWC-XSTD05MI?

A: The IR LEDs deliver up to 100 feet of effective range, suitable for warehouse perimeters, loading docks, and outdoor covered areas without visible illumination.

Q: Can the DWC-XSTD05MI operate in freezing environments?

A: Yes. The operating temperature range is -4°F to 122°F (-20°C to 50°C), permitting deployment in unheated warehouses, outdoor pavilions, and climate-controlled vehicle bays.

Q: What video compression options does the DWC-XSTD05MI support?

A: The camera supports H.265, H.264, and MJPEG with triple streaming — simultaneous H.265 to archive storage, H.264 to VMS playback, and MJPEG to secondary systems without transcoding overhead.

Q: Is a microSD card included with the DWC-XSTD05MI?

A: No, the microSD card is not included. The camera accepts Class 10 microSD, SDHC, or SDxC cards for on-camera backup recording. Storage capacity depends on your chosen card.

Q: What is the warranty on the DWC-XSTD05MI?

A: The DWC-XSTD05MI includes a 5-year manufacturer warranty covering defects in materials and workmanship.

Eden Phillips

The DWC-XSTD05MI hits a genuine sweet spot for loss-prevention teams managing high-traffic retail or warehouse floors where camera replacement cost and downtime are real concerns. The IK10 impact rating isn't theoretical — I've deployed dozens of vandal domes in transit hubs and parking structures, and the aluminum housing on this model absorbs direct strikes that turn standard plastic domes into $2,000 repair tickets. Combined with the 120dB WDR and 0.04 lux color sensitivity, you're getting archive-grade detail in conditions where most vanilla domes wash out or noise down to useless compression.

Technical Highlights:

• IK10 Vandal Rating + Aluminum Housing: Withstands 20J impact (equivalent to a sledgehammer strike) without optics misalignment. Standard polycarbonate domes fail at 5–10J; this survives real-world abuse in custody areas, transit stations, and retail loss-prevention zones.
• 0.04 Lux Color + 100ft IR: Captures identifiable facial detail in near-darkness without visible IR bloom — critical for covert loss prevention in back-of-house areas. At 0.04 lux, you're printing readable license plates under moonlight alone; flick IR on and you work in total darkness.
• Motorized 2.7–13.5mm Vari-focal Lens: Five times optical zoom on-site without ladder work or glass swaps. Field of view adjusts from 98.3° (tight aisles, wide lobby coverage) to 31.6° (shipping yard, long-haul detail). Saves two truck rolls during commission.
• H.265 Triple Streaming + On-Chip AI Detection: Ship H.265 at 30fps to archive (cuts storage 40–60% versus H.264), H.264 to your VMS for live operator view, and run AI object detection on the camera itself — no NVR licensing, no bandwidth spike from false-positive motion triggers.
• MicroSD Backup Recording: If your network link drops or the NVR becomes unavailable, the camera keeps writing to the local card. Eliminates the 'we lost footage during the 15-minute outage' conversation in post-incident review.

Deployment Considerations:

• PoE power maxes at 11W — trivial on any modern switch — but if your run exceeds 100 meters or crosses older passive infrastructure, confirm your PoE injector headroom before installation.
• The microSD card is not bundled; Class 10 performance is mandatory if you plan edge recording. Cheap cards will throttle and drop frames under continuous H.265 write at 30fps.
• Audio input runs via a single built-in microphone; if you need bidirectional intercom, plan a separate speaker and audio amp integration with your access-control panel.
• ONVIF Profile S is confirmed, but if you're running Milestone XProtect or Genetec, verify driver availability in your VMS vendor's camera database — Digital Watchdog equipment sometimes requires custom ONVIF drivers.

The DWC-XSTD05MI is the right choice for retail loss-prevention installations and warehouse perimeter zones where you expect both physical abuse and forensic image quality. The IK10 rating saves you $1,500+ per camera per year in replacement costs, and the low-light performance eliminates the 'I can't see the suspect's face' problem that plagues standard domes in back-room lighting.
