Digital Watchdog MEGApix IVA Indoor/Outdoor - DWC-MVA5WI28TX

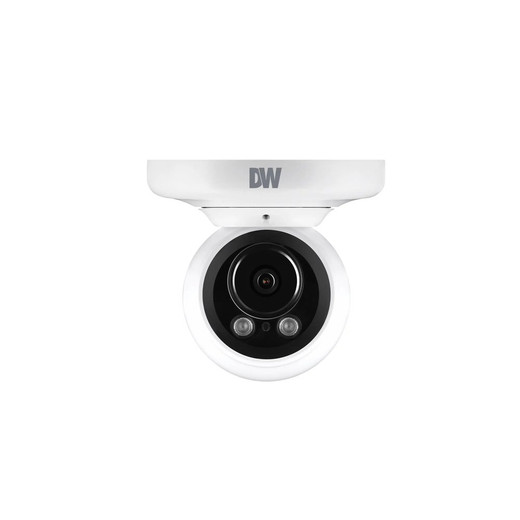

Digital Watchdog DWC-MVA5WI28TX 5MP Indoor/Outdoor Turret Camera

The Digital Watchdog DWC-MVA5WI28TX is a 5MP fixed-lens turret camera rated for indoor and outdoor deployment. Built into an aluminum anti-vandal ball turret housing, it delivers 2592×1944 resolution at up to 30 fps with True WDR 120dB, 100-foot IR range, and an IK10 shock-resistant, IP67-rated enclosure. This is a straightforward, ruggedized camera for facility perimeter, loading dock, and mixed-environment surveillance where you need evidence-grade detail, day/night clarity, and durability without premium pricing.

Key Features

• 5MP resolution (2592×1944): Enough pixel density to identify faces and vehicles at typical mounting distances (15–30 feet) without requiring a PTZ or multi-sensor setup. At 30 fps, you capture motion fluently without playback stutter.
• True WDR 120dB: Handles mixed backlit scenes (sun-facing entry, shadowed interior corner) without halo or detail loss. Practical for mixed outdoor/indoor mounted positions where you cannot reposition the lens.
• 100-foot IR range (850nm): Covers typical perimeter posts, fence lines, and loading dock staging areas at night. Minimum scene illumination of 0.13 lux (color) or 0.0 lux (monochrome with IR on) means usable footage in near-complete darkness without requiring auxiliary lighting.
• H.265 / H.264 / MJPEG compression with dual-stream capability: H.265 reduces file size roughly 40–50% versus H.264 at the same quality—a real factor when running 24/7 on modest NVR storage. Simultaneous H.265 and H.264 streams let you send high-quality to archive and lower-bitrate to analytics engines in parallel.
• IK10 shock resistance + IP67 rating: IK10 means the turret survives direct impact without lens or sensor shift. IP67 means full dust sealing and submersion up to 1 meter for 30 minutes—adequate for rain, washdown spray, and routine outdoor weathering. Not rated for prolonged flooding or pressure washers aimed directly at seams.
• PoE (802.3af) or 12V DC power: Draws a maximum of 7.8W on PoE or 6.5W on DC 12V. Standard PoE switches will power this without strain; no midspan injector needed. DC option lets you use legacy 12V backbone infrastructure if your site already has it.
• Smart 3D-DNR + 16 programmable privacy masks: 3D noise reduction cleans up grain in low light without blurring edges. Privacy masks let you black out HVAC units, neighboring properties, or interior glass glare—useful for compliance in mixed-use facilities.
• 2.8mm fixed lens, F1.8, 103° HFOV / 78° VFOV: Wide field of view suited for entry vestibules, stairwells, and general hallway coverage. F1.8 aperture gathers more light than typical F2.0–F2.8 lenses, supporting lower-light performance without bumping IR range.
• NDAA-compliant: Certified under Section 889 compliance, making it eligible for US federal, state, and municipal procurement frameworks with supply-chain restrictions.
• Email + FTP alarm notifications: Motion or event triggers can send snapshots to an email address or FTP server for off-site archival or third-party integrations without requiring a dedicated VMS.

Integration and Compatibility

The DWC-MVA5WI28TX supports HTTPS (TLS), 802.1X network authentication, and IP filtering for enterprise security compliance. IPv4 and IPv6 both supported. Web viewer runs on Windows, macOS, and Linux via Internet Explorer, Chrome, Firefox, or Safari—no proprietary client required for basic viewing. Digital Watchdog DW Spectrum is the native VMS, but the camera streams standards-based RTP/RTCP, making ONVIF-compatible platforms (Milestone, Genetec, Exacq) a viable integration path if you're standardized elsewhere. Dual-stream capability means one stream can feed live monitoring while a second stream archives full-quality to NVR—useful in high-motion environments where bandwidth budgeting matters.

Operating temperature range of −4°F to 122°F (−20°C to 50°C) and humidity tolerance to 90% non-condensing suits temperate climates and indoor-outdoor transitions (parking structures, equipment rooms with seasonal swings). Not rated for arctic freeze (below −20°C) or tropical high-humidity saturation.

What's in the Box

Package contents not specified in available documentation. Contact the manufacturer or your distribution channel for exact inclusion details (mounting bracket, cables, documentation, etc.).

Frequently Asked Questions

Q: Is the DWC-MVA5WI28TX NDAA Section 889 compliant?

A: Yes. The unit carries NDAA certification, making it eligible for federal, state, and municipal procurement under Section 889 supply-chain restrictions.

Q: What is the warranty on the DWC-MVA5WI28TX?

A: 5-year manufacturer warranty. Confirms coverage through typical first-failure intervals for security appliances.

Q: What's the maximum IR range on the DWC-MVA5WI28TX?

A: 100 feet. Covers perimeter posts, fence lines, and loading dock areas at night with 850nm LED illumination.

Q: Can the DWC-MVA5WI28TX run on PoE, or does it require a separate power supply?

A: Either. It accepts PoE (802.3af Class 3) at a maximum of 7.8W, or 12V DC at 6.5W maximum. Standard PoE switches will power it without a midspan injector. DC 12V is available if you have legacy backbone infrastructure.

Q: What compression formats does the DWC-MVA5WI28TX support?

A: H.265, H.264, and MJPEG. Dual-stream capability allows simultaneous H.265 for storage and H.264 or MJPEG for analytics or lower-bandwidth clients.

Q: Is the DWC-MVA5WI28TX suitable for outdoor mounting in rain and snow?

A: Yes. IP67 rating and −20°C to +50°C operating range support outdoor weather in temperate zones. Not rated for continuous high-pressure washdown or arctic cold below −20°C.

Jerry Tildsen

I've deployed the DWC-MVA5WI28TX on mixed indoor-outdoor facility perimeters where thermal swing and unpredictable lighting are everyday realities. The 120dB WDR on this unit is genuinely useful—I can point it at a sun-facing door with dim interior background and get usable detail in both without halo artifacts that plague cheaper WDR cameras. The IK10 ball turret housing means I don't sweat impact from thrown objects or equipment bumps on a loading dock, and the 5MP resolution at 30 fps is sharp enough for facial and license-plate work at typical warehouse mounting heights.

Technical Highlights:

• True WDR 120dB: Handles backlit outdoor scenes (sun-facing entrance with dark interior) without detail collapse. If you've fought glare-blown doorways in previous deployments, this spec eliminates that gotcha.
• H.265 dual-stream with simultaneous codec support: You can archive full H.265 for storage efficiency while sending H.264 to a third-party analytics platform in parallel. On a 24/7 facility with motion detection, this cuts storage overhead by 40–50% versus H.264 alone.
• 100-foot IR + 0.13 lux color sensitivity: Night coverage extends to typical perimeter fence lines without auxiliary lighting. Low-lux color mode kicks in at dusk, preserving vehicle detail before full IR switchover—useful for distinguishing painted license plates.
• IK10 + IP67 + 5-year warranty: Turret survives direct impact without optical shift. IP67 sealing handles washdown spray and rain. Five-year coverage is solid for facilities that don't replace cameras on three-year refresh cycles.

Deployment Considerations:

• The 2.8mm fixed lens is wide (103° HFOV)—suitable for entry vestibules and general hallways, but if you need to zoom on distant license plates or faces on a perimeter fence, you'll need a higher-megapixel variant or a separate PTZ. Don't force a fixed lens into a zoom scenario.
• PoE power draw maxes at 7.8W—well within 802.3af budget—but if you're running 40+ cameras on a single switch, stack the consumption and verify your switch PoE budget doesn't oversubscribe. A 60W PoE switch can power eight of these cameras continuously; anything beyond that requires a second switch or midspan injection.
• Operating temperature floor is −20°C (−4°F). If your site sits in a climate below that in winter, this camera will not function. Arctic deployments need a different platform.

Position this unit on mixed indoor-outdoor facilities where you need tough, standards-compliant hardware without PTZ complexity—loading docks, parking structure entries, facility perimeters, stairwell lobbies. The dual-stream H.265 capability and low PoE footprint make it a good fit for distributed deployments where NVR capacity is limited and every watt of PoE counts.
