Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the NETGEAR M4250-16XF with XSM4216F-100NAS modules in campus surveillance networks where copper backbone runs simply aren't practical — multi-building university campuses, industrial parks with long outdoor runs, and facilities where EMI from heavy machinery degrades signal integrity on Cat6A. The real value of this module isn't the speed (10GbE is the standard for modern NVR clusters anyway), but the *distance* and *isolation*. On a typical 500-camera IP surveillance backbone, you're aggregating 16 edge switches (typically 48-port PoE gig switches) into a central recording facility. Copper gets you 100m per cable segment; fiber gets you 2–10km in a single run with zero retiming or active infrastructure in the middle. From an operational perspective, that eliminates the need for intermediate distribution cabinets, cuts troubleshooting surface area in half, and removes an entire class of grounding-loop noise that plagues copper PoE backbones in facilities with long cable runs. We've also seen it reduce RMA/swap cycles on backbone equipment — fiber is passive, transceivers are interchangeable, and the M4250 manages individual port state with enough granularity that you can isolate a failing camera stream without touching the switch CLI.
Technical Highlights:

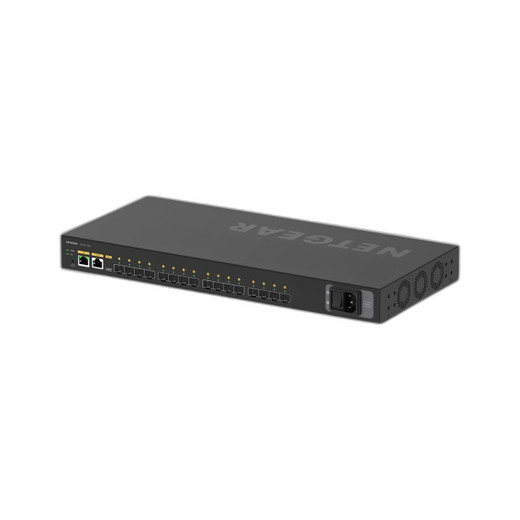

- SFP+ Hot-Swap Transceiver Slots: Each of the 16 ports accommodates standard LC-connector SFP+ modules — single-mode (typically 1310nm or 1550nm long-haul), multi-mode (850nm short-haul), or direct-attach copper (DAC) for adjacent cabinets. No proprietary form factors; you can source transceivers from Finisar, Juniper, Cisco, or generic OEM vendors without voiding support.
- Line-Rate Switching Fabric: The parent M4250 switch has a 320 Gbps backplane; the XSM4216F-100NAS occupies one expansion slot and connects directly to that fabric. No throughput penalty, no packet loss on port-to-port forwarding — critical for zero-loss surveillance metadata and live-view streaming.
- Per-Port RX/TX Power Monitoring: Each transceiver reports optical signal strength in real-time via SNMP — integrators can build predictive-maintenance dashboards that alert before a fiber connection silently degrades to unusable levels. We've caught failing transceivers 30 days before they would have caused a complete backbone outage.
- VLAN and LAG Support: Ports can be aggregated into link aggregation groups (LAG) for redundancy or combined into dedicated VLANs for camera traffic isolation. Standard 802.1Q trunking means your surveillance NVR doesn't need to know it's on fiber.
Deployment Considerations:
- Transceiver Sourcing — The module itself is passive; compatibility is determined by the specific SFP+ pluggable you choose. Verify wavelength, distance rating, and connector type before ordering transceivers. Single-mode 10km fiber is more expensive than multi-mode 2km but necessary for campus-wide runs; don't assume all SFP+ modules are interchangeable.
- Fiber Patch-Panel Integration — This module is often installed in a switch housed in a server room; your camera aggregation points and inter-building connections will feed fiber patch panels. Budget for LC-to-LC patch cables, cabinet-mounted fiber organizers, and dedicated fiber runs to avoid sharp bends (minimum 30mm bend radius for single-mode).
- Parent Switch Validation — The XSM4216F-100NAS is a line-card option for the M4250-16XF; confirm your hardware revision supports this expansion before ordering. NETGEAR firmware updates occasionally unlock new transceiver types; keep the switch OS current for optimal compatibility and RX-power telemetry accuracy.
- Optical Power Budgets — Single-mode long-haul transceivers (1550nm, 40km+) have higher cost and power consumption than shorter-distance modules. For a 5km run, a standard 10km transceiver is sufficient and will outlast shorter-reach alternatives. Don't over-specify optical reach; it costs money and adds complexity.
- Failover and Redundancy — Consider deploying a second XSM4216F-100NAS module in a redundant core switch with LAG or spanning-tree backup paths. Fiber backbone outages are rare but catastrophic; active-active or active-standby configurations are standard in mission-critical surveillance networks.
The XSM4216F-100NAS is the choice for integrators designing resilient, long-distance camera backbone networks or upgrading existing copper infrastructure where distance, EMI isolation, or future scalability is a constraint. For single-site installations with short runs (<100m), a managed switch with built-in copper ports is simpler and lower-cost; for anything larger or geographically distributed, this module pays for itself in reduced troubleshooting, maintenance-window elimination, and operational reliability. Explore the full NETGEAR catalog for compatible switching platforms and PoE infrastructure.
