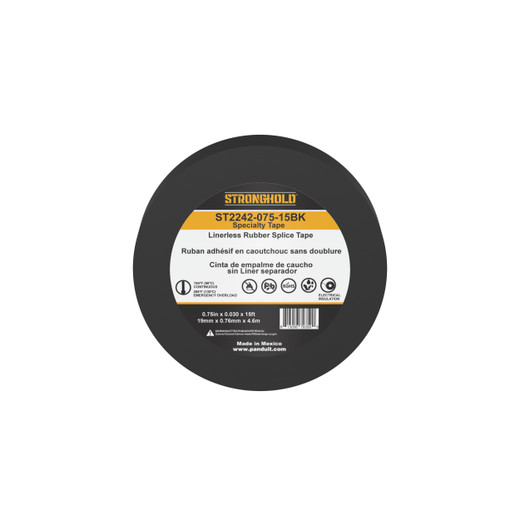

Panduit ST2242-075-15BK StrongHold™ EPR Rubber Splicing Tape

The Panduit ST2242-075-15BK is a 0.75" × 15' roll of self-amalgamating EPR rubber splicing tape engineered for primary insulation and moisture sealing of low-voltage electrical connections up to 600V. This linerless tape fuses into a uniform rubber layer without adhesive, conforming to irregular connector shapes and cable geometries while delivering UV-resistant protection for indoor and outdoor security, AV, and datacenter installations. Each package contains one roll; cases ship with 140 rolls.

Key Features

Self-amalgamating EPR rubber fuses into a single seamless layer without adhesive residue

Rated for low-voltage insulation up to 600V, suitable for splices, terminations, and cable repairs

0.75" (19mm) width provides efficient coverage for wire bundles, small cable splices, and connector builds

Linerless construction eliminates backing removal, accelerating field installation

Conforms to irregular shapes including D-sub connectors, terminal blocks, and cable strain reliefs

UV-resistant formulation maintains electrical stability in outdoor enclosures and aerial runs

Black EPR compound for professional appearance and light-blocking in exposed applications

RoHS, REACH, and lead-free compliant for specification-sensitive projects

EPR (ethylene propylene rubber) delivers superior electrical properties compared to PVC-based tapes, with high dielectric strength and resistance to moisture ingress, ozone, and temperature cycling. The self-amalgamating chemistry cross-links under tension during application, creating a void-free insulation build that won't unwind or leave adhesive residue on conductors. This tape stretches to approximately 200% elongation, allowing installers to build up insulation thickness by overlapping wraps—critical when repairing damaged cable jackets or creating strain relief tapers on breakout assemblies. The 600V rating covers the majority of security system power distribution, PoE++ infrastructure, and AV signal cabling, while the UV-resistant formulation prevents chalking and embrittlement in outdoor camera junction boxes and rooftop conduit penetrations.

The 0.75" width strikes a balance between coverage speed and maneuverability: wide enough to wrap 18–14 AWG wire bundles in 2–3 passes, narrow enough to navigate tight connector backshells and terminal strips without excessive bulk. Field techs installing outdoor PTZ cameras use this tape to weatherproof pigtail splices in NEMA-rated junction boxes, wrapping from cable jacket onto heat-shrink terminations to create a continuous moisture barrier. Datacenter teams apply it to secure loose cables against rack vertical managers, leveraging the rubber's grip to prevent slippage without zip-tie compression. AV integrators building custom breakout cables wrap individual conductors after soldering to D-sub pins, then build a secondary jacket over the bundle—EPR's conformability fills gaps between irregularly sized wires where PVC tape would bridge and leave voids. The linerless design means no backing waste in ceiling spaces or crowded equipment racks, and the black color blends with cable jackets in visible commercial installations.

Panduit StrongHold™ tapes meet RoHS, REACH, and lead-free directives, satisfying federal and state procurement specifications for government and healthcare projects. The 15-foot roll length provides sufficient material for 8–12 typical wire splices (depending on wrap density), while the 140-roll case pack supports large retrofit or new-construction jobs without mid-project reordering. EPR's chemical resistance to oils, solvents, and UV exposure makes this tape the standard choice for integrators who need long-term splice integrity in harsh environments—outdoor intercoms, parking lot camera pedestal bases, and industrial access control panels—where adhesive-backed vinyl tapes fail within 18 months.
