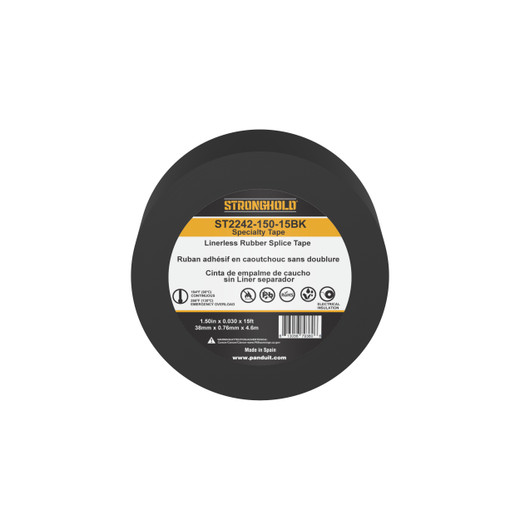

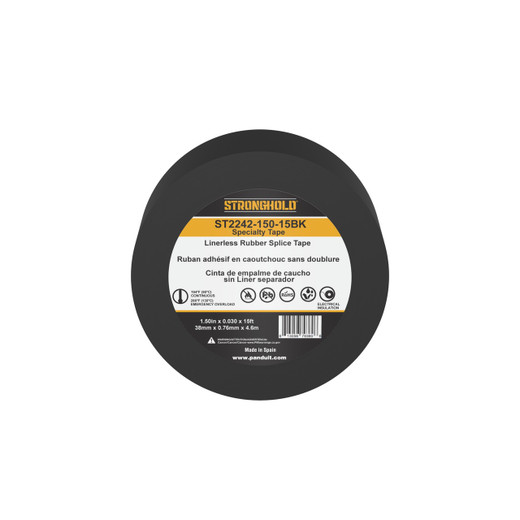

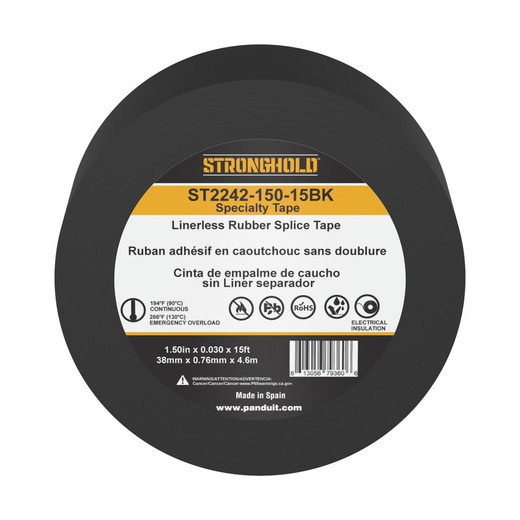

Panduit ST2242-150-15BK 1.5" Rubber Splicing Tape

Panduit ST2242-150-15BK StrongHold Rubber Splicing Tape

The Panduit ST2242-150-15BK StrongHold rubber splicing tape delivers self-amalgamating EPR insulation for low-voltage cable repairs and splice builds up to 600V. Designed for field techs working on security system power runs, access control loops, and perimeter detection circuits, this 1.5" × 15' roll conforms to irregular conductor shapes and creates a moisture-resistant seal without adhesive backing. The linerless construction eliminates peel-away waste and speeds application on multi-conductor bundles in tight enclosures, while the black EPR compound resists UV degradation in outdoor junction boxes and exposed conduit transitions.

Key Features

• Self-amalgamating EPR rubber fuses into a single homogeneous layer under tension — no adhesive residue, no edge lift in humid environments
• 600V insulation rating suits Class 2 power-limited fire alarm circuits, 12-48VDC access control runs, and PoE trunk cable repairs
• 1.5" width provides fast coverage on 18-10 AWG bundle splices common in multi-door controller installations and camera power distribution blocks
• UV-resistant black compound maintains dielectric strength in outdoor pull boxes, rooftop camera junction boxes, and perimeter fence sensor housings
• Linerless design eliminates backing paper — wrap speeds 40% faster than vinyl tape on high-splice-count jobs
• RoHS and REACH compliant for federal and municipal projects requiring environmental documentation

Self-amalgamating tape serves a distinct role in the integrator's kit: where vinyl electrical tape provides a quick insulating wrap for terminations, EPR rubber tape builds primary insulation thickness on damaged conductors and creates weatherproof splice encapsulation. The ST2242-150-15BK's elastomeric compound stretches 300% during application, conforming tightly around solder joints, compression lugs, and heat-shrink boundaries without voids. Once wrapped with 50% overlap and firm tension, adjacent layers cold-weld into a unified insulating mass within minutes — a critical property when sealing outdoor camera power taps against moisture ingress in coastal or high-humidity climates. The material's dielectric constant remains stable across temperature extremes (-40°F to +194°F), maintaining insulation integrity through seasonal swings in unheated equipment rooms and desert rooftop enclosures.

Typical deployment: Repairing a nicked 18/2 stranded power cable inside a crowded 4" × 4" junction box feeding three outdoor PTZ cameras. The integrator wraps the damaged conductor with two layers of ST2242-150-15BK (50% overlap, stretched to half-width during application), then overwraps the entire splice group with vinyl tape for abrasion protection and UV topcoat. The rubber layer provides the insulation build; the vinyl provides mechanical protection and moisture seal at the tape edges. This two-tape method meets NEC 110.14(B) splice accessibility requirements while avoiding the bulk of split bolt connectors in tight boxes. The 1.5" width handles this scale of repair efficiently — wider than standard 3/4" electrical tape but narrow enough to avoid waste on small conductor gauges, and faster to apply than multiple wraps of 1" tape on bundled splices.

The 15-foot roll length covers approximately 8-12 typical cable repairs (depending on conductor size and required build thickness), making single-roll carry practical for service calls. For large projects — retrofitting an aging access control system with 200+ door loops requiring splice insulation upgrades — the 70-roll case quantity supports bulk purchasing at integrator volume pricing. Each roll ships without a cardboard core (collapsed tube design), reducing packaging bulk in service vans and allowing loose storage in standard electrician tool pouches. RoHS and REACH compliance documentation ships with each case, simplifying submittal packets for government and institutional projects requiring material declarations. UV resistance certification supports outdoor applications without secondary conduit protection, though best practice wraps rubber splicing tape with a vinyl topcoat for abrasion resistance and extended service life in direct-sunlight exposures.
