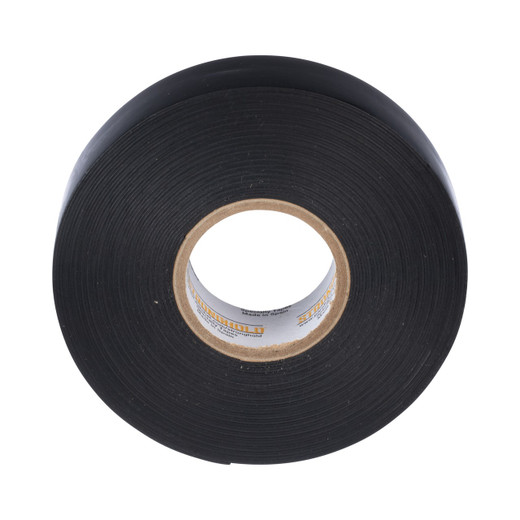

Panduit ST130-100-30BK 1" EPR HV Insulating Tape

Panduit ST130-100-30BK StrongHold™ High Voltage Rubber Insulating Tape

The Panduit ST130-100-30BK is a 1-inch by 30-foot linerless EPR (Ethylene Propylene Rubber) insulating tape engineered for high voltage splicing and primary insulation applications. Rated for 130°C emergency overload temperatures, this self-bonding tape eliminates the need for separate liners, accelerating installation time on utility-scale builds, industrial motor repairs, and medium-voltage datacenter feeds. The StrongHold construction produces a void-free build-up that meets primary insulation requirements for conductors operating above 600V, while chemical and UV resistance ensure long-term performance in outdoor and industrial environments.

Key Features

• 130°C emergency overload rating handles transient fault conditions without degradation
• Linerless self-bonding design — no separate release film to manage during application
• EPR compound delivers superior chemical resistance and UV stability vs. standard rubber tapes
• 1.0" × 30 ft dimensions provide coverage for typical medium-voltage splices and terminations
• Void-free build-up meets primary insulation requirements for high voltage conductor protection
• RoHS, REACH, and lead-free compliance for spec-driven municipal and federal projects
• Black EPR construction for consistent appearance and UV opacity

EPR (Ethylene Propylene Rubber) is a synthetic elastomer formulated for high dielectric strength and thermal stability. Unlike PVC or standard rubber tapes that soften or degrade at elevated temperatures, EPR maintains its insulating properties through the 130°C emergency overload range — critical for motor feeders, transformer secondaries, and industrial distribution circuits that experience short-duration fault currents. The linerless backing means the tape is tacky on both sides; as you stretch and wrap it around a conductor, each layer cold-welds to the previous layer, forming a homogeneous rubber mass with no air pockets or delamination points. This self-amalgamating behavior eliminates the most common failure mode in field splicing: moisture ingress through gaps between wraps. The black pigment provides UV opacity, preventing photodegradation of the rubber matrix when splices are exposed to sunlight in outdoor switchgear or overhead distribution.

Use the ST130-100-30BK for primary insulation on 5 kV through 35 kV class splices and terminations in utility substations, wind farms, solar inverter feeds, and large commercial services. The 1-inch width is optimized for conductor sizes from 1/0 AWG through 500 kcmil — wide enough to cover the splice body in 3-4 wraps with 50% overlap, yet narrow enough to maintain flexibility around irregular geometries. Apply half-lap (50% overlap) for primary insulation; full-lap (two layers, each at 50% overlap) for maximum dielectric strength on critical circuits. The 30-foot roll length handles two to three typical medium-voltage splices, reducing packaging waste and inventory complexity compared to 15-foot consumer rolls. Store rolls in a cool, dry location; EPR remains pliable down to -40°C and retains tack for 24+ months in sealed packaging. For installations subject to NFPA 70E arc flash requirements, pair this primary insulation tape with a semi-conductive outer layer and a flame-retardant jacket tape to complete the three-layer splice assembly per IEEE 404 and manufacturer splice kit instructions.

Compliant with RoHS (lead-free formulation), REACH (no SVHC substances), and UV-resistant per ASTM D1149, the ST130-100-30BK meets the material traceability and environmental requirements for federal, municipal, and international projects. The void-free, self-bonding construction reduces field rework and callbacks caused by moisture intrusion — a measurable advantage for integrators working on design-build contracts with warranty holdbacks.
