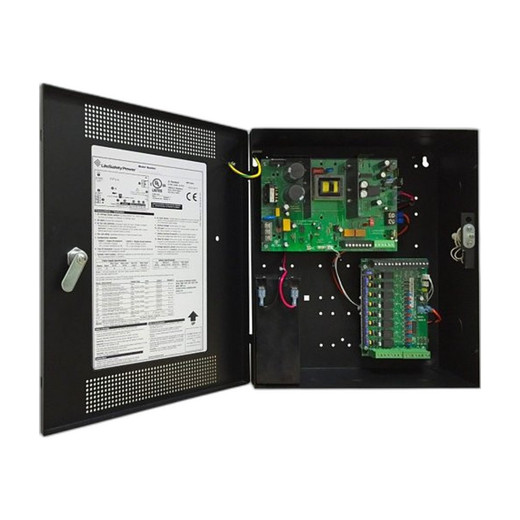

Lifesafety Power FPV104-R8E1 10A/24V Power Supply with 8 Lock Outputs

Overview

The FPV104-R8E1 is a regulated 24VDC power supply rated for 10A continuous output, designed to serve multiple electromagnetic lock circuits in access control and security installations. With 8 individual lock outputs, it consolidates power distribution for mid-scale door control systems—eliminating the need for multiple smaller supplies and simplifying wiring in retrofit or new-build access control deployments. The 10-amp capacity supports typical magnetic lock draws (3–5A per lock) across simultaneous activations.

Compatibility

The FPV104-R8E1 is built for compatibility with access control panels, electromagnetic locks, strikes, and exit devices that operate on 24VDC. The 8 outputs allow deployment in small-to-medium multi-door installations (4–8 doors, depending on lock power draw per opening). Typical integrations include paired installations with access control systems in warehouses, commercial buildings, and secure facility entry points where centralized power distribution reduces installation footprint.

Installation Notes

Verify total lock current draw does not exceed 10A; simultaneous operation of all 8 locks at maximum draw would approach or exceed this limit—calculate per-door current before deployment. Install in a secure, temperature-controlled environment; keep away from moisture and direct water exposure. Use proper 24VDC-rated wiring and connectors to terminal blocks. Ground the supply chassis per local electrical code. Test output voltage at each lock terminal under load to confirm regulation and identify any voltage drop on long runs.
