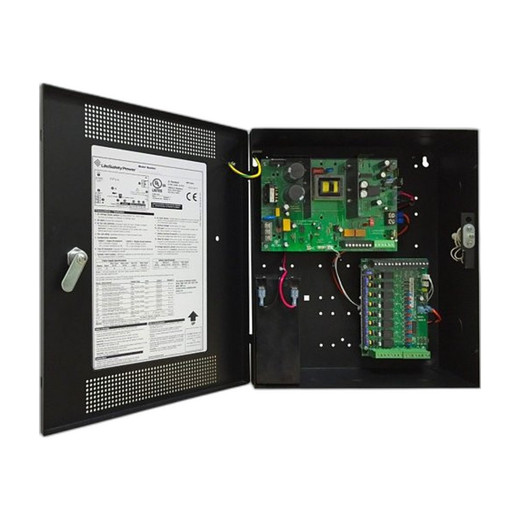

Lifesafety Power FPV6-R8E1 6A 8-Output Power Supply
Overview
The FPV6-R8E1 is a 6-ampere power supply purpose-built to distribute power across eight independent lock outputs — a direct fit for multi-door access control deployments where individual circuit protection and load management per door are requirements. This topology prevents a single door strike failure or overcurrent condition from cascading across the entire system, isolating faults to the affected output only.
Compatibility
Designed to integrate with access control systems requiring hardwired, supervised power distribution to electric locks, magnetic locks, and door strike mechanisms. Verify input voltage specification and output amperage requirements against your control panel and lock specifications before procurement.
Key Specifications
Output Configuration: Eight separate lock outputs enable independent power routing to up to eight doors, gates, or access points. Each output is individually addressable, critical for systems requiring per-door monitoring or selective access scenarios.
Current Rating: 6A total capacity across all outputs. Confirm aggregate lock current draw does not exceed this limit, and verify individual lock amp ratings fit within available per-output headroom to avoid nuisance lockouts during peak demand.
Power Distribution Benefit: Dedicated outputs eliminate shared bus power loss issues common in single-output supplies — voltage sag at one door does not affect neighboring doors, improving strike reliability during simultaneous multi-door access events.
Installation Considerations
Mount in climate-controlled enclosures or DIN-rail cabinets near the access control panel to minimize wire runs to lock circuits. Verify input voltage compatibility with facility supply. Use appropriate gauge wire for each output based on individual lock current and run distance per NEC/local code. Supervise all lock circuits at the control panel if the system architecture supports it.
