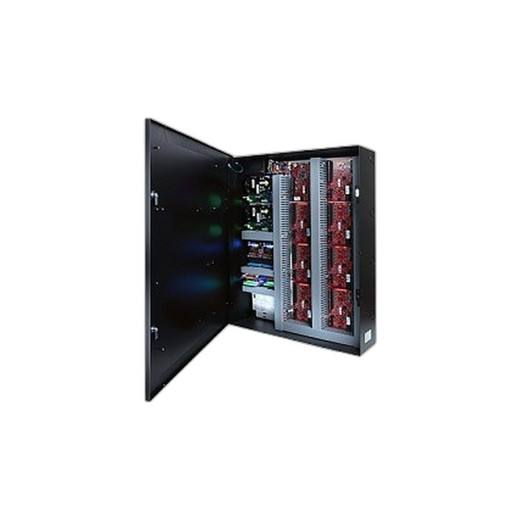

Lifesafety Power FPV102-R8E1 10A/12V 8 Lock Outputs

Lifesafety Power FPV102-R8E1 12V/10A 8-Output Power Supply

Overview

The FPV102-R8E1 is a 12-volt regulated power supply rated for 10 amperes maximum output, configured with 8 independent relay lock outputs. This unit addresses the core integration challenge in access control and door security systems: centralizing power distribution and switching logic for multiple electromagnetic locks, strikes, and exit devices from a single supply point. The 8 relay outputs allow simultaneous control of up to 8 separate locking mechanisms or auxiliary loads, eliminating the need for discrete relay banks scattered across a cabinet.

Compatibility

The FPV102-R8E1 integrates with access control panels, building management systems, and security controllers that require low-voltage 12VDC switching outputs. It is commonly deployed in cabinet-mount installations supporting door access systems, mag locks, electric strikes, and request-to-exit (REX) devices. Confirm relay voltage and switching capacity of your control panel before pairing — the unit's relay outputs are rated for typical access control loads.

Installation Notes

This is a cabinet-mount supply. Plan 10A total available current across all outputs — exceed this and the supply will throttle or fault. Wire input and output terminals per NEC low-voltage standards; use appropriate gauge wire for the intended load on each relay circuit. Verify your panel supports 12VDC input before installation.
