Lifesafety Power FPO75-B100D8E1M 75W Power Supply

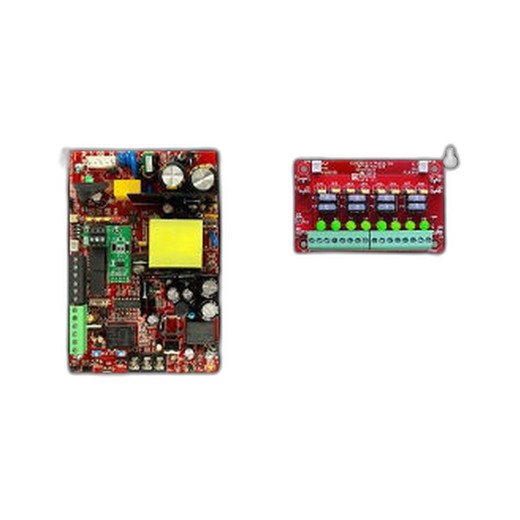

The Lifesafety Power FPO75-B100D8E1M is a 75W DC power supply with eight independent, fused auxiliary outputs. It provides flexible voltage and current distribution (6A at 12V or 3A at 24V primary, with adjustable 5–18V @ 4A max on the main output) for fire alarm and access-control systems. Each of the eight DC outputs is fused at 3A and selectable for Bus1 or Bus2, making it suitable for multi-zone or multi-system installations in E1 enclosure cabinets.

Key Features

• 75W total capacity: 6A/12V or 3A/24V primary voltage options
• Eight fused DC auxiliary outputs, 3A per output, selectable for Bus1 or Bus2
• Adjustable main output: 5–18V DC @ 4A maximum
• Class 2 power-limited design for safe low-voltage applications
• E1 enclosure dimensions: 14H × 12W × 4.5D inches; includes Mercury back plate

Installers and system integrators deploying fire alarm, access control, or hybrid security systems in cabinet-mounted environments rely on the FPO75-B100D8E1M for reliable multi-output power distribution. Compatible with E1-sized control enclosures.
