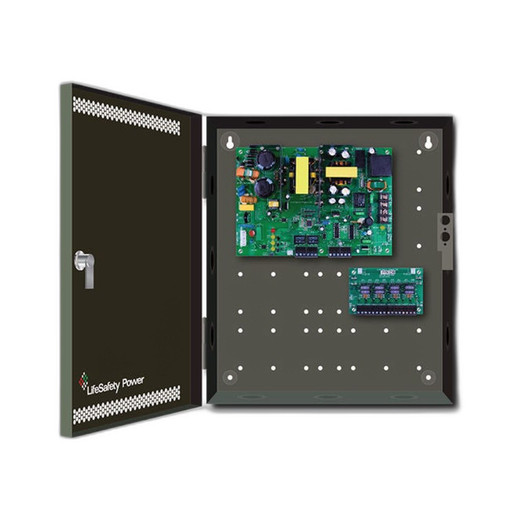

Lifesafety Power FPO150-C8PD8PE4M 150W Dual-Output Power Supply with Relay Lock Control
Overview
The FPO150-C8PD8PE4M is a 150W managed power supply purpose-built for distributed access control and electronic lock infrastructure. It delivers either 12A at 12VDC or 6A at 24VDC, supplying power to multiple electromagnetic locks, request-to-exit sensors, and auxiliary control devices across a single enclosure. The unit is housed in an E4 form factor (24H × 20W × 4.5D inches) with a Mercury back plate, sized for flush or surface mounting in electrical cabinets where space is constrained but output density matters.
Compatibility
Eight Class 2 power-limited relay outputs (each rated 2.5A maximum) control electronic locks, strikes, and magnetic holders. Each relay output is independently selectable for failsafe (de-energize to unlock) or failsecure (de-energize to lock) operation—critical for emergency egress compliance and security policy enforcement. Eight additional Class 2 auxiliary outputs support auxiliary devices such as status indicators, door sensors, or supplemental control circuits. Each auxiliary output can be assigned to Bus1 or Bus2, enabling multi-circuit distribution without additional external relay modules. This architecture integrates directly into access control panels and door controllers that require managed, supervised power distribution to perimeter hardware.
Installation Notes
The FPO150-C8PD8PE4M is designed for cabinet mounting with standard rail or bolt-down installation. The Mercury back plate provides an industrial-grade mounting surface and supports daisy-chaining of auxiliary control circuits. Output voltage selection (12V or 24V) and failsafe/failsecure mode assignment per relay are performed via manual switches or configuration jumpers on the board—verify your lock voltage requirements and access control protocol before final configuration.
