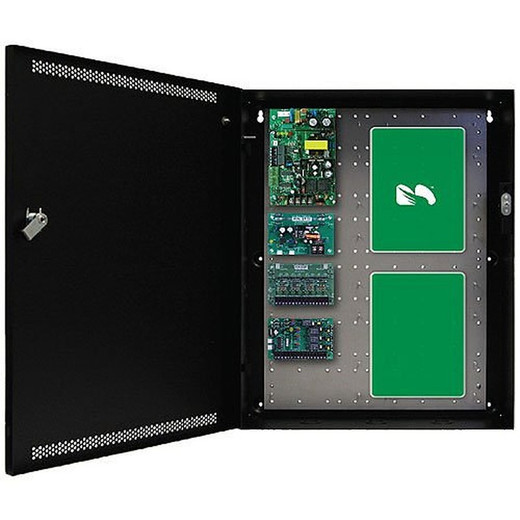

Lifesafety Power FPO150-B100M8NLCSD16E4M/T8-A 150W Managed Power Supply
Overview
The FPO150-B100M8NLCSD16E4M/T8-A is a 150W managed power distribution unit built for small to mid-sized surveillance installations where you need compact, distributed DC power with integrated fuse protection. At 12A/12V or 6A/24V, it handles access control, door locks, proximity readers, and low-power lighting circuits alongside security cameras — all from a single PSU. The 8-port managed distribution module (SD16) breaks out power to individual circuits, each fused at 3A, so a short on one output won't cascade through your entire installation.
Compatibility
This supply is part of the Lifesafety Power FPO family and integrates with the B100 enclosure (a compact, DIN-rail-mountable steel cabinet), the SD16 8-port managed distribution module, and the M8/M8P connector standard. It supplies DC power to any 12V or 24V surveillance accessory, door controller, or lock reader that draws within the per-port 3A fused limit. Check the device's current draw against your total budget: at 150W total and 8 ports, you have roughly 18.75W per port average — enough for most surveillance sensors, but a high-power solenoid lock will require dedicated supply planning.
Installation Notes
Mount the B100 enclosure to a wall or DIN rail in a climate-controlled space (telco closet, electrical room). Wire AC input using the cable kit supplied; configure output polarity via the SD16 module documentation. Each of the 8 outputs is independently fused at 3A — if a circuit draws more than 3A sustained, the fuse will blow, isolating that port from the others. Keep total draw under 150W and you won't stress the internal thermal design. The M8/M8P quick-connect standard speeds field terminations and reduces wiring errors on multi-port jobs.
What's in the Box
- 1x FPO150 power supply module (150W, 12A/12V or 6A/24V)
- 1x B100 enclosure (DIN-rail mountable steel cabinet)
- 1x SD16 8-port managed distribution module with 3A per-port fusing
- 1x FPO Buss/Flex Cable Kit (single, for AC input termination)
- Quick-start guides for FPO75-250, B100, SD16, and M8/M8P connectors
