Lifesafety Power FPO150-B100C8P2D8PE4M1/T8-A 150W power supply

Lifesafety Power FPO150-B100C8P2D8PE4M1/T8-A 150W Power Supply

The Lifesafety Power FPO150-B100C8P2D8PE4M1/T8-A is a 150W regulated power supply designed for multi-door access control and life safety systems. It provides 12V or 24V primary output with adjustable 5–18V secondary at 4A maximum, plus eight relay lock control outputs and sixteen auxiliary DC outputs for controlling strike locks, mag locks, and auxiliary devices across multiple doors. System integrators and installers deploying medium-scale access control networks use this supply to consolidate power distribution and relay switching in a single E4 enclosure.

Key Features

• 150W capacity: 12A @ 12V or 6A @ 24V primary output
• 8 relay lock control outputs (class 2, 2.5A per output) — each selectable for failsafe or failsecure lock control
• 16 auxiliary DC outputs (class 2, 2.5A per output) — configurable for Bus1 or Bus2 operation
• Adjustable secondary voltage (5–18V @ 4A max) for custom device powering

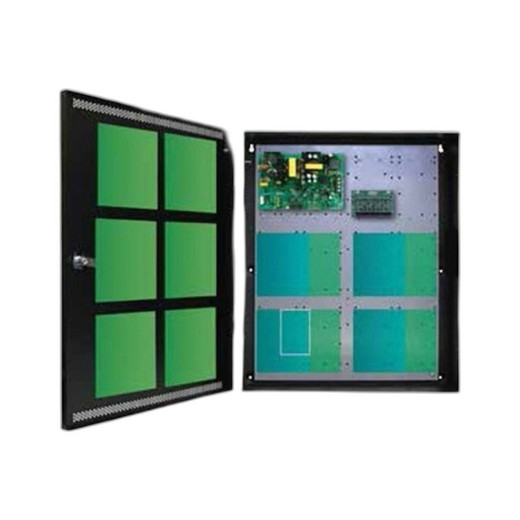

• E4 enclosure: 24H × 20W × 4.5D inches with Mercury MR52/EP1502 control board, door mount kit, and tie-wrap hardware for 8-door installations

System integrators managing mid-scale access control deployments will find this supply's combination of relay outputs and auxiliary switching essential for coordinating strike locks and auxiliary devices. Compatible with Mercury-based access control architectures and standard 24VDC lock hardware.
