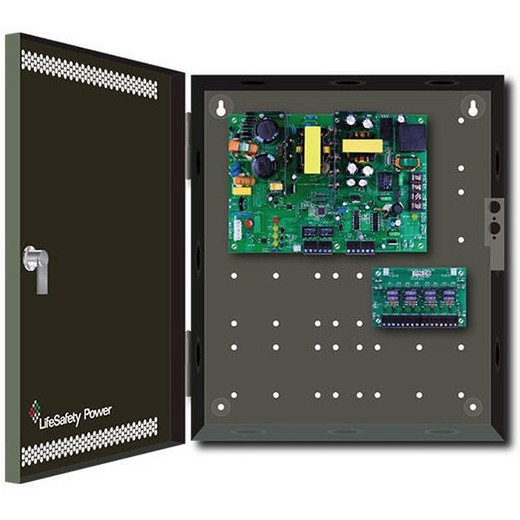

Lifesafety Power FPO150-B100C8E2 150W Adjustable Power Supply

Overview

The FPO150-B100C8E2 is a 150W dual-output power supply designed for multi-camera surveillance and access control deployments. It supplies 12V or 24V primary power and includes a separately adjustable 5-18V secondary output, enabling you to power mixed-voltage systems from a single enclosure without stacking supplies or running parallel distributions. The 8 lock outputs simplify wiring in cabinet-dense installations.

Compatibility

This supply pairs with surveillance cameras, door locks, and control modules that operate on 12V, 24V, or adjustable 5-18V secondaries. The dual-output design is suited for hybrid systems mixing high-amperage cameras (primary output) with low-voltage access devices (secondary), eliminating the need for separate supplies. Common use cases include small-to-mid warehouse access control panels, loading-dock camera arrays, and retail building management systems running mixed-voltage peripherals.

Installation Notes

The 16×20×4.5-inch enclosure fits standard wall-mounted cabinet rails and 19-inch racks. Lock-style output terminals prevent accidental disconnection under vibration or thermal cycling—critical in truck bays and industrial zones. The adjustable secondary output requires terminal setup; refer to the internal label for voltage selector configuration before energizing. Ensure all load amperage across the 8 outputs does not exceed 150W total.

What's in the Box

• 1x FPO150-B100C8E2 power supply unit (enclosure mounted)
• 8x lock-style output terminals
• Internal voltage configuration diagram
