Lifesafety Power FPO150-B1002C82D8E4 16 Lock 16 Auxiliary Output Power Supply
Overview

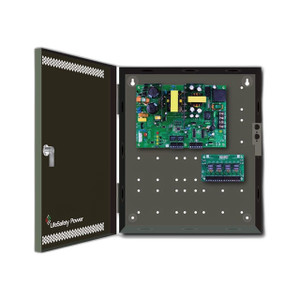

The FPO150-B1002C82D8E4 is a 150W distributed power supply built for access control systems running multiple electric locks and auxiliary devices—door readers, access panels, strobes, request-to-exit buttons. Provides 16 independently fused lock outputs at 3A per output, plus 16 auxiliary outputs also fused at 3A each. Two separate voltage rails deliver 4A @ 12V and 4A @ 24V, letting you run mixed-voltage loads from a single enclosure. The E4 cabinet form factor is UL-listed for commercial mounting in electrical rooms, IDF closets, or wall-mounted cabinet installations where space is tight but current capacity matters.
Compatibility
Works with any 12V or 24V access control ecosystem—Honeywell, Lenel, Salto, HID, Kaba, Assa Abloy, and panel-agnostic systems running standard solenoid locks. Pairs with any access control panel that supports multiple lock circuits and auxiliary relay outputs. The 16 lock + 16 auxiliary topology is ideal for mid-scale deployments: single-building campuses, multi-floor office complexes, or secured corridors where you need lock control and state monitoring from a centralized power shelf without daisy-chaining multiple supplies.
Installation Notes
Each output circuit is independently fused at 3A—a critical safety boundary that protects against short circuits on individual locks without killing the whole supply. Wiring runs via terminal blocks; 12/24V rails are separately distributed. Verify your total connected load does not exceed 150W (roughly 6.25A @ 24V or 12.5A @ 12V combined). The E4 enclosure supports wall or DIN-rail mounting. Confirm AC input voltage and frequency match your facility (typically 110–240V, 50/60 Hz from the manufacturer specs). No external batteries included; this is AC line-powered only.
What's in the Box
- 1x FPO150-B1002C82D8E4 power supply unit (E4 enclosure)
- Terminal block connectors for 12V and 24V outputs
- Mounting hardware (brackets and fasteners per enclosure spec)
