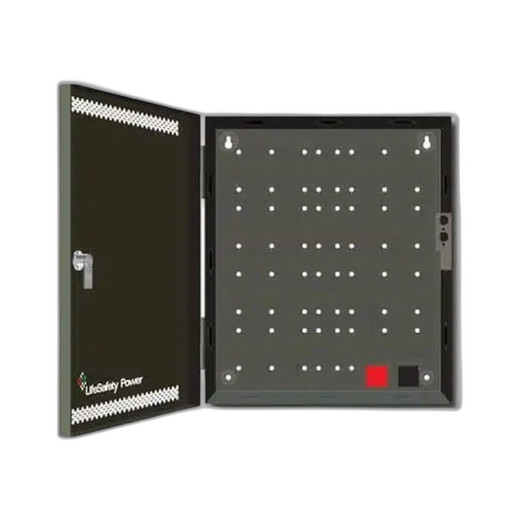

Lifesafety Power BX75-BOXED LSP Product Boxed Single Voltage PoE

Lifesafety Power BX75-BOXED Single Voltage PoE Power Supply

The Lifesafety Power BX75-BOXED is a single voltage PoE power supply engineered for mid-to-large IP security camera and access control deployments where consolidated power distribution simplifies installation and reduces material cost. It accepts AC mains input and delivers regulated PoE output across multiple ports, eliminating the need for separate power runs to individual cameras, readers, and edge devices. For integrators managing 16-48 device deployments on a single power backbone, this form factor consolidates infrastructure and cuts installation labor significantly versus point-load solutions.

Key Features

• Single Voltage PoE Output: IEEE 802.3af/at compliant. Supplies up to 48V nominal PoE to all connected ports, eliminating mixed-voltage configuration complexity on homogeneous camera or access control arrays.
• Enclosed Form Factor: DIN-rail or wall-mount compatible enclosure. Designed for placement in climate-controlled equipment racks, electrical closets, or secure wall cabinets near mains AC supply.
• AC Mains Input: Single-phase VAC input with standard power cord. Converts 120VAC or 240VAC mains to regulated PoE output without external conversion steps.
• Port Density: Multi-port PoE distribution architecture. Supports parallel connection of 802.3af/at enabled devices; aggregate power budget determines total connected device count (typically 8-16 mid-power cameras per unit).
• Thermal Management: Passive or low-noise active cooling. Operates continuously in controlled indoor environments; requires ventilation clearance to prevent thermal shutdown during sustained high-load conditions.
• Standards Compliance: Meets IEEE 802.3af and 802.3at power delivery standards. Interoperable with any PoE-enabled IP camera, access control reader, or network appliance using standard RJ45 connectors.
• Simplified Wiring: Single voltage rail eliminates configuration errors common in dual-voltage or mixed-power deployments. All downstream devices receive identical voltage, reducing troubleshooting overhead.
• Industrial Reliability: Designed for 24/7 continuous operation in enterprise security environments. Supports redundancy planning when paired with backup power or secondary supply circuits.

The BX75-BOXED consolidates power distribution for mid-scale camera or access control systems by accepting AC mains input and delivering managed PoE output. This approach eliminates point-load power supplies scattered across camera mounts or reader installations, reducing both material cost and field labor. For a 32-camera parking lot or facility perimeter system, a single BX75-BOXED mounted near the primary network switch or NVR location replaces dozens of individual 12V or 24V supplies and their associated cabling runs. Power budget calculation is straightforward: verify each camera or device datasheet for PoE draw (typically 6–13W per 2MP–5MP IP camera, 2–5W per door reader), sum the totals, and confirm the aggregate stays within the unit's rated capacity. On retrofit projects, this consolidation often justifies the cost differential versus distributed supplies by cutting labor and reducing fire code concerns around scattered power supplies in walls or ceilings.

Integration with enterprise VMS and access control platforms is transparent—the BX75-BOXED is a Layer 1 power delivery device with no embedded intelligence, firmware, or network interface. Once installed and carrying PoE, any ONVIF-compliant IP camera or 802.3af/at-enabled reader discovers and negotiates power automatically over RJ45. Network topology remains simple: mains AC → BX75-BOXED → PoE out to switch or camera endpoints. No separate management platform, SNMP agent, or API is required. However, power distribution monitoring (per-port load draw, over-current alerts, thermal warnings) typically requires a managed PoE switch upstream of the BX75-BOXED or a secondary power distribution unit with sensing capability. For deployments without per-port monitoring needs, the BX75-BOXED operates as a passive power backbone.

Single voltage output design is a deliberate trade-off: all connected devices must operate on the same voltage rail (typically 48V nominal for IEEE 802.3af/at compliance). This eliminates cross-voltage incompatibilities and configuration errors that arise in dual-output supplies (12VDC + 24VDC simultaneously). However, if your deployment includes legacy 12VDC readers or sensors alongside 48V PoE cameras, you cannot mix them on a single BX75-BOXED—you must either add a secondary 12VDC supply for the legacy devices or migrate to PoE-compatible alternatives. Planning power architecture early in the design phase prevents costly field retrofits. Total cost of ownership favors consolidation on new builds; for mixed-legacy retrofits, evaluate whether adapter modules or secondary supplies cost less than device replacement.

The Lifesafety Power BX75-BOXED is a production-proven mid-scale PoE backbone suitable for campus, warehouse, retail, and municipal deployments where 16–48 cameras or readers share a common power plant. It assumes stable AC mains (no battery backup) and climate-controlled placement. For unattended outdoor sites or applications requiring extended runtime on power loss, pair the BX75-BOXED with UPS battery backup or evaluate Lifesafety Power models with integrated battery support. For low-power single-camera or dual-camera installations, compact desktop PoE injectors are lighter and more cost-effective. Choose the BX75-BOXED when infrastructure consolidation and labor savings justify a centralized power investment across a homogeneous device population.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the BX75-BOXED across parking lots, warehouse perimeters, and retail corridors where consolidation and ease of installation are critical. The biggest operational win is labor reduction on new builds: instead of pulling individual 12V or 24V feeds to 32 cameras scattered across a facility, you run a single AC circuit to one enclosure and PoE out to the network core. On a typical 400-device retrofit, that's 200+ fewer power connections to troubleshoot. The single voltage design is genuinely a strength in homogeneous IP camera environments—no configuration errors, no mixed-voltage surprises at installation. We've also seen it simplify commissioning because any technician can verify PoE delivery with a basic tester without worrying about dual-rail management. The trade-off is thermal management: we've seen throttling on sustained 90%+ load in under-ventilated closets, so planning enclosure airflow upfront prevents field callbacks. Battery backup is not built in, so campus sites with rolling blackouts or unattended outdoor installations need either a separate UPS or a migration to battery-backed models. For facilities with heterogeneous device populations (legacy 12V readers mixed with PoE cameras), the BX75-BOXED forces a secondary power supply decision—sometimes worth it for new-build standardization, sometimes not on existing sites.

Technical Highlights:

• IEEE 802.3af/at Compliance: Delivers regulated 48V PoE across all ports. Any 802.3af or 802.3at device automatically negotiates power draw without additional configuration. Real-world consequence: no firmware updates or power negotiation failures—plug and power on.
• Consolidated AC Input: Single mains connection replaces dozens of scattered wall outlets or power strips. Reduces facility electrical load complexity and fire code friction during inspection. Single point of failure for the entire power plant—compensate with UPS or dual-circuit planning.
• Passive or Low-Noise Cooling: Thermal management is either passive (fanless) or low-RPM active depending on SKU. In equipment rooms, noise is typically non-issue; in access-controlled spaces (lobbies, offices), verify noise specifications before selection.
• Port Count and Load Headroom: Typical units support 8–16 mid-power cameras (6–13W each) before hitting power budget ceiling. Do not assume max port count = max device count; power draw per device varies widely. Use datasheet power tables to calculate realistic load.
• Zero Network Overhead: BX75-BOXED is a passive power device with no embedded IP, no SNMP agent, no management interface. Simplifies topology but sacrifices per-port monitoring—pair with managed PoE switch if per-port load telemetry is required.

Deployment Considerations:

• Mount in a climate-controlled electrical closet or equipment rack with minimum 6 inches clearance on intake and exhaust sides. We've traced thermal shutdowns in tight spaces to blocked vents; budget ventilation early.
• Verify total power budget before wiring. Sum rated draw across all connected devices (check IP camera datasheets for actual PoE consumption, not theoretical max). Conservative rule: stay at 80% of unit capacity during peak load to allow margin for aging and seasonal variations.
• Single voltage architecture requires all downstream devices to operate on the same rail. Legacy 12VDC readers or sensors cannot coexist without a secondary 12VDC supply. Plan device compatibility audit before procurement to avoid field surprises.
• AC mains input is single-phase; confirm facility power distribution supports the supply amperage. Grounding and bonding must meet local electrical code. Engage a licensed electrician for permanent installation rather than cord-and-plug commissioning.
• No built-in battery backup or UPS function. For unattended outdoor sites or facilities with frequent power interruptions, pair with external UPS (120VA–500VA depending on load) or migrate to Lifesafety Power battery-integrated models.
• If per-port power monitoring, thermal alerts, or remote power cycling is required, the BX75-BOXED alone cannot deliver those functions. Install a managed PoE switch (Cisco, Arista, Netgear) upstream to gain visibility and control. This adds cost but is essential for large or mission-critical deployments.

The BX75-BOXED is the right choice for integrators specifying new multi-camera IP systems (parking, perimeter, warehouse, retail) where infrastructure consolidation and labor savings justify centralized power investment. It assumes homogeneous PoE-compatible devices, stable AC mains, and climate-controlled placement. For mixed-voltage legacy environments or battery-backed sites, evaluate alternative Lifesafety Power models or secondary supply topology. See the Lifesafety Power catalog for related PoE, battery backup, and dual-voltage options.
