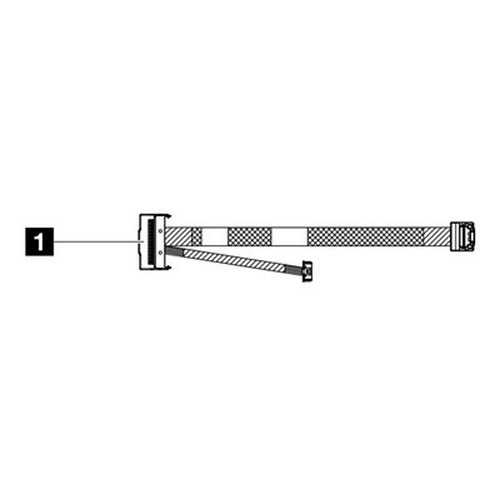

Lenovo 4X97A93832 SR630 V3 M.2 RAID B540I-2I CBL

Lenovo 4X97A93832 SR630 V3 M.2 RAID B540i-2i Cable

Overview

The Lenovo 4X97A93832 is the dedicated M.2 RAID cable assembly designed for use with the ThinkSystem SR630 V3 rack server paired with the B540i-2i RAID adapter. This is a precision-fit internal cable component — not a universal aftermarket part. If you're expanding or replacing storage connectivity on an SR630 V3 platform using the B540i-2i controller, the 4X97A93832 is the correct Lenovo-sourced cable for that configuration. Using off-brand or mismatched cables in a RAID-critical path is a risk no production server environment should take; this component eliminates that uncertainty.

Manufactured in Mexico (MX) and classified under UNSPSC 26121620 (electronic cable assemblies), this cable ships at 0.30 lb and measures 9.70 x 6.10 x 2.20 inches — consistent with a flat, routed internal cable assembly sized for 1U/2U server chassis clearance constraints.

Key Features

• SR630 V3 Platform Fit: Engineered specifically for the ThinkSystem SR630 V3 with the Lenovo server accessories B540i-2i RAID adapter. Proper cable routing in a RAID configuration matters for signal integrity and thermal management inside a dense 1U chassis — a generic cable may fit physically but introduce marginal impedance or connector play that degrades reliability under sustained I/O load.
• M.2 Interface Support: The M.2 form factor targets NVMe or SATA M.2 SSD connectivity through the RAID controller, enabling high-speed storage configurations without occupying standard drive bays. This is relevant for boot volume RAID-1 mirroring or caching tiers on SR630 V3 deployments where bay real estate is allocated to spinning or 2.5-inch SAS/SATA media.
• Compact, Low-Profile Assembly: At 0.30 lb and 9.70 x 6.10 x 2.20 in, the cable assembly is sized for tight 1U routing paths. Proper bend radius is designed in — forcing an oversized or stiff cable into this space risks connector stress and intermittent connections under vibration in rack environments.
• Genuine Lenovo Component: Sourced as a factory-new genuine Lenovo part. Server RAID cable assemblies are one of the component classes where counterfeit or grey-market substitutes are common; the 4X97A93832 is a server infrastructure component sourced through verified channels with no grey-market or parallel-import exposure.
• UNSPSC 26121620 Classification: Correctly classified as an electronic cable assembly for procurement and asset management systems — simplifies PO coding for IT procurement teams managing Lenovo infrastructure contracts.

Integration & Compatibility

The 4X97A93832 is documented for use in the ThinkSystem SR630 V3 server platform with the B540i-2i internal RAID adapter. Before ordering, confirm your SR630 V3 build includes the B540i-2i controller — other RAID adapters (9350-8i, 940-8i) use different cable assemblies and this cable will not apply. Consult your Lenovo server configuration record or the RAID controller accessories section for adapter-specific cable mapping. If you are building a new SR630 V3 configuration, verify the cable is included in your factory CTO option or order it separately to avoid a gap at installation time.

Frequently Asked Questions

Q: What server platform is the 4X97A93832 designed for?

A: The 4X97A93832 is the M.2 RAID cable for the Lenovo ThinkSystem SR630 V3 server used with the B540i-2i RAID adapter. It is not a universal cable and should only be installed in that specific platform and controller combination.

Q: What interface does this cable support?

A: This cable supports the M.2 form factor, connecting M.2 SSDs to the B540i-2i RAID controller inside the SR630 V3 chassis.

Q: Can this cable be used with other Lenovo ThinkSystem servers?

A: Based on available evidence, this cable is specified for the SR630 V3 with the B540i-2i adapter. Using it in other server models is not supported by the documentation available — verify compatibility against your specific platform's cable matrix before ordering.

Q: What are the physical dimensions of the 4X97A93832?

A: The cable assembly measures 9.70 x 6.10 x 2.20 inches and weighs 0.30 lb — sized for internal 1U chassis routing.

Q: Is this a genuine Lenovo part?

A: Yes. The 4X97A93832 is a factory-new genuine Lenovo component sourced through verified distribution channels with no grey-market or parallel-import exposure.

Eden Phillips

The 4X97A93832 is one of those parts that rarely gets a second look until it's missing from a build — and then it stops the whole deployment. As an M.2 RAID cable specifically keyed to the SR630 V3 with the B540i-2i adapter, this 0.30 lb assembly is the physical link between your M.2 boot or cache drives and the RAID controller. Get this wrong — wrong cable, wrong revision — and the controller simply won't see the drives.

Technical Highlights:

• M.2 Form Factor: Targets the compact M.2 SSD interface through the B540i-2i, which is how SR630 V3 deployments achieve RAID-protected boot volumes without consuming 2.5-inch hot-swap bays — keeping all bays available for primary storage.
• Chassis-Fit Dimensions (9.70 x 6.10 x 2.20 in): These are not arbitrary — the cable is routed within a 1U chassis where clearance from the PCIe riser, airflow baffle, and drive cage is measured in millimeters. A substitute cable with different stiffness or connector height can block airflow or fail to seat fully under chassis lid pressure.
• Genuine Lenovo Sourcing: Lenovo RAID cable assemblies carry revision codes tied to specific firmware and controller hardware revisions. A grey-market substitute may be an older revision incompatible with the B540i-2i firmware shipping on current SR630 V3 units.

Deployment Considerations:

• Confirm the B540i-2i adapter is present in your SR630 V3 before ordering — the SR630 V3 supports multiple RAID adapters and each uses a distinct cable assembly. Cross-referencing the Lenovo ServerProven configuration guide for your specific CTO order prevents a mis-ship situation.
• This cable is manufactured in Mexico (MX) — relevant for TAA compliance reviews on federal or state government contracts where country-of-origin documentation is required at the component level.

The 4X97A93832 is the right call for data center teams provisioning SR630 V3 units with M.2-based RAID boot volumes, particularly in hyperconverged or virtualization host builds where boot drive reliability directly impacts cluster availability. It is a single-platform, single-controller fit — order it with that specificity in mind.
