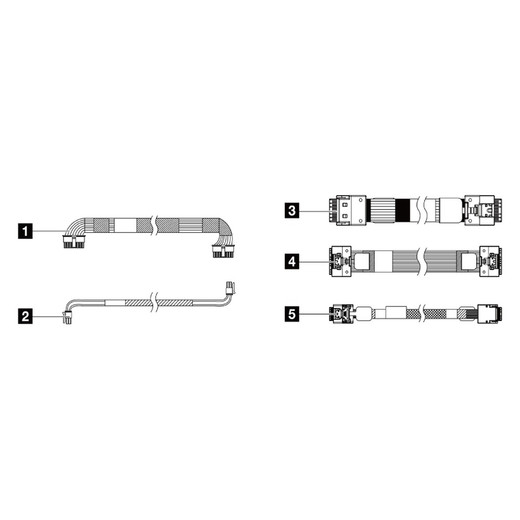

Lenovo 4X97A86183 SGL CPU SR630 V3 INT RAID CBL

Lenovo 4X97A86183 SR630 V3 Internal RAID Cable

The Lenovo 4X97A86183 is a factory-new internal RAID cable designed specifically for single-CPU configurations of the ThinkSystem SR630 V3 rack server. If you're building out or expanding an SR630 V3 with onboard RAID in a single-processor topology, this is the correct connectivity component to complete that wiring path — using the wrong cable or omitting it entirely will leave your RAID controller without a signal path to the drive backplane.

Overview

The 4X97A86183 ships as a genuine Lenovo part, sourced through the standard Lenovo channel. At 0.95 lb and 11.60 x 9.90 x 2.20 inches, it fits cleanly within the SR630 V3 chassis without interfering with adjacent cabling runs or airflow paths. The UNSPSC code 26121620 classifies this component under electronic subassemblies, consistent with internal server cabling.

Key Features

• Single-CPU Topology Fit: This cable is sized and routed for single-processor SR630 V3 builds — if you're running a dual-CPU configuration, verify the correct part number before ordering, as dual-CPU setups use a different cable assembly.
• Compact Form Factor: At 11.60 x 9.90 x 2.20 inches and under one pound (0.95 lb), the cable assembly stows within the SR630 V3 chassis without forcing re-routing of neighboring components.
• Genuine Lenovo Part: Factory-new, not a grey-market or parallel-import substitute — important for environments where firmware validation or Lenovo XClarity management flags component authenticity.

Compatibility

The 4X97A86183 is intended for the Lenovo ThinkSystem SR630 V3 in a single-CPU (SGL CPU) internal RAID configuration. Verify your server's processor count and RAID controller model against Lenovo's compatibility matrix before installing — the SR630 V3 platform supports multiple internal storage configurations, and cable selection depends on which backplane and RAID option your system was ordered with. For broader server accessories and components, confirm part compatibility against your server's MTM (Machine Type-Model) using Lenovo's configuration tools.

Frequently Asked Questions

Q: Which server platform is the Lenovo 4X97A86183 compatible with?

A: The 4X97A86183 is designed for the Lenovo ThinkSystem SR630 V3 in a single-CPU internal RAID configuration. It is not a universal cable — confirm your server's MTM and processor configuration before ordering.

Q: Does this cable work in dual-CPU SR630 V3 configurations?

A: No. The 4X97A86183 is specifically for single-CPU (SGL CPU) builds. Dual-CPU configurations require a different internal RAID cable assembly. Check Lenovo's SR630 V3 parts compatibility guide for the correct dual-CPU part number.

Q: What are the physical dimensions of the 4X97A86183?

A: The cable assembly measures 11.60 x 9.90 x 2.20 inches and weighs 0.95 lb.

Q: Is the 4X97A86183 a genuine Lenovo part or a third-party replacement?

A: It is a genuine, factory-new Lenovo part — not a third-party or grey-market substitute.

Q: Is the 4X97A86183 compatible with the ThinkSystem SR650 V3?

A: Based on available evidence, the 4X97A86183 is specified for the SR630 V3 platform. Compatibility with other ThinkSystem models such as the SR650 V3 is not confirmed by the available data — verify through Lenovo's parts matrix before purchasing for a different server model.

Ted Perry

The 4X97A86183 is one of those parts that's invisible when correct and a full server build blocker when missing or wrong. It's sized specifically for the SR630 V3 single-CPU internal RAID path — at 0.95 lb and 11.60 x 9.90 x 2.20 inches, it fits the chassis routing without modification, but only if your build is a single-processor configuration. Getting this wrong means a cable that physically won't route correctly or a RAID controller that has no signal path to the backplane.

Technical Highlights:

• Single-CPU Specificity: The SGL CPU designation in the part name is not marketing — it reflects a physical routing difference from the dual-CPU variant. Installing the wrong cable in an SR630 V3 typically means a non-functional RAID subsystem until the correct part arrives.
• Physical Fit: At 11.60 x 9.90 x 2.20 inches, the cable assembly is dimensioned to route within the SR630 V3's internal chassis layout without conflicting with memory risers or PCIe card cages in a single-CPU populated configuration.
• Genuine Part Sourcing: Factory-new Lenovo parts matter here because Lenovo XClarity Administrator performs component inventory checks — third-party or grey-market cable substitutes can trigger alerts or complicate firmware management in managed infrastructure environments.

Deployment Considerations:

• Before ordering, cross-reference your SR630 V3's MTM and RAID option code against Lenovo's official parts compatibility matrix — multiple internal RAID cable variants exist for this platform depending on backplane configuration and drive count.
• The 4X97A86183 does not include any associated backplane connectors or RAID controller brackets; it is the cable assembly only — confirm your BOM covers the full RAID subsystem wiring before installation day.

Best fit for data center teams provisioning ThinkSystem SR630 V3 servers with onboard RAID in single-CPU density deployments, particularly where Lenovo XClarity-managed infrastructure requires verified genuine components throughout the build.
