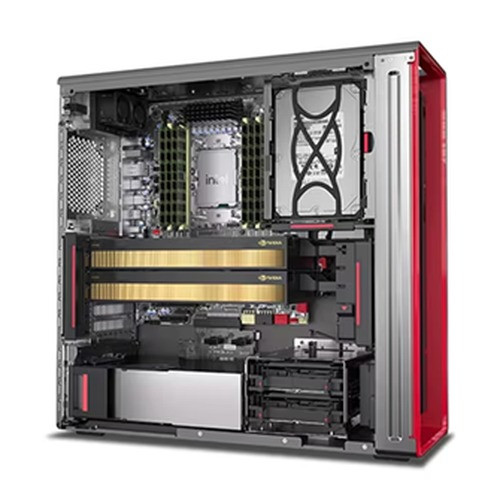

Lenovo 30GA009HUS ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 (30GA009HUS) is a single-socket tower workstation built around the Intel Xeon W3-2525 processor and paired with 64GB of DDR5-4800 RAM — a configuration that hits the practical sweet spot for enterprise video analytics workloads, large-scale VMS server deployments, and demanding computational tasks that consumer desktops simply can't sustain under 24/7 load. This specific configuration ships with 7TB of total PCIe Gen4 NVMe storage across four M.2 slots and an NVIDIA T400 4GB GPU, making it a capable platform for professional workstation environments where reliability and expandability matter more than raw single-core speed.

Key Features

• Intel Xeon W3-2525 (8 cores / 16 threads, 3.5 GHz base / 4.5 GHz boost): The Xeon W designation matters for production environments — ECC memory support, validated ISV compatibility, and workstation-class platform stability differentiate this from consumer Core-series processors. The 4.5 GHz turbo frequency keeps single-threaded tasks snappy while all 8 Performance cores handle parallel compute. For tower workstations running VMS decoding or AI-based analytics engines, the 16-thread count means you're not bottlenecked when multiple camera streams are processed simultaneously.
• 64GB DDR5-4800 in 4×16GB configuration (8 DIMM slots, expandable to 512GB): DDR5-4800 delivers roughly 50% more bandwidth than DDR4-3200 — tangible when you're feeding a GPU analytics pipeline or running an NVR application alongside OS overhead. The 4×16GB layout leaves four slots open, so you can double to 128GB without touching existing modules. The 512GB ceiling means this platform won't be memory-constrained even as workloads scale.
• 22.5MB Smart Cache (Intel Xeon W3-2525): A large L3 cache reduces main memory round-trips on latency-sensitive tasks like real-time video frame buffering. Workloads that repeatedly access the same dataset — database queries, video index lookups — benefit directly from cache that doesn't require a DRAM fetch.
• 7TB total PCIe Gen4 NVMe SSD (1×1TB + 3×2TB M.2 2280 Performance TLC Opal): PCIe Gen4 NVMe delivers sequential reads in the 7,000 MB/s range — effectively eliminating storage as a bottleneck for video ingest, playback, or analytics. The Opal self-encrypting drive specification on every module means at-rest data protection without software overhead, relevant for deployments with data-at-rest compliance requirements. Seven terabytes of fast SSD is substantial onboard storage for a VMS host or an AI inference server caching model weights and video clips locally.
• NVIDIA T400 4GB GPU: The T400 is a low-profile, power-efficient professional GPU — not a rendering or training card, but well-suited as a display output device and for light GPU-accelerated inference tasks. It supports hardware-accelerated H.264/H.265 decode, which offloads video decompression from the CPU in multi-stream monitoring applications. If GPU compute is a primary requirement, the ThinkStation P5 platform supports higher-tier professional GPUs in the same chassis.
• Windows 11 Pro for Workstations 64-bit: The Workstations edition (distinct from standard Pro) adds ReFS file system support, persistent memory support, and higher memory ceiling acknowledgment at the OS level. For enterprise deployments this also means SMB Direct and faster large-file transfers across network shares — useful in VMS environments where footage is written to network storage.
• 175W processor base power (210W max turbo power): At 175W TDP, the Xeon W3-2525 is in the high-performance workstation tier — this platform requires adequate rack or room cooling. The delta between base (175W) and max turbo (210W) is modest, meaning sustained all-core boost is achievable without aggressive thermal throttling in a properly ventilated tower.

Integration and Compatibility

The ThinkStation P5 platform is a validated ISV workstation. The Xeon W3-2525 sits on the W790 chipset ecosystem, which supports PCIe Gen5 lanes for primary storage and GPU slots — meaning the current Gen4 SSDs and T400 GPU can be swapped for higher-bandwidth devices without a platform change. The DDR5 ECC memory architecture is required for many enterprise VMS certifications (Milestone, Genetec, and similar platforms specify ECC RAM for server-class deployments). The NVIDIA T400 is a workstation-class professional GPU with driver stability commitments that consumer GeForce cards do not carry, which matters in always-on deployments. For organizations running network video recorder software or AI-powered video analytics engines, the combination of validated ECC memory, ISV-certified GPU, and ample fast local storage makes this a deployable-without-modification platform. Review your VMS vendor's hardware compatibility list against the Xeon W3-2525 and T400 before finalizing, as HCL qualification is software-side, not hardware-side.

Frequently Asked Questions

Q: Can the 30GA009HUS memory be upgraded beyond 64GB?

A: Yes. The ThinkStation P5 has 8 DIMM slots; this configuration uses 4 slots with 16GB modules. The platform supports up to 512GB of DDR5 ECC RAM, so you can add four more modules without removing existing memory.

Q: Does the ThinkStation P5 support ECC memory?

A: Yes. The Intel Xeon W3-2525 processor natively supports ECC (Error-Correcting Code) memory, and the ThinkStation P5 platform is designed for ECC DDR5 modules — a requirement for enterprise VMS and workstation ISV certifications that consumer desktop platforms cannot meet.

Q: What is the storage configuration on the 30GA009HUS?

A: This unit ships with four M.2 2280 PCIe Gen4 NVMe SSDs: one 1TB Performance TLC Opal drive and three 2TB Performance TLC Opal drives, totaling 7TB of fast local storage. All drives include Opal self-encrypting drive (SED) capability for at-rest data protection.

Q: Is the NVIDIA T400 suitable for multi-stream video decoding?

A: The T400 supports hardware-accelerated H.264 and H.265 decode, offloading video decompression from the CPU in multi-camera monitoring applications. It is not a high-throughput compute or AI training GPU; for heavy inference workloads, the ThinkStation P5 chassis supports higher-tier NVIDIA RTX or A-series professional GPUs.

Q: Does the 30GA009HUS ship with an operating system?

A: Yes — Windows 11 Pro for Workstations 64-bit is included. This edition provides ReFS file system support, higher memory ceiling acknowledgment, and SMB Direct for faster network file transfers compared to standard Windows 11 Pro.

Q: What is the processor turbo frequency on the Xeon W3-2525?

A: The Intel Xeon W3-2525 in the 30GA009HUS boosts to 4.5 GHz maximum turbo frequency from a 3.5 GHz base clock, with 8 cores and 16 threads, and a 22.5MB Smart Cache.

James Everett

When a customer asks me to spec a workstation for a mid-to-large VMS deployment, the 30GA009HUS lands on my shortlist quickly — specifically because of how the storage configuration is assembled. Four M.2 PCIe Gen4 slots filled with Opal SEDs means you get 7TB of write-fast, hardware-encrypted local storage without touching a single SATA bay, leaving the platform's expansion capacity intact for future add-ins. That's a configuration decision that shows planning ahead, not just hitting a price point.

Technical Highlights:

• Xeon W3-2525 at 175W / 210W turbo TDP: The 35W gap between base and max turbo power is narrow — meaning sustained all-core boost is realistic under continuous load, not just a marketing headline. For a VMS host processing dozens of streams simultaneously, consistent multi-core frequency matters more than peak single-core speed.
• 512GB DDR5 memory ceiling: Starting at 64GB (4×16GB across 8 slots), this platform has four open DIMM slots ready for expansion. DDR5-4800 bandwidth is a real advantage when feeding GPU-accelerated analytics pipelines that would otherwise stall waiting on memory bus throughput.
• Opal SED on all four NVMe drives: Hardware-based self-encryption at the drive level adds zero CPU overhead — unlike software encryption — and satisfies data-at-rest requirements for regulated environments without performance tradeoff. All 7TB of onboard storage is covered.

Deployment Considerations:

• The T400 is a display and light-decode GPU, not a compute card. If your VMS or analytics platform calls for GPU-based AI inference at scale (deep learning object detection across 50+ streams), plan to swap or add a higher-tier NVIDIA professional GPU — the ThinkStation P5 chassis supports it, but this SKU doesn't ship with one.
• At 175W processor TDP, this is not a low-heat platform. Verify your rack room or server closet has adequate airflow before deployment — a tower workstation at full load in a poorly ventilated space will thermal-throttle and underperform the rated specs.

The 30GA009HUS is a strong fit for enterprise VMS host deployments, video analytics workstations, or security operations center primary workstations where 24/7 uptime, ECC memory reliability, and ample encrypted local storage are non-negotiable requirements.
