Lenovo 30GA005LUS ThinkStation P5 Intel Xeon W32423 2.10GHZ 15MB Windows 11 Pro for Workstations 64

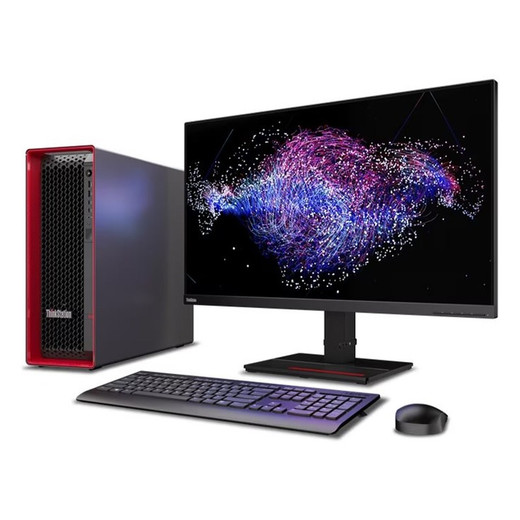

Lenovo 30GA005LUS ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 (30GA005LUS) is a tower workstation built around Intel's Xeon w3-2423 processor and NVIDIA T1000 professional graphics — a configuration well-suited to VMS administration, security operations center (SOC) workstations, video forensics review, and multi-monitor surveillance command posts. With a 120W base TDP and six performance cores running up to 4.2 GHz turbo, it handles the sustained compute demands of live video decoding, analytics review, and concurrent application workloads that desktop-class chips routinely struggle with. If you're outfitting a professional workstation environment where reliability and ISV compatibility matter more than raw consumer benchmark scores, this platform is worth a close look.

Key Features

• Intel Xeon w3-2423 (6-Core / 12-Thread, 2.1 GHz base / 4.2 GHz turbo): The Xeon W platform brings ECC memory support and ISV-certified stability that consumer Core processors don't offer. Six cores with twelve threads handle concurrent VMS streams, analytics processing, and background OS tasks without the frame-drop artifacts you see when a shared-core desktop chip gets saturated. The 4.2 GHz single-core turbo keeps individual thread performance strong for video decoding workloads that aren't easily parallelized.
• 32GB DDR5-SDRAM (expandable to 512GB): DDR5 delivers higher memory bandwidth than DDR4, which matters when a VMS workstation is simultaneously decoding live video, running motion-search queries, and rendering a multi-pane operator display. The 512GB ceiling means this chassis won't become a bottleneck if your role expands — add channels, add RAM without replacing the box.
• 1TB M.2 2280 PCIe Gen4 Performance TLC Opal SSD: PCIe Gen4 sequential throughput keeps OS boot, VMS application launch, and video clip export snappy. The Opal self-encrypting drive (SED) capability lets security-conscious deployments enforce hardware-level drive encryption without a software overhead penalty — relevant in any facility where chain-of-custody integrity is audited.
• NVIDIA T1000 8GB Professional GPU: The T1000 is a professional-grade workstation GPU, not a rebranded gaming card. It carries ISV certifications for the major VMS and forensic video review platforms and drives multiple 4K displays simultaneously — important for operator stations monitoring large camera counts. 8GB of VRAM handles high-resolution multi-monitor layouts without swapping to system RAM.
• PCIe Gen4 and Gen5 Slot Support: Having both PCIe 4.0 and 5.0 slots means you can add a faster GPU, a capture card, a 10GbE NIC, or an additional NVMe storage controller without hitting a bandwidth ceiling from legacy slot generations. This keeps the platform extensible as your deployment requirements grow.
• Intel AX211vPro Wi-Fi 6E + Bluetooth 5.1: Built-in Wi-Fi 6E and BT 5.1 aren't just convenience features on a workstation — they allow wireless peripherals and out-of-band management on networks where a dedicated wired drop for every workstation isn't practical. vPro integration supports remote management and remote diagnostics via the Intel ME stack, useful in distributed multi-site deployments.
• Windows 11 Pro for Workstations 64-bit: The Workstations edition (distinct from standard Windows 11 Pro) includes ReFS file system support, persistent memory support, and higher hardware limits than the standard SKU. It's the right OS baseline for a machine you're going to run 24/7 under sustained workload, and it ships factory-installed with the Xeon W driver stack already validated.
• 3-Year Premier Next Business Day On-Site Warranty: NBD on-site service means a technician comes to you the next business day when there's a hardware failure — not a depot repair cycle that takes a critical workstation offline for a week. For SOC or operations center deployments where downtime is measured in security exposure, this warranty tier is the right call.
• 9 lb Tower Form Factor: At 9 lbs, this is a compact tower designed for desk or floor placement in an operator station or small server room. It's not a rack-mount chassis, so factor that into your physical deployment planning if you're building a centralized rack-based workstation farm.

Integration & Compatibility

The ThinkStation P5 30GA005LUS connects to your network environment via Intel-based Ethernet and the AX211vPro wireless adapter. The PCIe interface structure supports expansion cards including 10GbE NICs, video capture cards, and additional NVMe storage — making it adaptable for NVR and VMS server roles where a purpose-built appliance isn't the right fit. The NVIDIA T1000 carries broad driver support across Windows 11 Pro for Workstations, and the Xeon W-2400 series platform is on the ISV compatibility lists for major enterprise VMS platforms including Milestone XProtect, Genetec Security Center, and Avigilon Control Center — though you should verify your specific VMS version against Lenovo's ISV compatibility matrix for this SKU before committing. The LGA 4677 (Socket E) platform also supports the broader Lenovo ThinkStation lineup, so spare parts and upgrade paths are well-documented. For large-scale camera deployments, pair this workstation with a managed PoE switch to handle the camera-side network infrastructure separately from the workstation LAN segment.

Frequently Asked Questions

Q: What processor does the Lenovo 30GA005LUS use, and how many cores does it have?

A: The 30GA005LUS uses the Intel Xeon w3-2423, a 6-core / 12-thread processor with a 2.1 GHz base clock and 4.2 GHz maximum turbo frequency. It has 15MB of Smart Cache and a 120W base TDP (144W maximum turbo power).

Q: Can the RAM be upgraded beyond the stock 32GB?

A: Yes. The ThinkStation P5 platform supports up to 512GB of DDR5-SDRAM, so there is substantial headroom to expand memory if your VMS, analytics workload, or virtualization requirements grow beyond what 32GB provides.

Q: Does the 30GA005LUS support hardware drive encryption?

A: The included 1TB M.2 PCIe Gen4 SSD is an Opal self-encrypting drive (SED), which supports hardware-level encryption managed through compatible software or a TCG Opal-compliant tool — no CPU overhead for the encryption process.

Q: What is the warranty coverage on the 30GA005LUS?

A: This configuration ships with a 3-Year Premier Next Business Day on-site warranty, meaning a technician dispatches to your location the next business day following a confirmed hardware failure.

Q: Is this workstation rack-mountable?

A: The 30GA005LUS ships as a tower form factor, not a rack-mount chassis. It weighs 9 lbs and is designed for desk or floor deployment at an operator station. If you require a rack-mounted workstation, a different ThinkStation configuration would be needed.

Q: What display outputs does the NVIDIA T1000 8GB support?

A: The NVIDIA T1000 is a professional multi-display GPU capable of driving multiple 4K monitors simultaneously — standard for operator stations monitoring large camera arrays. Exact connector configuration should be verified against the T1000 card specifications for your specific display setup.

Jerry Tildsen

The 30GA005LUS is the configuration I'd specify for a mid-size security operations center that needs a reliable daily driver for VMS administration and forensic video review. The Xeon w3-2423's 4.2 GHz turbo keeps single-thread workloads like video export and timeline scrubbing responsive, while the 12-thread layout means the OS and background VMS services don't starve the foreground operator interface.

Technical Highlights:

• DDR5 with 512GB ceiling: 32GB ships from the factory, but the platform supports up to 512GB — if you're running a VMS client that caches decoded video frames aggressively (Milestone and Genetec both do this), having room to grow memory without replacing the workstation is a real operational advantage.
• PCIe Gen4 Opal SSD: The Gen4 NVMe drive keeps VMS application load times and video clip export fast, and the Opal SED capability lets you enforce hardware encryption at rest — a checkbox requirement in many physical security compliance frameworks without adding CPU overhead.
• NVIDIA T1000 8GB: This is a genuine professional workstation card, not a gaming GPU. The ISV driver stack and multi-4K display support make it the right fit for operator stations where display reliability matters more than gaming benchmark scores.

Deployment Considerations:

• The LGA 4677 Socket E platform runs at 120W base TDP (144W turbo) — confirm your UPS sizing and outlet capacity at the operator station, especially in older facilities where circuits are shared.
• This is a tower, not a 1U or 2U chassis. If your deployment requires centralizing workstations in a rack alongside your NVR and switch infrastructure, this form factor won't fit that model — plan accordingly or specify a rack-mount workstation variant.

Best fit for a dedicated VMS operator station or forensic review workstation in a corporate security or campus operations center environment, where Xeon-class ECC stability and a next-business-day on-site service contract are non-negotiable requirements.
