Lenovo 30GA005QUS ThinkStation P5 Intel Xeon W32423 2.10GHZ 15MB Windows 11 Pro for Workstations 64

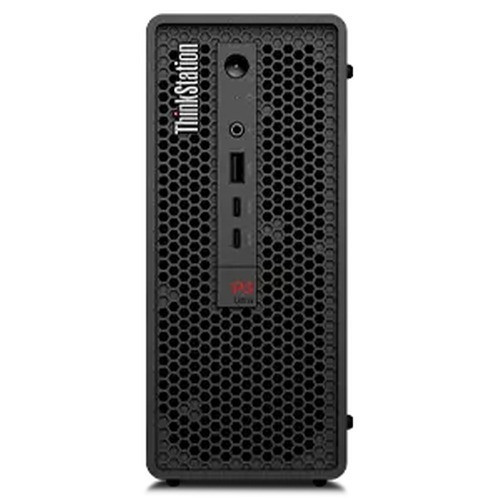

Lenovo 30GA005QUS ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 (30GA005QUS) is a LGA 4677 tower workstation built around the Intel Xeon w3-2423 — a 6-core, 12-thread processor that delivers up to 4.2 GHz boost on demanding single-threaded tasks while keeping base power at 120 W. It ships with 16 GB DDR5 RAM, a 512 GB PCIe Gen4 NVMe SSD, and an NVIDIA T400 4 GB GPU, making it a capable entry point for professional workstations in security operations, light VMS server duty, or CAD/GIS workloads that need a certified GPU without the cost of a high-end card. For teams evaluating the broader Lenovo commercial lineup, the P5 platform scales significantly beyond this base configuration.

Key Features

• Intel Xeon w3-2423 (2.1 GHz / 4.2 GHz Turbo, 6C/12T): The w3-2423 runs on the LGA 4677 (Socket E) platform — the same socket used by higher-core-count Xeon W-2400 and W-3400 parts. That matters for upgrade planning: if workloads grow, the platform supports more capable CPUs without a new chassis. The 4.2 GHz single-core turbo handles latency-sensitive VMS decoding and event correlation tasks that don't parallelize well.
• 15 MB Smart Cache, PCIe 4.0/5.0 support: The 15 MB L3 cache reduces memory stalls on large dataset operations. PCIe 5.0 slot availability future-proofs the expansion bus — useful when pairing with high-bandwidth capture cards, 25 GbE NICs, or next-generation NVMe storage for on-premise NVR and VMS server builds.
• 16 GB DDR5 SDRAM (expandable to 512 GB): DDR5 at the base configuration provides measurable bandwidth gains over DDR4 in multi-stream video decode scenarios. The platform ceiling of 512 GB total RAM means this unit can be provisioned today and expanded without replacement as camera counts grow — relevant for enterprise VMS deployments running Milestone, Genetec, or Avigilon on bare metal.
• 512 GB PCIe Gen4 Performance TLC Opal SSD (M.2 2280): Gen4 NVMe sequential reads significantly outpace Gen3 — the OS and VMS application load times reflect this in practice. The Opal self-encrypting drive capability supports hardware-level encryption for environments with data-at-rest compliance requirements, without CPU overhead penalties.
• NVIDIA T400 4 GB GPU: The T400 is a certified professional GPU — not a gaming card — which matters for ISV-certified VMS and GIS applications that validate against the NVIDIA RTX/T-series driver stack. 4 GB of VRAM handles multi-monitor security operations center setups (typically 4–6 displays) without GPU memory contention. For VMS workstations running GPU-accelerated analytics decode, the T400 offloads H.265 streams from the CPU.
• Intel AX211vPro Wi-Fi + Bluetooth 5.1: Wi-Fi 6E (AX211) is included, which removes the need for a separate wireless NIC in environments where running Ethernet to the workstation isn't practical — useful in retrofit office deployments or temporary security command posts. BT 5.1 supports peripheral pairing at range without dongles.
• Windows 11 Pro for Workstations 64-bit: The Workstations edition (not standard Pro) enables ReFS file system support, persistent memory features, and higher RAM ceilings relevant to the DDR5 platform. It also includes SMB Direct and RDMA support — practical in high-throughput video storage network environments.
• 3-Year Premier Next Business Day warranty: NBD on-site coverage means a field replacement unit or technician dispatch the next business day after a confirmed hardware fault — relevant for security operations where workstation downtime directly impacts monitoring continuity.

Integration and Compatibility

The 30GA005QUS ships with Intel vPro platform support via the AX211vPro, enabling remote management (AMT) for IT teams managing distributed workstation fleets. The Xeon w3-2423 supports ECC memory — verify the installed DIMMs are ECC-registered if data integrity is a hard requirement for your deployment. PCIe 4.0 and 5.0 slot availability supports high-port-count PoE switch management cards, capture hardware, and 10/25 GbE network adapters. The NVIDIA T400 GPU is ISV-certified for major professional applications; confirm your specific VMS or analytics platform against the NVIDIA certified workstation list before deployment if GPU-accelerated decoding is a hard dependency.

Frequently Asked Questions

Q: What is the maximum RAM this workstation supports?

A: The ThinkStation P5 platform supports up to 512 GB of DDR5 SDRAM. The 30GA005QUS ships with 16 GB, leaving substantial headroom for expansion as VMS channel counts or dataset sizes grow.

Q: Does the 30GA005QUS include an Opal self-encrypting drive?

A: Yes. The 512 GB M.2 2280 PCIe Gen4 SSD included is a Performance TLC Opal drive, meaning it supports hardware-level self-encryption — useful for environments with data-at-rest security or compliance requirements.

Q: What GPU is included and how many monitors does it support?

A: The included NVIDIA T400 4 GB is a professional-grade GPU. The T400 typically supports up to 4 simultaneous display outputs, making it suitable for multi-monitor security operations center configurations. Verify display port count and connector types against your monitor setup before ordering.

Q: Is the processor in the 30GA005QUS upgradeable?

A: The Intel Xeon w3-2423 uses the LGA 4677 (Socket E) platform, which is the same socket as higher-core-count Xeon W-2400 and W-3400 series processors. Platform-level upgrade feasibility depends on BIOS support and TDP headroom — consult Lenovo's compatibility documentation before swapping CPUs.

Q: Does this workstation include wireless connectivity?

A: Yes. The 30GA005QUS includes an Intel AX211vPro Wi-Fi 6E adapter and Bluetooth 5.1, plus vPro remote management support via the wireless interface.

Q: What warranty does the 30GA005QUS include?

A: The unit ships with a 3-Year Premier Next Business Day (NBD) on-site warranty, meaning on-site technician or hardware dispatch is available the next business day after a confirmed hardware fault during the coverage period.

Marty Allison

The 30GA005QUS sits at the entry tier of the ThinkStation P5 line, but the LGA 4677 platform it runs on is the same socket used by 12- and 16-core Xeon W-2400 parts — so when I spec this unit for a VMS workstation role, I'm not locked in. The Xeon w3-2423's 4.2 GHz turbo handles single-threaded decode and event correlation well; the 16 GB DDR5 base is workable for 32–64 camera channel VMS clients today, and the 512 GB ceiling means you can build into this box as the deployment grows.

Technical Highlights:

• PCIe Gen4 NVMe SSD (M.2 2280 Opal TLC): Gen4 sequential throughput keeps VMS application load and database query times tight. The Opal hardware encryption layer adds data-at-rest compliance without CPU penalty — relevant for any deployment under a security policy mandate.
• DDR5 expandable to 512 GB: Starting at 16 GB with a 512 GB ceiling gives this platform real longevity for enterprise VMS bare-metal deployments — Milestone M5 or Genetec Security Center on a well-provisioned box can comfortably manage 200+ channels with the right RAM configuration.
• NVIDIA T400 4 GB (professional GPU): ISV certification matters here. Gaming GPUs can run VMS decode but may behave inconsistently across driver updates. The T400's certified driver stack keeps GPU-accelerated H.265 decode reliable across Genetec, Milestone, and Avigilon versions.

Deployment Considerations:

• 16 GB DDR5 is adequate for a dedicated VMS client or moderate-channel recording server, but plan a RAM upgrade at procurement if you're targeting 100+ channels on a single box — DDR5 pricing makes it worth doing at build time rather than retrofitting.
• The 120 W processor base power (144 W turbo) and T400 GPU sit well within standard office circuit loads, but verify your rack or desk location has adequate airflow — the P5 tower chassis is designed for open-air desktop/rack environments, not sealed enclosures.

For a 32–64 camera security operations workstation running Milestone XProtect or Genetec Security Center as a combined client and recording node, the 30GA005QUS is a defensible choice — particularly where NBD on-site warranty coverage is a procurement requirement.
