Lenovo 30GA0059US ThinkStation P5 Intel Xeon W72495X 2.50GHZ 45MB Windows 11 Pro for Workstations

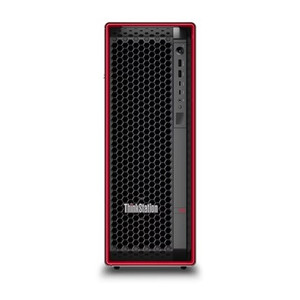

Lenovo 30GA0059US ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 (30GA0059US) is a professional tower workstation built around the Intel Xeon w7-2495X — a 24-core, 48-thread processor with a 2.5 GHz base clock, 4.8 GHz max turbo, and 45 MB Smart Cache. Paired with 32 GB of DDR5 RAM expandable to 512 GB, a 1 TB PCIe Gen4 TLC Opal NVMe SSD, and the NVIDIA T1000 8GB discrete GPU, this platform is sized for sustained multi-stream video processing, VMS server duties, forensic workstation roles, and compute-intensive security analytics workloads. It ships factory-new with Windows 11 Pro for Workstations 64-bit and includes a 3-Year Premier Next Business Day on-site warranty — meaningful in commercial environments where downtime is a cost, not just an inconvenience.

Key Features

• Intel Xeon w7-2495X — 24 Cores / 48 Threads: The w7-2495X sits in the LGA 4677 (Socket E) platform with a 225 W base TDP and 270 W max turbo power envelope. For VMS operators running Milestone, Genetec, or similar multi-channel platforms, 48 logical threads mean concurrent motion analytics, transcoding, and live-view rendering don't compete for headroom — each workload gets dedicated thread capacity.
• 4.8 GHz Max Turbo Frequency: Single-threaded tasks — query lookups, UI rendering, event-triggered workflows — burst to 4.8 GHz automatically. You get high core count without sacrificing responsiveness on latency-sensitive operations.
• 45 MB Smart Cache: The large on-die cache keeps frequently accessed instruction sets and data local to the processor, which translates directly to lower latency on repetitive decode loops common in multi-stream video playback and analytics inference.
• 32 GB DDR5-SDRAM (2 x 16 GB, Expandable to 512 GB): DDR5 delivers higher bandwidth than DDR4 at equivalent clock — important when feeding a 24-core processor with parallel data streams. The 2-DIMM baseline leaves substantial slot headroom; scaling to 512 GB is realistic for in-memory database or large-dataset analytics workloads without a chassis swap.
• 1 TB PCIe Gen4 M.2 2280 TLC Opal SSD: Gen4 NVMe throughput roughly doubles sequential read/write speeds versus Gen3 — video ingestion from multiple high-resolution streams writes faster, and forensic export jobs complete sooner. The Opal self-encrypting drive specification means data-at-rest encryption can be enforced at the hardware level without software overhead, relevant for deployments subject to data handling compliance requirements.
• NVIDIA T1000 8GB GPU: The T1000 is a professional-class GPU — not a gaming card — with ECC memory support and workstation-validated drivers. For security deployments, this matters for GPU-accelerated video analytics inference engines and multi-monitor operator consoles. 8 GB of GPU memory accommodates multiple simultaneous high-resolution display outputs and AI-assisted detection pipelines without falling back to CPU processing.
• Intel AX211 vPro Wi-Fi + Bluetooth 5.1: The AX211 supports Wi-Fi 6E (6 GHz band) for high-throughput wireless connectivity and integrates Intel vPro for remote out-of-band management — useful in distributed enterprise deployments where physical access to each workstation isn't practical. Bluetooth 5.1 handles peripheral pairing at the operator console.
• PCIe Gen4 and Gen5 Slot Support: The ThinkStation P5 platform supports both PCIe 4.0 and 5.0 expansion slots, providing a forward-compatible path for high-bandwidth capture cards, additional GPU compute accelerators, or 100GbE network adapters as deployment requirements scale.
• Windows 11 Pro for Workstations: This edition adds ReFS file system support, persistent memory support, and higher RAM ceilings compared to standard Windows 11 Pro — it's the right OS baseline for a 24-core platform running enterprise VMS or analytics software.
• 3-Year Premier Next Business Day On-Site Warranty: Premier NBD means a technician comes to the site the next business day if hardware fails — not a ship-and-wait depot service. For a workstation operating as a primary VMS server or analytics node, this support tier meaningfully reduces worst-case recovery time.

Integration & Compatibility

The 30GA0059US connects to the network via standard Ethernet and supports USB and PCIe interfaces for peripheral expansion — including capture cards, storage HBAs, and additional NIC installations. Intel AX211 vPro enables hardware-level remote management independent of the OS state, complementing enterprise IT management platforms. The platform's PCIe 4.0/5.0 slots and DDR5 architecture are compatible with current-generation professional workstation accessories and expansion hardware. For network video recorder and VMS server builds, the Xeon w7 platform is validated by major VMS vendors for multi-channel deployments. Integrators building out IP camera infrastructure with analytics requirements will find the T1000 GPU and 24-core CPU combination capable of running edge-offloaded detection pipelines at scale. For PoE network planning alongside this workstation deployment, consult a PoE switch reference to match port count and power budget to your camera count. Those scoping storage and retention for a full system build should also review a storage and retention planning resource to size drives appropriately alongside this compute platform.

Frequently Asked Questions

Q: What processor does the Lenovo ThinkStation P5 30GA0059US use?

A: The 30GA0059US is equipped with the Intel Xeon w7-2495X — a 24-core, 48-thread processor running at 2.5 GHz base with a 4.8 GHz max turbo frequency, 45 MB Smart Cache, and a 225 W base TDP on the LGA 4677 (Socket E) platform.

Q: How much RAM does the 30GA0059US come with, and can it be expanded?

A: It ships with 32 GB of DDR5-SDRAM configured as 2 x 16 GB DIMMs. The platform supports expansion up to 512 GB, leaving significant headroom for memory-intensive workloads such as in-memory databases or large-scale analytics.

Q: What type of storage is included?

A: The system includes a 1 TB M.2 2280 PCIe Gen4 Performance TLC SSD with Opal self-encrypting drive support, enabling hardware-enforced data-at-rest encryption without software performance overhead.

Q: What GPU is included and is it suitable for video analytics workloads?

A: The 30GA0059US includes the NVIDIA T1000 8GB — a professional workstation GPU with ECC memory and ISV-validated drivers. It is well-suited for GPU-accelerated video analytics inference, multi-monitor operator console setups, and workstation-class graphics workloads.

Q: What warranty does the 30GA0059US include?

A: It includes a 3-Year Premier Next Business Day on-site warranty, covering hardware failures with technician dispatch to the site the next business day — not a depot or mail-in service.

Q: Does the 30GA0059US support remote management?

A: Yes. The Intel AX211 vPro wireless adapter provides Intel vPro out-of-band remote management capabilities, allowing IT administrators to manage the system independently of OS state — useful for distributed enterprise deployments where physical access is limited.

James Everett

The spec that stands out most to me on the 30GA0059US is the Xeon w7-2495X's 270 W max turbo power envelope — that's not a desktop chip stretched to fit a workstation label, it's a purpose-built high-core-count processor designed to sustain full-load throughput without throttling. In a multi-stream VMS environment where the CPU is simultaneously running motion detection, transcoding recorded footage for export, and rendering live camera views across an operator console, sustained performance matters more than peak burst numbers.

Technical Highlights:

• 24 Cores / 48 Threads at 225 W TDP: Supports genuine parallel workload separation — analytics inference, live-view decoding, and background recording I/O can run concurrently without contention, which matters in 64+ channel deployments.
• DDR5 Expandable to 512 GB: The 2 x 16 GB baseline is a starting point, not a ceiling. For deployments running in-memory event databases or large-scale video indexing, expanding to 256 GB or beyond doesn't require a platform change.
• PCIe Gen4 Opal SSD: Hardware-level self-encryption on the primary drive means compliance posture (data-at-rest encryption) is addressed without installing third-party encryption software that can conflict with VMS service accounts or slow I/O under load.

Deployment Considerations:

• The 225 W processor TDP plus the T1000 GPU will draw meaningful wall power under sustained load — plan rack or workstation area power allocation accordingly, and verify UPS sizing before deploying as a primary VMS server node.
• The system ships with 32 GB across 2 DIMMs, which leaves additional DIMM slots open for expansion — but verify the specific slot configuration and maximum per-slot density against Lenovo's ThinkStation P5 memory compatibility matrix before purchasing upgrade DIMMs to avoid interoperability issues.

This platform makes the most sense as a dedicated VMS workstation or on-site analytics server in enterprise physical security deployments running 32 or more high-resolution camera channels — where the 24-core Xeon and T1000 GPU provide enough headroom to run GPU-accelerated detection pipelines alongside live operator consoles without a separate compute node.
