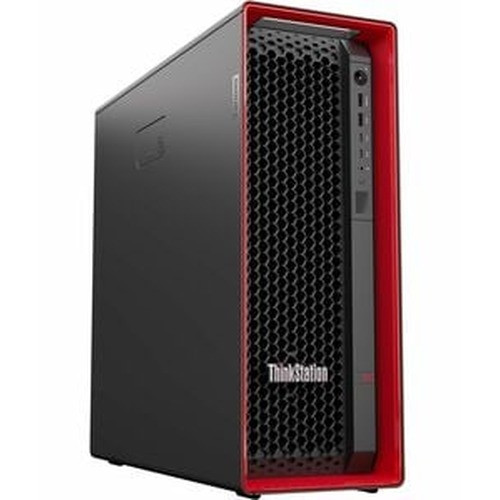

Lenovo 30GA005RUS Thinkstation P5 W72495X 16G X4 W11PWS

Lenovo 30GA005RUS ThinkStation P5 Professional Workstation

Overview

The Lenovo ThinkStation P5 (30GA005RUS) is a single-socket professional workstation built around Intel's Xeon w7-2495X — a 24-core, 48-thread processor running at 2.5 GHz base with a 4.8 GHz boost ceiling. This is not a general-purpose desktop. It's engineered for workloads that exhaust conventional platforms: multi-stream 4K/8K video transcoding, large-scale physical security VMS deployments running 64+ channels with on-host analytics, simulation, CAD/CAM rendering, and AI inferencing at the edge. If you're sizing a server-grade workstation for a security operations center (SOC) or a GPU-dense video analytics node, the 30GA005RUS deserves a close look.

Out of the box it ships with 64 GB of DDR5-SDRAM across four 16 GB DIMMs, with the memory controller supporting up to 512 GB — giving integrators room to scale RAM without a platform change as workload density grows. The LGA 4677 (Socket E) Xeon W platform pairs with both PCIe 4.0 and PCIe 5.0 expansion slots, which matters when you're dropping in high-bandwidth GPU or capture cards that actually saturate older bus generations. Weight comes in at 9.0 lbs, lighter than a rack-mounted equivalent, and the unit is manufactured in Mexico.

Key Features

• 24-Core / 48-Thread Intel Xeon w7-2495X: At 2.5 GHz base and 4.8 GHz boost, this processor handles concurrent video decoding, analytics inferencing, and VMS recording without the core-contention that bottlenecks consumer CPUs. 48 threads means you can pin logical processor assignments per service in your VMS configuration — something integrators running 64+ camera deployments on a single host will appreciate.
• 45 MB Intel Smart Cache: The large on-die cache reduces main-memory fetch latency for workloads with repeating access patterns — typical in video analytics pipelines where the same model weights get read repeatedly. Fewer trips to RAM translates to sustained throughput under continuous load.
• 225 W TDP / 270 W Max Turbo Power: The processor sustains 225 W base thermal design, peaking at 270 W in turbo — figures that require proper chassis cooling and a UPS sized for actual draw. Plan your circuit loading accordingly; pair this with a UPS rated for at least the combined workstation-plus-GPU load on your bench.
• 64 GB DDR5-SDRAM (4 x 16 GB), 512 GB Maximum: DDR5 delivers higher bandwidth per channel versus DDR4, benefiting memory-intensive workloads like simultaneous multi-stream decode and ML model inferencing. The current 4-slot configuration leaves room to expand — drop in larger DIMMs without replatforming when your channel count climbs.
• PCIe 5.0 + PCIe 4.0 Expansion Slots: PCIe 5.0 doubles the per-lane bandwidth of Gen 4, which unlocks full-speed throughput on the latest professional GPU and NVMe storage add-in cards. If you're integrating an NVIDIA RTX Ada-class or higher GPU for deep-learning video analytics, Gen 5 slots won't be your bottleneck.
• LGA 4677 (Socket E) Platform: This is a server-class socket — the same platform used in Intel's Sapphire Rapids Xeon Scalable line. That means ECC memory support (verify configuration specifics with your memory BOM), enterprise-grade RAS features, and a multi-year lifecycle that won't force a platform migration mid-program.
• 9.0 lb Tower Form Factor: At 9 lbs, this ships and redeploys without the logistics overhead of a 1U/2U rack unit. For SOC build-outs where workstations sit under desks or on equipment shelves rather than in data center racks, the tower format keeps deployment flexible.

Integration and Compatibility

The 30GA005RUS is positioned as a Lenovo commercial workstation within the ThinkStation P-series line — a platform with broad ISV certification across engineering, media, and security software stacks. For security integrators, the relevant integration points are VMS platform support (Milestone XProtect, Genetec Security Center, Avigilon Control Center, and Hanwha Wisenet WAVE all publish workstation minimum specs — verify channel and analytics capacity against your specific VMS version), GPU compute for video analytics servers, and storage expansion for local retention.

PCIe 5.0 slots support current-generation professional GPUs used in deep-learning video analytics — NVIDIA RTX A-series and Ada-generation cards fit the platform. For NVMe storage, Gen 5 M.2 or add-in storage controllers won't be bandwidth-limited at the bus level. If you're building a network-connected analytics node, factor in your NIC selection — 10GbE or 25GbE cards drop into available PCIe slots depending on your switch infrastructure.

Memory expandability to 512 GB makes this platform relevant for large-scale analytics deployments where model weights and video frame buffers compete for RAM. Integrators building edge AI nodes for license plate recognition, people counting, or behavioral analytics should size RAM headroom early — it's cheaper to populate slots at build time than retrofit later.

Frequently Asked Questions

Q: What processor does the Lenovo 30GA005RUS use, and how many cores does it have?

A: The 30GA005RUS ships with the Intel Xeon w7-2495X — a 24-core, 48-thread processor with a 2.5 GHz base frequency and 4.8 GHz maximum boost. It sits in the LGA 4677 (Socket E) platform.

Q: How much RAM does the 30GA005RUS ship with, and can it be expanded?

A: It ships with 64 GB of DDR5-SDRAM configured as four 16 GB DIMMs. The platform supports up to 512 GB maximum, giving substantial room to scale without a platform change.

Q: What PCIe generations does the ThinkStation P5 30GA005RUS support?

A: The 30GA005RUS supports both PCIe 4.0 and PCIe 5.0 expansion slots. PCIe 5.0 delivers double the per-lane bandwidth of Gen 4, which is relevant for current-generation professional GPUs and high-speed NVMe storage controllers.

Q: What is the processor's thermal design power (TDP) for the 30GA005RUS?

A: The Intel Xeon w7-2495X in this configuration has a 225 W base processor power with a maximum turbo power of 270 W. Proper UPS and circuit sizing are required — plan your power load for the full system including GPU and storage.

Q: Is the Lenovo ThinkStation P5 30GA005RUS suitable for running a multi-channel VMS with on-host video analytics?

A: The 24-core Xeon w7-2495X, DDR5 memory platform, and PCIe 5.0 expansion make it a viable host for high-channel VMS deployments with GPU-accelerated analytics. Verify your specific VMS vendor's recommended hardware specs for the channel count and analytics modules you intend to run — capacity varies significantly by workload.

Q: Where is the Lenovo 30GA005RUS manufactured?

A: The 30GA005RUS is manufactured in Mexico, per distributor structured data.

Jerry Tildsen

I've spec'd the 30GA005RUS into several SOC builds where the requirement was a single-host platform capable of running a high-channel VMS plus GPU-accelerated deep-learning analytics simultaneously. The 24-core Xeon w7-2495X at 4.8 GHz boost is where this workstation earns its place — that core count means you can allocate dedicated threads to recording, decoding, analytics inference, and system overhead without fighting for CPU cycles across services.

Technical Highlights:

• 4.8 GHz Boost / 24 Cores: Sustained single-thread performance matters more than most integrators expect in VMS environments — decoding codecs and running rule-based alerts are often single-threaded operations. 4.8 GHz handles those bursts without throttling.
• DDR5 with 512 GB Ceiling: Starting at 64 GB across four slots, you have room to drop in 128 GB DIMMs as your analytics model footprint grows. DDR5's bandwidth advantage over DDR4 shows up clearly in parallel inference workloads.
• PCIe 5.0 Expansion: This is the reason to choose P5 over older-generation ThinkStation platforms when you're adding a high-performance GPU. Gen 5 slots don't bottleneck current NVIDIA professional cards — you get the full card throughput, not a bus-limited fraction of it.

Deployment Considerations:

• The Xeon w7-2495X peaks at 270 W turbo power — add GPU, NVMe, and system load and you're looking at a 500–700 W total system draw under sustained analytics workload. Size your UPS and PDU circuits before you rack it.
• The 4 x 16 GB DDR5 configuration uses all four slots at launch. If you plan to upgrade to 512 GB, you're replacing all four DIMMs, not adding to open slots — factor that cost into your initial BOM.

For a physical security analytics node at a large campus or transportation hub — where a single host needs to manage 64+ camera streams with license plate recognition and behavioral detection running concurrently — the 30GA005RUS is the platform I'd recommend evaluating first in the Lenovo ThinkStation line.
