Lenovo 30KB001SUS ThinkStation P5 Gen 2 Intel Xeon 636 3.50GHZ 48MB W11 P64 WS En/uk 32.0GB 1X1TB

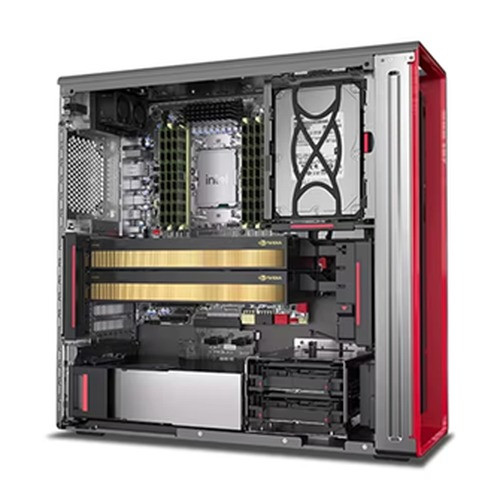

Lenovo 30KB001SUS ThinkStation P5 Gen 2 Tower Workstation

Overview

The Lenovo ThinkStation P5 Gen 2 (30KB001SUS) is a full-tower professional workstation built around an Intel Xeon processor running at 3.50GHz with 48MB cache — the class of CPU you deploy when you need sustained multi-core throughput for demanding workloads rather than bursty consumer tasks. Configured with 32GB of RAM (1x32GB DIMM, leaving slots open for expansion), a 1TB primary drive, and Windows 11 Pro for Workstations 64-bit, this unit ships ready to commission without additional OS licensing overhead. Its PCIe, USB, and Ethernet interfaces mean it integrates cleanly into existing enterprise infrastructure from day one.

Key Features

• Intel Xeon CPU at 3.50GHz, 48MB Cache: The Xeon platform delivers ECC memory support and validated multi-threaded performance — critical when you're running parallel workloads like video analytics processing, simulation, or rendering pipelines where data integrity matters as much as speed. Consumer Core-series chips don't offer ECC; this does.
• 32GB RAM, Single-DIMM Configuration: Shipping with one DIMM means you have open slots for expansion without pulling existing memory. If your workload grows to 64GB or 128GB down the line, you add sticks rather than replace them — a real total-cost-of-ownership consideration for a workstation you plan to run for 5+ years.
• 1TB Primary Storage: A 1TB drive provides working headroom for large project files, local video archives, or OS plus application installs without immediately fighting for space. Pair with a NAS or network storage solution for long-term retention if your workload generates high data volumes.
• PCIe Expansion: The PCIe interface means you can slot in discrete GPUs, additional NVMe storage controllers, or specialized capture/compute cards as your application demands — rather than being locked into the base configuration. This matters in AI inference and video processing deployments where GPU selection is workload-specific.
• USB and Gigabit Ethernet Connectivity: Enterprise-standard connectivity out of the box. Ethernet feeds into your existing LAN/switch infrastructure; USB handles peripherals, hardware security keys, and local devices without needing add-in cards for basic I/O.
• Windows 11 Pro for Workstations (64-bit): Ships with a Workstations edition license — not standard Pro. That distinction matters: WS edition adds ReFS file system support, persistent memory support, and higher RAM ceiling acknowledgment from the OS. You're not retrofitting a consumer OS onto server-class hardware.
• Full-Tower Form Factor: At 22.60 x 11.89 x 23.70 inches and 37.80 lbs, this is a sit-on-the-floor or under-desk tower, not a rack-mount or SFF. Plan your physical deployment accordingly — it needs floor or shelf space, not a rack U. For rack-based deployments, a different form factor would be the right choice.

Integration and Compatibility

The 30KB001SUS integrates via standard PCIe, USB, and Ethernet — the interfaces expected by any enterprise IT environment. The Xeon platform supports ECC RAM and is validated for professional ISV software stacks. The M.2 form factor noted in the distribution data indicates internal NVMe storage expansion capability, useful when you need to add fast scratch storage for compute-intensive workflows. For deployments involving physical security infrastructure, this workstation class is appropriate as a VMS server or NVR host running Milestone, Genetec, or similar software — the Xeon CPU and expandable RAM align with the processing demands of multi-camera analytics pipelines. Pair it with a managed PoE switch for IP camera infrastructure feeding into the workstation's VMS instance. For broader context on workstation selection in surveillance environments, see our enterprise workstation lineup.

Frequently Asked Questions

Q: What processor is in the Lenovo 30KB001SUS?

A: The 30KB001SUS is configured with an Intel Xeon processor running at 3.50GHz base clock with 48MB cache, as specified in the product SKU data from Lenovo's distribution channel.

Q: How much RAM does the 30KB001SUS ship with, and can it be upgraded?

A: It ships with 32GB (1x32GB DIMM configuration). The single-DIMM configuration leaves additional slots available for memory expansion — you can add more DIMMs without replacing what's already installed.

Q: What operating system does the 30KB001SUS include?

A: It ships with Windows 11 Pro for Workstations 64-bit (English/UK), included as a licensed OS — no separate purchase required.

Q: What are the physical dimensions and weight of the 30KB001SUS?

A: The ThinkStation P5 Gen 2 measures 22.60 x 11.89 x 23.70 inches (L x W x H) and weighs 37.80 lbs. It is a full-tower form factor designed for floor or under-desk placement.

Q: Does the 30KB001SUS support PCIe expansion cards?

A: Yes. The 30KB001SUS includes PCIe interface support, allowing installation of discrete GPUs, NVMe storage controllers, capture cards, or other PCIe add-in cards appropriate to your workload.

Q: Is this workstation suitable as a VMS server for IP camera systems?

A: The Xeon CPU, ECC-capable memory platform, and PCIe expandability make it a viable host for professional VMS platforms such as Milestone XProtect or Genetec Security Center. Confirm channel counts and GPU requirements against your specific VMS vendor's hardware sizing guide before committing to a configuration.

James Everett

When I look at the 30KB001SUS, the detail that matters most to integrators sizing a VMS host is the Intel Xeon at 3.50GHz with 48MB cache combined with the single-DIMM 32GB RAM configuration — that open-slot setup is deliberately integrator-friendly. You're not paying to replace factory RAM when you need to push to 64GB for a high-channel-count Milestone or Genetec deployment; you just add a matching DIMM.

Technical Highlights:

• Xeon at 3.50GHz / 48MB Cache: The large L3 cache reduces memory latency for workloads processing multiple simultaneous video streams — less stalling on cache misses when decoding 20+ channels in parallel compared to a smaller-cache consumer CPU at the same clock speed.
• 1TB Primary Drive + M.2 Expansion: The base 1TB handles OS, VMS application, and a working database. The M.2 slot noted in the spec data means you can add fast NVMe scratch storage for video indexing or AI inference pipelines without occupying a PCIe slot you might need for a GPU.
• PCIe Interface + 37.80 lb Full Tower: The chassis weight and tower form factor tell you this is designed for long-term bench or under-desk installation — not hot-swapping between racks. Size it into your deployment footprint at 22.60 × 11.89 × 23.70 inches before you commit.

Deployment Considerations:

• The 1x32GB single-channel RAM configuration is not optimal for memory-bandwidth-intensive workloads. If you're running GPU-accelerated analytics, add a matched second DIMM at commissioning to enable dual-channel — the bandwidth difference is meaningful under sustained load.
• This unit ships with Windows 11 Pro for Workstations, not Windows Server. If your VMS requires a Server OS or you're running the workstation headless in a rack, verify your VMS vendor's support matrix for Win11 WS before deploying.

This is the right platform for a mid-to-large physical security operations center running a software VMS on dedicated hardware — where the Xeon ECC platform, PCIe GPU flexibility, and expandable RAM justify the tower footprint over a smaller-form-factor machine that would require replacement rather than expansion as channel counts grow.
