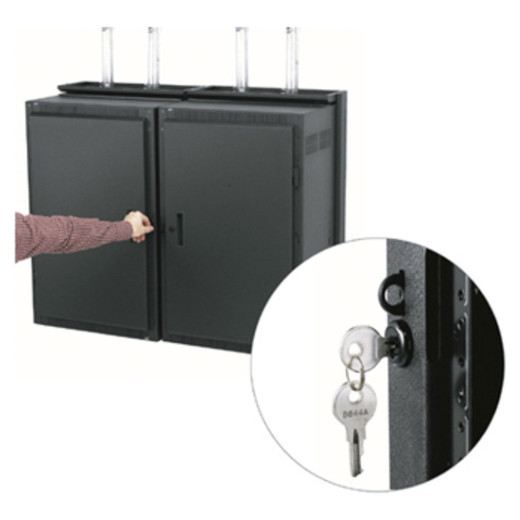

Middle Atlantic DWRSR-ZL Zero Clearance Seismic Latch for DWR/SR Series Racks

Overview

The Middle Atlantic DWRSR-ZL is a patented optional latch designed specifically for Middle Atlantic DWR and SR series rack enclosures where installation depth is constrained and standard latch hardware simply won't fit. If you're mounting a DWR or SR rack in a tight AV closet, behind a wall panel, or in a furniture cavity where rear clearance is at a minimum, this zero clearance latch is the purpose-built solution that lets you secure the rack door without any additional depth penalty. The DWRSR-ZL ships at 2 lbs and is engineered to meet seismic rating requirements — a meaningful spec for installations in seismically active regions or facilities that require equipment to stay secured during a ground movement event.

This latch is an optional upgrade rather than a standard inclusion, which means it gives integrators flexibility: install it where security and seismic compliance matter, skip it where a simple friction-fit door is sufficient. The patented design (see www.legrandav.com/patents) reflects purpose-engineering rather than a generic hardware adaptation — it's built specifically around the DWR/SR enclosure geometry.

Key Features

• Zero Clearance Design: Engineered for minimum rear clearance installs — if your DWR or SR rack is recessed into a wall cavity or furniture unit with no room behind the door, this latch operates without requiring the extra depth that conventional latch hardware demands. Eliminates the common frustration of a latch that physically prevents closing a cabinet door in a tight fit.
• Seismic Rated: Carries a seismic rating, which matters in any deployment that needs to comply with seismic bracing standards — government facilities, California Title 24 installs, data centers with equipment anchorage requirements, or any site where rack contents must stay contained during a seismic event. A standard friction latch won't give you this documentation trail; the DWRSR-ZL does.
• Patented Mechanism: The latch geometry is covered under Legrand AV patents (www.legrandav.com/patents), indicating a design that's specific to this rack family rather than a commodity part. Compatibility is intentional, not incidental — you're not adapting a generic latch to a Middle Atlantic frame.
• Optional Installation: Because it's sold as an add-on rather than standard kit hardware, you can retrofit it to existing DWR/SR racks already deployed in the field. If a previously installed rack now needs seismic compliance or a more secure door closure, this latch provides the upgrade path without replacing the enclosure.
• DWR/SR Series Specificity: Designed exclusively for the DWR and SR series rack enclosures from Middle Atlantic. Do not attempt to fit this latch to other enclosure families — the mounting geometry is family-specific.
• Lightweight Hardware: At 2 lbs shipping weight, the DWRSR-ZL adds negligible mass to an installation. For rack builds where total weight is being tracked — suspended ceiling installs, wall-mount applications, or weight-rated furniture — this won't meaningfully impact your load calculations.

Integration and Compatibility

The DWRSR-ZL is compatible with Middle Atlantic DWR series and SR series rack enclosures. It is an optional latch — not a universal fit for the broader Middle Atlantic rack and enclosure catalog. Verify your specific DWR or SR enclosure model against Middle Atlantic's compatibility documentation before ordering, as the zero clearance geometry is tailored to this enclosure family's door and frame dimensions.

For integrators specifying complete rack builds — particularly those going into seismically active zones or constrained AV furniture — pairing this latch with the appropriate DWR or SR enclosure gives you a documented seismic-compliant closure without sourcing third-party hardware. If you're building out a rack accessories specification for a project, this is the latch line to reference for minimum-clearance door security on Middle Atlantic enclosures.

Installation does not require specialized tools beyond what a standard rack integration kit provides. The optional nature of the latch means it can be added at initial build or retrofitted post-deployment, giving field teams flexibility when seismic compliance requirements are identified after initial installation.

Frequently Asked Questions

Q: What rack series is the DWRSR-ZL compatible with?

A: The DWRSR-ZL is designed specifically for Middle Atlantic DWR and SR series rack enclosures. It is not a universal latch and should not be used with other Middle Atlantic enclosure families without verifying fit against the manufacturer's compatibility documentation.

Q: Is the DWRSR-ZL seismic rated?

A: Yes. The DWRSR-ZL carries a seismic rating, making it appropriate for installs requiring seismic compliance documentation — including government facilities, California Title 24 projects, and data centers with equipment anchorage standards.

Q: Does the DWRSR-ZL come standard with DWR/SR enclosures?

A: No. The DWRSR-ZL is an optional add-on latch, not included as standard hardware with DWR or SR series enclosures. It can be ordered separately and retrofitted to existing enclosures already in the field.

Q: Why would I need a zero clearance latch instead of a standard latch?

A: When a DWR or SR rack is installed in a recessed wall cavity, furniture unit, or any location with minimal rear clearance, a standard latch may require additional depth that the install location cannot accommodate. The DWRSR-ZL is engineered to operate at minimum clearance — the door latches and unlatches without needing extra space behind it.

Q: Is the DWRSR-ZL a patented product?

A: Yes. The latch mechanism is covered under Legrand AV patents. Patent information is available at www.legrandav.com/patents.

Q: Can the DWRSR-ZL be installed after the rack is already deployed?

A: Yes. Because it is sold as an optional accessory, the DWRSR-ZL can be retrofitted to DWR and SR series racks already installed in the field — useful when seismic compliance requirements are added after initial installation.

Eden Phillips

The DWRSR-ZL is one of those parts that gets specified late in a project and then becomes urgent fast — typically when the GC delivers the AV furniture and the integrator realizes the standard door latch adds depth the cavity was never designed to absorb. The zero clearance engineering on this latch is the reason it exists: Middle Atlantic built it specifically so DWR and SR series enclosures can be secured properly even when rear clearance is measured in millimeters, not inches.

Technical Highlights:

• Seismic Rating: The DWRSR-ZL carries verified seismic compliance — a hard requirement on California Title 24 installs and any government project with equipment anchorage specs. Standard friction latches don't give you a seismic rating; this one does, and it documents cleanly for commissioning sign-off.

• Zero Clearance Geometry: Engineered specifically around DWR/SR door and frame dimensions — not a generic latch adapted to fit. The patented mechanism (Legrand AV patents) operates at minimum clearance, which means it works where off-the-shelf hardware physically cannot.
• Retrofit-Ready at 2 lbs: Shipping weight of 2 lbs means negligible impact on load calculations for wall-mount or furniture installs, and the optional-accessory design means field teams can add it post-deployment without swapping out the enclosure.

Deployment Considerations:

• Verify DWR or SR series enclosure model compatibility before ordering — the zero clearance geometry is specific to this rack family. Attempting to fit the DWRSR-ZL to other Middle Atlantic enclosure lines is likely to fail on mounting geometry.
• The evidence confirms seismic rating but does not specify which seismic standard or rating tier (e.g., Zone 4, GR-63-CORE, IBC) — confirm the specific certification level with Middle Atlantic if your project requires a named standard for submittal documentation.

The DWRSR-ZL is the right call for any DWR or SR series deployment going into a recessed furniture cavity, wall-panel enclosure, or seismically active site where standard latch hardware creates a clearance conflict or compliance gap. It's a narrow-use part, but in the installs where it applies, there is no substitute in the Middle Atlantic lineup.
