Middle Atlantic Eclipse PN10 Latching Raceway Fitting - PN10L08WH

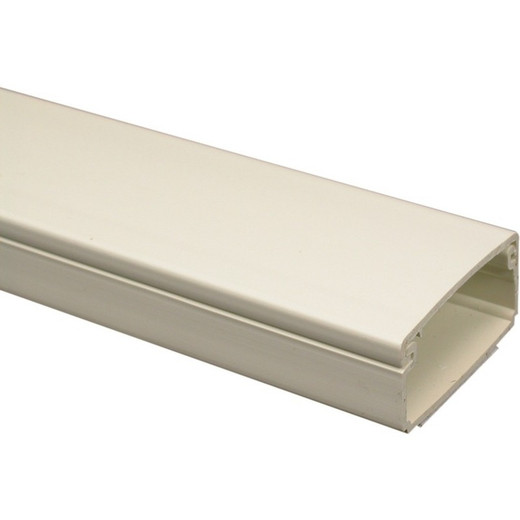

Middle Atlantic PN10L08WH Latching Raceway Fitting — 8 ft Single-Channel, White

Overview

The Middle Atlantic PN10L08WH is an 8-foot single-channel latching raceway from the PN10 Eclipse Series, designed for organizing and protecting communication, fiber optic, and signal cables in commercial installations. At 1-11/16 inches wide and just 3/16 inches deep, this non-metallic fitting sits flush against walls and surfaces without adding visual bulk — a practical choice for finished spaces where exposed conduit would be unacceptable. The co-extruded hinge runs the full length of the channel, allowing the cover to snap open and closed repeatedly without weakening over time, which matters on any run you'll revisit for adds or moves. For broader cable management solutions, explore the full Middle Atlantic catalog.

Key Features

• Co-Extruded Hinge Design: The hinge is formed as part of the extrusion itself — not a separate component that can separate or crack. This means you can open and re-close the cover during installs and future cable pulls without the fitting degrading. Critical on runs that get revisited when cable management layouts change.
• Adhesive Backing: Factory-applied adhesive strip eliminates the need to drill mounting holes in finished drywall, millwork, or modular furniture surfaces. Peel-and-stick installation cuts labor time significantly on surface runs — no anchors, no wall damage. Best on clean, dry surfaces free of dust or texture.
• 8-Foot Length (96 Inches / 2.44m): Each stick covers a full 8 feet, reducing the number of joints on longer runs. Fewer joints means a cleaner visual line and fewer potential weak points where cables can snag or cover latches can misalign under repeated access.
• Single-Channel Configuration: Dedicated single-channel routing keeps cable types separated — useful when running fiber optic alongside signal or communication cables where cross-contamination or bending radius concerns make combined channels impractical. Plan channel capacity before committing to a run length.
• 1-11/16 Inch Width: Wide enough to handle small bundles of patch cables, low-voltage signal wire, or a single fiber run without crowding, but shallow at 3/16 inches so it doesn't protrude into traffic paths or conflict with door frames and trim. Verify bundle diameter fits within the channel before ordering quantity.
• Non-Metallic Material: Eliminates ground loop risk on sensitive signal or fiber runs where metallic conduit could introduce interference. Also lighter than aluminum raceways — easier to handle on overhead surface runs or in finished ceiling spaces.
• White Finish: Matches standard commercial wall paint and drop-ceiling grid systems without requiring painting. Consistent appearance across a deployment where uniform aesthetics matter — corporate offices, healthcare corridors, retail environments.
• PN10 Series Compatibility: Part of Middle Atlantic's Eclipse PN10 family, which means fittings, inside corners, outside corners, and end caps from the same series will align dimensionally — enabling complete, finished-looking installations rather than improvised terminations.

Integration & Compatibility

The PN10L08WH is rated for communication, fiber optic, and signal cable applications — it is not rated for power conductors, so keep line-voltage wiring out of this channel. The adhesive backing performs best on smooth, painted drywall, metal stud surfaces, glass, and laminate. Textured or porous surfaces (exposed brick, unfinished concrete, acoustic tile) will reduce adhesion and may require mechanical fasteners or a different mounting solution. For installations requiring corner transitions or end terminations, pair this raceway with the corresponding PN10-series inside corner, outside corner, and end cap fittings to maintain a finished appearance across the full run. This fitting integrates naturally into low-voltage installation workflows for security camera signal runs, access control wiring, and structured cabling in commercial buildouts. For complex multi-run deployments, consider complementary cable raceway fittings from the same series to complete corners and transitions.

Frequently Asked Questions

Q: Can the PN10L08WH be used for power cables or line-voltage wiring?

A: No. The PN10L08WH is rated for communication, fiber optic, and signal cable applications only. Do not route line-voltage power conductors through this channel.

Q: Does the adhesive backing work on textured walls?

A: The factory adhesive strip is designed for smooth, clean surfaces — painted drywall, metal, glass, and laminate. Textured, porous, or dusty surfaces significantly reduce adhesion. For those conditions, mechanical fasteners or a different mounting solution are more reliable.

Q: How many fittings do I need for a 24-foot run?

A: Each PN10L08WH covers 8 feet (96 inches). A 24-foot run requires 3 fittings. Account for corner fittings separately if the run includes inside or outside turns.

Q: Is the PN10L08WH compatible with other PN10 Series accessories like corners and end caps?

A: Yes. The PN10L08WH is part of Middle Atlantic's Eclipse PN10 Series, which includes matching inside corners, outside corners, couplers, and end caps designed to align dimensionally with this fitting.

Q: Can the cover be opened after installation for future cable pulls?

A: Yes. The co-extruded hinge runs the full length of the fitting and is designed for repeated open/close cycles without degrading, making future adds or moves straightforward without replacing the raceway.

Q: What is the internal channel size of the PN10L08WH?

A: The channel is 1-11/16 inches wide and 3/16 inches deep. Verify your cable bundle's diameter fits within those dimensions before committing to this fitting for high-density runs.

Ted Perry

The PN10L08WH is one of those fittings that looks simple until you're mid-install and realize how much the co-extruded hinge actually matters. On a typical security camera signal run through a finished office corridor, you may pull the initial run, then come back twice — once for an added access control reader, once when the client wants an intercom wire added later. A hinge that's part of the extrusion handles those repeated open cycles cleanly; a separate snap-on cover eventually loosens or cracks at the attachment points. The 8-foot stick length also reduces joint count meaningfully on longer hallway runs.

Technical Highlights:

• Co-Extruded Hinge (Full Length): Formed as part of the extrusion, not attached separately — handles repeated open/close cycles without the cover hinge degrading. On a 40-foot corridor run using 5 sticks, every section stays serviceable for future cable additions.
• Channel Dimensions — 1-11/16" W × 3/16" D: Shallow enough at 3/16" to clear door frames and trim without conflict, but the 1-11/16" width accommodates a small bundle of 22AWG signal wire or a single fiber run with room for a bend radius keeper. Do the bundle math before ordering — it fills faster than it looks.
• Adhesive Backing: Eliminates drilling on finished surfaces. On a typical 8-foot stick, peel-and-press takes under two minutes versus 10+ for anchor-mounted alternatives. The tradeoff: adhesion on textured paint or dusty surfaces is unreliable — inspect the substrate before committing.

Deployment Considerations:

• Plan the full fitting kit before ordering — PN10 series corners and end caps are needed for any run with direction changes. Ordering just the sticks and discovering you need inside corners on-site adds a trip.
• The 3/16" channel depth is the binding constraint on bundle size, not the width. A multi-pair bundle with thick jackets can hit the depth limit before the width limit, preventing the cover from latching cleanly. Pre-check with your cable spec sheet.

This fitting is the right call for finished commercial interior spaces — corporate office security camera runs, healthcare corridor access control wiring, or retail AV signal cable management — where a clean surface-mounted appearance is required and the substrate is smooth enough for the adhesive backing to perform.
