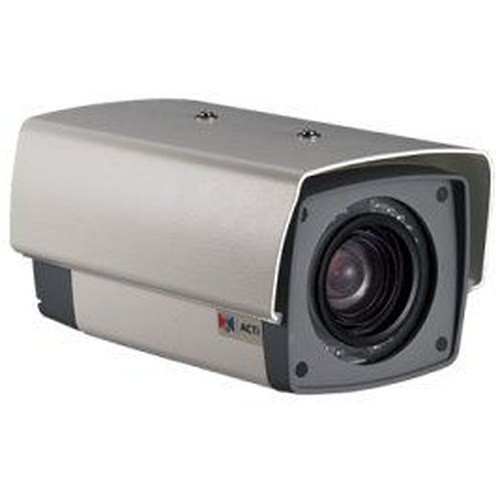

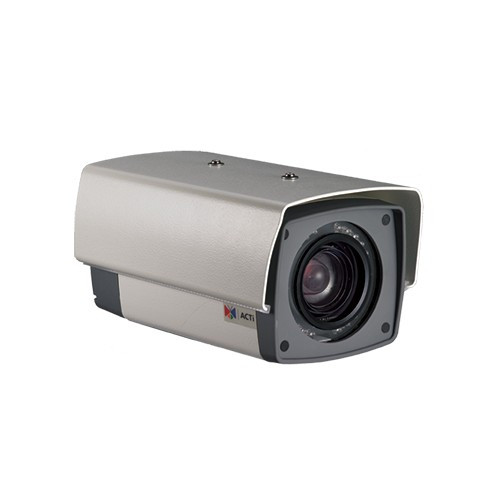

ACTi KCM-5611 2MP Box Camera IP66 PoE Day/Night IR
The ACTi KCM-5611 is a 2MP box camera designed for outdoor and semi-outdoor surveillance where weatherproofing and integrated night vision are essential. The motorized 4.7–84.6 mm zoom lens delivers remote field-of-view control without site revisits, while dual H.264/MJPEG codec support balances bitrate against storage capacity on mixed-VMS environments. Day/Night IR switching preserves visibility in complete darkness, and PoE 802.3af power eliminates separate AC infrastructure—critical for ceiling and wall-mount installations across parking lots, loading docks, building perimeters, and secured access points.
Key Features
- 2MP Resolution: 1920×1080 at 30 fps. Sufficient for mid-range perimeter and facility surveillance; balances storage footprint against identification-grade clarity on 15–30 meter standoff distances.
- IP66 Weatherproofing: IP66 rated enclosure. Withstands rain, dust, and hose-down cleaning without degradation; sealed cable glands and junction box required for extended outdoor deployment.
- Motorized 4.7–84.6 mm Zoom Lens: 18× optical zoom with remote position memory. Eliminates field revisits for framing adjustment; reduces truck rolls and labor on large multi-camera estates.
- Day/Night IR: Integrated IR LEDs with automatic day/night switching. Full surveillance continuity in zero-light conditions; no external lighting rigs needed for nighttime perimeter coverage.
- PoE 802.3af Power: Standard PoE supply (<13W typical draw). Single Ethernet cable carries data and power; simplifies wiring in ceiling grid and wall-mount scenarios, reduces conduit runs.
- Dual Codec (H.264/MJPEG): H.264 for bandwidth-constrained networks, MJPEG for single-frame extraction and forensic clarity. Codec switching per stream enables heterogeneous VMS deployments without transcoding overhead.
- ONVIF Profile S: Profile S compliance ensures native interoperability with Genetec, Milestone, Avigilon, ExacqVision, and other standards-based NVR platforms. No vendor lock-in on recording infrastructure.
- Wall and Ceiling Mount: Box form factor fits flush to vertical and overhead surfaces with compact footprint. Aesthetic integration in office ceilings and industrial exterior walls.
The KCM-5611's motorized zoom is the operational lever that justifies deployment over fixed-lens alternatives. On a 200-meter perimeter, the ability to reframe from a control room—or remotely via mobile access—eliminates the cost and scheduling friction of field visits. The 4.7 mm wide end captures broad corridor or parking lot context; the 84.6 mm telephoto isolates faces or license plates at distance without pixel binning. H.264 encoding cuts bandwidth roughly 40% versus MJPEG on equivalent quality, translating directly to NVR storage savings on 24/7 recording.
IP66 rating is matched to outdoor and semi-outdoor use cases: covered loading docks, exterior alcoves, eaves-protected wall mounts, and ceiling cavities in parking structures. The sealed enclosure handles salt spray in coastal facilities and thermal cycling in unheated warehouses. PoE 802.3af power draw is nominal—the motorized lens servo consumes most of the 13W budget, leaving standard enterprise PoE switches as viable power sources. Confirm your switch supports 802.3af before spec; older 60W/8-port PoE injectors may not meet per-port current limits under full load on all channels.
Integration with any ONVIF Profile S–compliant NVR (including Axis Camera Station, Genetec SecurityCenter, Milestone Xprotect, and third-party platforms) is plug-and-play over standard Ethernet. The motorized lens position is controllable via PTZ commands in most VMS UIs, allowing operators to store preset zoom and focus positions and recall them on demand. MJPEG fallback ensures compatibility with older systems that do not support H.264 decoding; bit-rate trade-offs are visible in storage graphs but rarely show forensic quality loss at 2MP resolution. Firmware updates are available via HTTP or HTTPS; USB local access supports offline commissioning if network infrastructure is not ready at installation.
The KCM-5611 is a field-proven workhorse for integrators managing mixed outdoor-perimeter and access-control surveillance. It bridges the capex and operational simplicity of fixed-lens boxes with the flexibility of motorized surveillance domes, at a cost point that justifies deployment across 10–50 camera estates. Compliance with ONVIF Profile S and standard PoE power ensures future migration and multi-vendor platform compatibility—no stranded investment on proprietary NVR infrastructure. This is not an edge-analytics camera; it is a reliable, maintenance-light optical capture device for sites where zoom flexibility and weatherproofing matter more than on-board AI processing.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ACTi KCM-5611 across logistics facilities, municipal parking lots, and industrial perimeters where motorized zoom and IP66 durability are baseline requirements. The real strength of this platform is operational continuity—once installed, the zoom lens eliminates the scheduling overhead that plagues fixed-lens box cameras. A typical 500-space parking lot that would require 12 fixed-lens cameras can often be covered with 6–8 KCM-5611s, each capable of framing wide context at 4.7 mm and then isolating plate and driver details at 84.6 mm. On the software side, the ONVIF compliance means we're not locked into ACTi's NVR ecosystem; we've successfully paired these cameras with Milestone, Genetec, and Axis Camera Station installations without vendor friction. The H.264/MJPEG dual-codec support is less flashy than H.265, but it's a pragmatic choice—no transcoding headaches on mixed-platform VMS deployments, and storage efficiency is solid enough for 2MP resolution. One caveat: the motorized lens requires network control, so if your VMS doesn't expose PTZ position commands (some older or budget NVR platforms don't), you'll lose the zoom benefit and end up with an expensive fixed-lens box. Always test lens control in lab before committing to a large order.
Technical Highlights:
- Motorized 4.7–84.6 mm Zoom: 18× optical zoom without digital degradation. Eliminates the need for multiple fixed-lens cameras to cover the same area; remote framing adjustment saves labor and site disruption. Lens position is controllable via ONVIF PTZ commands from any compliant VMS, and most platforms support preset storage (e.g., "Parking Lot North—Wide" at 4.7 mm, "Parking Lot North—Plate" at 84.6 mm).
- H.264 and MJPEG Dual Codec: H.264 reduces bitrate 40–50% versus MJPEG on equivalent quality; bitrate typically 2–4 Mbps at full resolution, 30 fps, medium quality. MJPEG fallback preserves compatibility with legacy NVR platforms and single-frame forensic export workflows. Codec switching per stream means you can send H.264 to your new Milestone platform and MJPEG to an older DVR on the same network.
- IP66 Rated Enclosure: Sealed against water jets (12.5 L/min at 100 kPa from any direction) and dust. No protective hood or drip shield required; junction boxes and cable glands must still meet local code. Typical service life in coastal or wet environments is 3–5 years before gasket refresh becomes necessary.
- PoE 802.3af (<13W): Single Ethernet cable carries data and power. Compatible with any standards-compliant PoE switch (Cisco, Ubiquiti, Arista, etc.). No separate AC infrastructure needed; reduces installation cost and electrical code complexity on retrofit projects. Confirm your switch has per-port current budgeting; shared PoE budgets on older enterprise switches may throttle performance if you load all ports.
- ONVIF Profile S Compliance: Ensures native integration with Genetec SecurityCenter, Milestone Xprotect, Avigilon Control Center, ExacqVision, and all other Profile S–compliant NVRs. No custom integrations or API work required; full PTZ and analytics metadata support out of the box.
- 2MP Resolution (1920×1080): Sweet spot for general surveillance at 15–50 meter ranges. Sufficient for license plate recognition at 15–25 meters, face recognition at 10–15 meters (with good lighting and zoom). Not suitable for forensic detail at extreme standoff distances; consider 5MP+ for perimeters >100 meters.
Deployment Considerations:
- Motorized lens requires PTZ control via VMS. If your NVR or video management platform doesn't expose preset zoom and focus commands, the camera reverts to a fixed-focal-length box—expensive and functionally crippled. Always verify lens control in a test deployment before large-scale order.
- PoE 802.3af supplies up to 13W per port; this camera consumes nearly the full budget, especially during lens motion. If you're daisy-chaining passive PoE injectors or using shared PoE budgets on older switches, you may see voltage sag or lens stalling. Deploy on dedicated PoE+ switches if possible, or confirm per-port power metering on your existing infrastructure.
- IP66 rating requires proper cable entry and junction box sealing. Generic PVC conduit and unshielded RJ45 terminations will negate weatherproofing. Budget for M20 or M25 cable glands, potted junction boxes, and silicone sealant as installation staples.
- IR range is not specified in the datasheet—conservative estimate is 10–15 meters in complete darkness, depending on subject reflectivity and lens focal length. At the 84.6 mm telephoto setting, IR illumination drops significantly; zoom back to 20–30 mm for reliable nighttime coverage beyond 10 meters. Test on site before final placement.
- Box form factor and sealed enclosure make lens cleaning difficult after installation. Dust or salt spray on the lens window will degrade image quality, especially at 84.6 mm zoom. Schedule cleaning as part of monthly site walks, or use clear protective lens caps in dusty environments.
- Firmware updates are available but not automatic. ACTi support is regional; US-based integrators typically source firmware via the distributor. Budget for periodic security patching, especially on internet-facing or corporate-network deployments.
The KCM-5611 is the right choice for integrators who need optical zoom flexibility and weatherproofing but don't want the cost or complexity of a motorized dome. It's ideal for multi-camera parking lot, warehouse, and perimeter projects where the same camera must capture both wide context and zoom detail. Confirm your VMS supports PTZ lens control, vet your PoE switch capacity, and you'll get a solid 3–5 year service life. For buyers ready to move beyond fixed-lens box cameras, the KCM-5611 is a pragmatic entry point. Explore the full ACTi catalog for complementary fixed-lens and thermal options.
