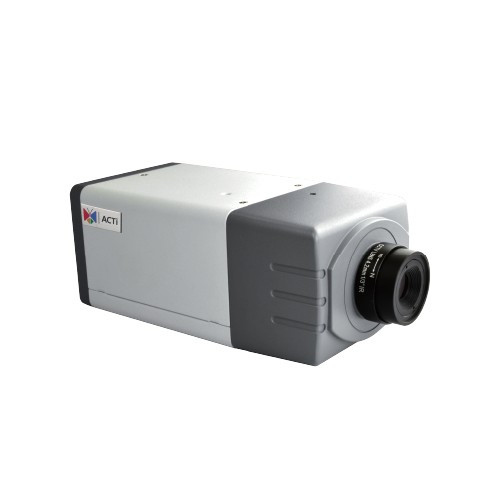

ACTi E217 2MP Box Camera Day/Night Advanced WDR
The ACTi E217 is a 2MP fixed-lens box camera designed for medium-range indoor surveillance where mixed lighting conditions and compact installation footprints drive the requirement. The combination of Day/Night capability and Advanced WDR enables the E217 to capture usable detail across scenes with extreme brightness variations—fluorescent office spaces with daylit windows, retail environments with overhead lighting and exterior storefronts, transition zones between bright exterior and dim interior spaces. Operating on PoE (802.3af) eliminates the need for separate AC runs; the compact box form factor fits into constrained ceiling cavities and wall recesses where larger turret or bullet housings cannot be accommodated.
Key Features
- 2MP Resolution at 1080p/60 fps: Captures 30fps standard and up to 60fps at 1080p resolution, delivering smooth motion playback and forensically adequate facial detail at 6–10 feet.
- Advanced WDR: Handles lighting extremes—backlighting through windows, storefronts with bright exteriors—without manual iris adjustment or supplemental lighting.
- Day/Night Capability: Automatic IR-cut filter switching; no external IR illuminators required, reducing hardware complexity and power overhead.
- PoE 802.3af Power: Standard PoE supply—works with any 802.3af switch, under 13W draw per unit, simplifying power budgeting on multi-camera deployments.
- H.265, H.264, and MJPEG Codec Support: H.265 reduces bitrate 40–60% versus H.264 on equivalent quality; MJPEG fallback ensures compatibility with legacy VMS platforms.
- 2D+3D DNR (Digital Noise Reduction): Temporal and spatial filtering suppress grain in low-light transitions and dark corridors without sacrificing fine detail.
- ONVIF Profile S Compliance: Interoperates with any ONVIF-compliant VMS—Milestone, Genetec, Avigilon, ExacqVision, or vendor-neutral recording platforms.
- Fixed Lens, Compact Box Form Factor: No motorized focus adjustment; ideal for retrofit installations and pre-planning where lens angle is fixed in advance.
The E217's Advanced WDR and Day/Night architecture address the dominant failure mode in budget-tier indoor surveillance: loss of face/object detail in mixed-lighting retail and office scenarios. Unlike basic fixed-gain cameras that blow out windows or crush shadows, WDR processing preserves luminosity in both bright and dark regions simultaneously. The result is reduced false-positive alerts from shadow transitions and more usable forensic footage in gateway and transition-space deployments.
Deployment flexibility is a key advantage. The PoE 802.3af budget is tight—a single switch port supports one E217—but that simplicity means no separate power supplies, no AC conduit runs, and straightforward cable planning on retrofit jobs. In retail stockrooms, office hallways, and educational facilities, the compact box housing slides into existing ceiling cavities without modification. The fixed lens eliminates the mechanical complexity and cost of motorized zoom; lens selection (angle of view) must be confirmed before installation, but that trade-off keeps total cost of ownership low.
Integration is standardized. ONVIF Profile S guarantees metadata streaming (motion detection, tamper alerts) and multi-codec support across heterogeneous VMS fleets. ACTi's native platform also supports the camera, though ONVIF compatibility ensures you're not locked into a single vendor's recording software. Storage efficiency improves markedly with H.265 enabled: a 2MP 1080p/30fps stream at 2–3 Mbps (H.265) versus 4–6 Mbps (H.264) adds up on systems recording 16+ cameras continuously.
The E217 is suited for compact indoor spaces—retail checkout areas, office reception desks, school hallways, building lobbies—where medium-range coverage (15–25 feet) and tight physical constraints rule out larger turret or dome designs. Verify ONVIF or ACTi codec support in your target VMS before installation; some legacy or proprietary platforms may require firmware upgrades or third-party gateway translation. Position the camera to minimize direct backlighting into the lens; if WDR performance appears insufficient in very high-contrast scenes (e.g., looking directly at a sunlit window), relocate the camera angle or add supplemental diffusing material to reduce contrast extremes.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The ACTi E217 is a pragmatic choice for retrofit indoor surveillance where budget and physical constraints are hard limits. We've deployed dozens of E217s into office and retail environments, and the differentiator is not the megapixel count—2MP is table stakes at this price point—but the reliability of the Advanced WDR and Day/Night pairing under mixed lighting. Unlike cheaper fixed-iris competitors, the E217's WDR processing actually reduces the operational noise that kills NVR alerting systems: storefronts with brightness transitions, checkout counters under harsh fluorescents with exterior daylight bleeding in, hallways lit by motion-sensor PIR floods. The automatic IR-cut filter switch is smooth and doesn't leave dead frames—important on continuous recording. Against nearest alternatives like the Uniview IPC322SR or Hikvision DS-2CD2143G0-I, the E217 trades some low-light sensitivity (no dedicated IR illuminators) for mechanical simplicity and PoE 802.3af universality. That's the right bet for integrators who don't want to manage separate IR power supplies or wrestle with power-hungry PoE+ infrastructure.
Technical Highlights:
- Advanced WDR with 2D+3D DNR: WDR processes extreme contrast scenes without motor-driven iris lag; 2D+3D noise reduction suppresses low-light grain without losing edge definition. On a bright-window + dim-interior scene, you get usable detail in both zones without blending or ghosting.
- 1080p/60 fps Capability: Full 60fps at native 1080p resolution ensures smooth playback for motion-heavy scenes (checkout lines, entry doors). Most comparable fixed-lens cameras cap at 30fps; 60fps here is genuinely useful for real-time monitoring and forensic clip review.
- H.265 + H.264 + MJPEG Tri-Codec: H.265 bitrate efficiency cuts storage by 40–60% on long-term recording. H.264 is the fallback for legacy VMS systems; MJPEG is the slowest but ensures compatibility with any IP stack. You're not locked into one encoding choice.
- PoE 802.3af Standard Power: Under 13W draw means any 802.3af switch port supports one camera. No need to spec PoE+ infrastructure or manage dual power budgets. On a 24-port PoE switch, you have clear headroom for 16–20 E217 units.
- ONVIF Profile S + Native ACTi Support: Profile S guarantees metadata streaming and codec negotiation across Milestone, Genetec, Avigilon, and vendor-neutral platforms. ACTi's own NVR software also supports the camera natively for single-vendor environments.
Deployment Considerations:
- The fixed lens requires pre-installation angle planning. Unlike motorized designs, you cannot pan/tilt/zoom after mounting. Measure sight lines and confirm 2MP resolution is adequate at your intended coverage distance (typically 15–25 feet for identity-class detail) before ordering.
- PoE 802.3af is tight—verify your switch has dedicated ports and sufficient aggregate power budget. One E217 per port is the rule; do not attempt to daisy-chain multiple cameras on a single port.
- Day/Night IR-cut filter switching is automatic but can introduce brief transient frames during dawn/dusk transitions. If you're capturing archival video in a dimly lit space with periodic exterior light changes, WDR should compensate, but test on-site before finalizing frame rates.
- Advanced WDR performance degrades in extreme backlight (direct sunlight into the lens). Reposition the camera angle, use a sun shield, or adjust mounting to minimize direct glare if WDR alone cannot handle your specific lighting geometry.
- No external IR illuminators are included; Day/Night operates via IR-cut filter only. If your space requires active IR lighting, upgrade to a model with integrated IR (e.g., ACTi E216 or E214) or add supplemental lighting infrastructure.
The E217 is the right camera for integrators building compact, cost-conscious indoor surveillance systems where WDR and Day/Night are non-negotiable but active IR and motorized zoom are not. Pair it with a PoE 802.3af switch, an ONVIF-compatible NVR, and you have a complete 2MP solution in a footprint that fits tight ceilings. See the ACTi catalog for related box, dome, and turret models across the E-series range.
