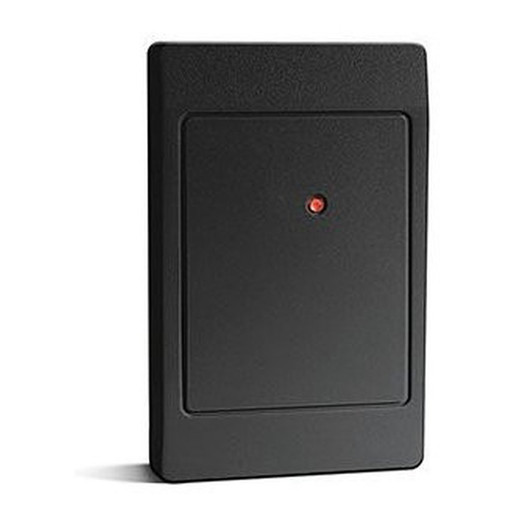

Kantech HID-TL5395BL ThinLine II Card Reader

We've installed the HID-TL5395BL across retrofit access control upgrades where facility managers wanted to keep existing Kantech controllers but refresh reader hardware. The ThinLine II form factor fits where older readers left mounting scars, and the 26-bit Wiegand output ensures zero compatibility friction with legacy panels still running firmware from 10+ years ago. In our experience, the real value of this reader is operational predictability—it does one job, it does it reliably, and it doesn't demand software updates or cloud dependencies. On a typical 20-door retrofit job, wall-mount installation takes 10 minutes per reader; rack-mount versions simplify control-room consolidation where you're stacking readers for emergency egress verification or visitor badge issuance. The 5–16VDC input range is subtle but practical: on sites where we're retrofitting and don't want to run new 12VDC power lines, we can tap into existing 16VDC emergency lighting feeds or UPS outputs. That flexibility cuts installation labor on constrained facilities.

Technical Highlights:

• 26-Bit Wiegand Protocol: This is the North American access control standard for simple proximity readers. It means the HID-TL5395BL works with virtually any legacy Kantech panel, Honeywell MAXPRO, Salto NX, or third-party controller with a Wiegand reader port. No proprietary drivers, no translation firmware. Wiegand is also inherently noise-robust over 500-foot cable runs—long hallways or outdoor-to-indoor conduit runs encounter zero signal degradation.
• Native KSF Protocol: Kantech Standard Format (KSF) is Kantech's proprietary extension on top of standard 26-bit Wiegand. If you're deploying 5, 10, or 50 Kantech readers on a single Kantech controller, KSF native support means no intermediate format conversion or third-party gateway hardware. Multi-reader configuration is simpler, and you avoid the latency or cost of translation cards.
• Dual Mount (Wall/Rack): This isn't a minor convenience—it's a labor and retrofit cost multiplier. Wall mounting fits traditional door frames and entry vestibules. Rack mounting consolidates multiple readers in a control room or central credential-issuance station (think visitor badge area, emergency operations center). Many competitors require a separate DIN-rail card or external bracket; Kantech integrates both mounts into the form factor, eliminating parts stocking and installation variants.
• 5–16VDC Power Flexibility: Most readers demand a fixed 12VDC supply. The HID-TL5395BL tolerates 5–16VDC, which in retrofit work means you can co-power it from an existing 24VDC access control panel (via a simple regulator) or tap into 16VDC UPS outputs without adding a dedicated 12VDC supply line. That saves $200–400 per location on larger retrofits.
• HID Credential Ecosystem: The reader natively supports HID proximity 125kHz cards and fobs. If your organization already owns thousands of HID badges, this reader means zero re-badging cost. Credential provisioning is handled entirely in the controller, not the reader—further reducing deployment complexity.

Deployment Considerations:

• The HID-TL5395BL is a passive proximity reader—it does not perform authentication, store credentials, or log access locally. All logic resides in the downstream access control panel. If you need edge authentication or offline credential verification, integrate this reader with a smart panel (like newer Kantech controllers with onboard authentication) or consider a network-based reader (Salto NX, Honeywell NetAXS).
• Read range on proximity readers is typically 2–4 inches. Users must present badges directly to the reader faceplate. If you require long-range credentials (RFID wristbands read from 12+ inches), this reader is not suitable; you'll need a specialized long-range reader or a mobile credential platform.
• Wiegand output is unidirectional—the reader transmits bit strings to the controller, but the controller cannot communicate back to the reader. If you need two-way communication (e.g., to update the reader's credential database or adjust read sensitivity remotely), a network-capable reader or a gateway is required.
• The 26-bit Wiegand format carries site code + card number, but no timestamp or sequence data. All audit trail and access logging happens at the controller. If your compliance or forensic requirements demand reader-level logging, this reader needs a supporting panel with robust transaction logging (most modern Kantech panels do this natively).
• Mounting cutouts and wiring are standardized for the ThinLine II form factor. If replacing an older ThinLine I or proprietary reader, verify that doorway cutouts align; ThinLine II dimensions are well-documented, but legacy installations sometimes had non-standard recesses. A site visit before ordering minimizes retrofit surprises.

The Kantech HID-TL5395BL is the right choice for integrators specifying straightforward, Wiegand-compatible access control on existing or new Kantech platforms. It's especially valuable in retrofit scenarios where facility managers want proven hardware, backward compatibility, and minimal software overhead. For deployments where mobile credentials, cloud management, or edge authentication are strategic, explore networked alternatives. For core door-access security on Kantech-standard installations, this reader delivers reliability and cost-efficiency. More options in the Kantech catalog.
