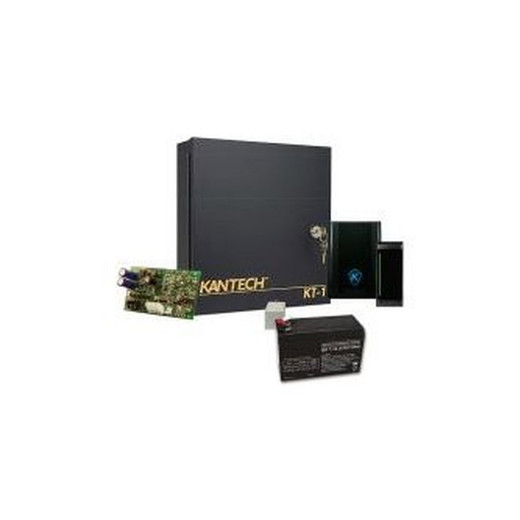

Kantech EK-1M-MTM Access Control Expansion Kit with Controller
The Kantech EK-1M-MTM (often searched as EK 1M MTM) is a modular access control expansion solution engineered for organizations deploying or scaling multi-door credential management across distributed facilities. This kit pairs the KT-1-M core controller with the KT-MUL-MT expansion module, allowing you to grow door capacity without replacing your primary control infrastructure—a meaningful cost and downtime advantage in phased rollouts.
Key Components & What They Deliver
- KT-1-M Controller: The processing core that handles credential verification, access logic, and policy enforcement. Centralizing this on a single platform means one set of credentials, one audit trail, and one policy framework across all connected readers—eliminating the chaos of managing multiple standalone controllers.
- KT-MUL-MT Expansion Module: Extends reader and door capacity without swapping out the controller. When your facility grows from 4 doors to 8, or you add a new building wing, the module lets you plug in additional readers and doors without a hardware fork-lift.
Core Capabilities
- Modular expansion architecture: Add door and reader capacity as your facility scales. You avoid the cost and installation time of deploying a completely new controller for each expansion phase.
- Multi-door & multi-reader support: Handle complex facility layouts—warehouses with loading bays, office parks with separate buildings, or campuses with distributed access points—all from one credential database.
- Centralized credential management: Issue, revoke, or modify access permissions from one administrative interface. Changes propagate across all connected doors instantly, reducing the risk of orphaned or conflicting credentials.
- Multiple authentication methods: Support for badge readers, keypads, biometric terminals, and mixed-credential workflows. Flexibility to use the reader technology that fits each deployment zone.
- Audit logging & compliance reporting: Comprehensive event recording—every door open, failed credential, and access denial—stored locally for forensics and regulatory compliance (SOX, HIPAA, PCI-DSS requirements).
- Controller redundancy & failover: For mission-critical deployments, configure backup controllers to maintain access control if the primary unit fails. You keep the facility operating even during a hardware fault.
Integration & Compatibility
The EK-1M-MTM is designed to integrate with existing access control infrastructure and Kantech system networks. If you're upgrading a Kantech installation or adding satellite facilities to an existing system, this kit fits into the same credential and policy framework. Professional integrators deploying phased rollouts benefit from the modular design—you can implement security zone by zone without forcing a big-bang cutover.
Typical Deployment Scenarios
- Commercial multi-tenant buildings requiring independent tenant access with central audit oversight.
- Warehouse and logistics facilities adding dock doors, secure storage areas, or office annexes over time.
- Educational campuses expanding from one building to multiple distributed structures.
- Enterprise IT deployments needing centralized credential management across branch offices.
- Regulated environments (healthcare, finance, pharma) where audit trails and access logs are non-negotiable.
What to Consider
The modular design is efficient for incremental growth, but you need to plan the initial KT-1-M capacity and the total number of expansion modules required across your facility roadmap. Oversizing controllers is cheaper than undersizing and replacing later. Work with your integrator to map current and projected door counts before ordering the kit.
Frequently Asked Questions
Q: Can I use the EK-1M-MTM to replace an older standalone controller?
A: Yes, the kit is designed for system upgrades. Work with your integrator to migrate credentials and policies from the legacy system to the KT-1-M. Migration typically requires planning to avoid access disruptions.
Q: How many expansion modules can one KT-1-M controller support?
A: Refer to the Kantech KT-1-M controller specifications for maximum module capacity. Your integrator can confirm the limit based on your facility's door count and reader configuration.
Q: Does the EK-1M-MTM support keypad, badge, and biometric readers together?
A: Yes, the system supports multiple authentication methods. You can deploy mixed reader types (badge, keypad, biometric) across different doors and credential types on the same controller.
Q: What happens if the KT-1-M controller fails?
A: In a failover configuration, a backup controller takes over. Without redundancy configured, doors revert to fail-safe mode (locked or unlocked, depending on your policy). Always discuss failover requirements with your integrator before deployment.
Q: Is the EK-1M-MTM compatible with third-party readers or VMS software?
A: Kantech systems support industry-standard reader protocols. Verify reader and VMS compatibility with your integrator—not all third-party devices may integrate without custom configuration.
Q: What's the typical lead time for the EK-1M-MTM?
A: Lead times vary by distributor and inventory. Contact your authorized Kantech dealer for current availability and delivery timelines.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Kantech EK-1M-MTM is a workhorse for integrators scaling access control into multi-site deployments. The modular architecture—KT-1-M core plus KT-MUL-MT expansion—means you're not forced into a forklift migration when adding doors. That matters on the ground: you commission Phase 1 (say, main office, 4 doors), then 18 months later Phase 2 (warehouse annex, 6 more doors) attaches to the same credential database and audit trail without rebuilding the control logic.
Technical Highlights:
- Centralized credential database: One set of badge records, one revocation list, one access policy framework across all connected doors. Changes propagate instantly to every reader—no orphaned credentials left in subsystems.
- Audit logging & compliance support: Comprehensive event records (open, denial, tamper) stored on the controller for forensics and regulatory proof. Critical for healthcare, pharma, and financial environments where access trails are audit requirements.
- Multi-reader type support: Badge, keypad, biometric, or mixed—the controller delegates reader protocol handling to each expansion module. Deploy the right reader type per access zone without forcing a single reader standard across the facility.
Deployment Considerations:
- Size the KT-1-M controller upfront: once you hit its expansion module capacity limit, you'll need a second controller. Plan your 5-year door roadmap and confirm the controller can hold that many modules—it's cheaper to oversize initially than to fork-lift later.
- Failover and redundancy are not automatic: if the KT-1-M fails and you don't have a standby controller configured, doors go to fail-safe mode. That's intentional security design—but you must spec redundancy upfront if your facility cannot tolerate a single point of failure.
- Reader compatibility is your responsibility: Kantech controllers support standard protocols, but verify that third-party biometric or specialty readers actually integrate without custom firmware. Don't assume.
Position the EK-1M-MTM for enterprise campuses, logistics networks, and regulated multi-building facilities where centralized credential management and audit trails are non-negotiable. It's the right choice when you're building access control on a 3–5 year roadmap and want to avoid ripping out the core infrastructure for each expansion phase.
