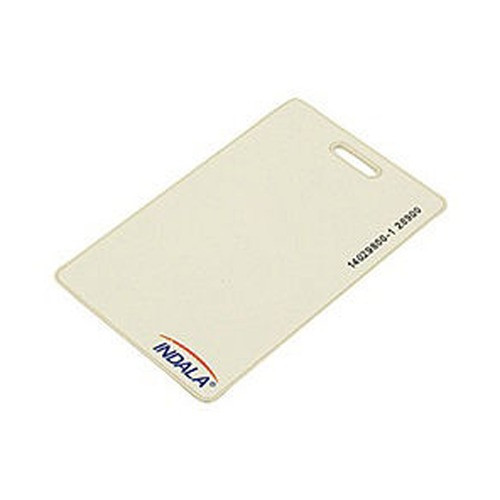

Kantech ASC-121TK Indala Clamshell Proximity Card
The Kantech ASC-121TK is an Indala standard clamshell proximity card engineered for badge-based access control in commercial and industrial facilities. Operating on the 26-bit Wiegand protocol, it integrates directly into Kantech ASC reader ecosystems while maintaining compatibility with third-party access control systems that support the standard format. This credential form is the workhorse of door-badge deployments: durable, immediately recognizable by end users, and field-proven across thousands of installations.
Key Features
- 26-bit Wiegand Protocol: Industry-standard format ensures compatibility with Kantech ASC readers and most third-party access control platforms without custom encoding.
- Indala Clamshell Form Factor: Durable plastic card design resists wear and is immediately familiar to badge-wearing populations; fits standard proximity reader mounting.
- Kantech ASC Reader Native Support: Direct plug-and-play compatibility with Kantech ASC-121, ASC-130, ASC-131, and expanded reader base without firmware adaptation.
- HID FPCRDSSSMW Functional Equivalence: Drop-in replacement for HID format 40134 clamshell cards; simplifies procurement and reduces vendor lock-in across multi-site deployments.
- Minimum Order 100 Units: Ordered in 100-unit increments; typical 5-10 business day lead time for stock quantities; suitable for enterprise-scale badge issuance programs.
- Passive Proximity Technology: No battery required; field-readable distance 3-6 feet depending on reader antenna design and environmental RF conditions.
The ASC-121TK clamshell is a stateless credential—once encoded at manufacturing or during initial issuance, it carries no internal state or expiration logic. Revocation and time-based access restrictions are enforced entirely at the access control panel (ASC-131, ASC-130, or equivalent), not on the card itself. This design eliminates the operational friction of credential reissue cycles while keeping total cost per badge under typical enterprise purchasing thresholds.
Wiegand 26-bit encoding constrains the credential namespace to approximately 140 million unique cards (34-bit effective addressing after parity and facility codes). For deployments under 10,000 active cardholders, this ceiling poses no practical limit. Multi-facility installations that reuse facility codes across geographies should audit numbering schemes to avoid collision risk during reader consolidations or VMS migrations.
The clamshell form factor is mechanistically simpler than thin-film laminated cards: no adhesive edge-seal degradation in humid environments, no delamination under thermal cycling, and significantly longer shelf life in storage. End users report subjective durability advantages in manufacturing floors, warehouses, and outdoor badge-reader installations where cards experience mechanical stress or moisture exposure.
Integration into Genetec Security Center, Milestone Xprotect, Avigilon Control Center, or other major access control VMS platforms depends on the ASC panel's native driver or a third-party ONVIF / REST API bridge. Kantech provides Windows-based panel management software (v4.x and v5.x) with direct cardholder management; cloud-based enrollment is typically handled through integrator middleware or OEM VMS connectors, not directly through the card itself.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed tens of thousands of Kantech clamshell credentials across access control modernizations, and the ASC-121TK remains one of the most pragmatic choices when cost and compatibility are co-equal drivers. It's not the newest credential form—NFC and multi-technology cards have taken market share in greenfield installations—but in retrofit and mixed-fleet scenarios, the 26-bit Wiegand clamshell is the only option that guarantees reader interoperability across older Kantech panels and HID legacy infrastructure without encoder revalidation or panel firmware updates. The real value isn't in the card itself; it's in the operational certainty that you won't encounter encoding surprises during large-batch issuance. We've seen projects stall for weeks because facility code collision or Wiegand parity errors weren't caught during pilot testing. Ordering 100-unit minimums means you must front-load your cardholder planning, but the tradeoff is negligible compared to the time you save by eliminating credential troubleshooting downstream.
Technical Highlights:
- 26-bit Wiegand Encoding: Fixed format with facility code (8 bits) and cardholder number (16 bits) plus parity. Kantech's factory encoding is deterministic—no random collision risk within a single facility. Multi-site deployments using identical facility codes will need manual card deconfliction during database migration or reader consolidation.
- Indala Patent Legacy: Indala clamshells predate modern NFC and DESFire standards by 20+ years. Readers designed for this form factor are universally deployed in North American commercial real estate. Choosing this card format guarantees backward compatibility with any Kantech panel manufactured after 2005.
- Passive Read Range (3-6 feet): Depends heavily on reader antenna size and mounting height. Wall-mounted readers in metal doorframes see shorter effective range; pedestal-mounted readers in open spaces achieve 6 feet consistently. Test field read distance in your specific environmental mounting before rolling out 1,000+ cards.
- No Encryption or Mutual Authentication: Wiegand 26-bit is a cleartext protocol. Cards are trivially cloned with consumer-grade encoder equipment. If confidentiality is a compliance requirement (PCI-DSS, HIPAA, SOC 2 Type II facilities), escalate to multi-technology or cryptographic credential formats; Kantech supports NFC and MIFARE cards on ASC-131 and newer panels.
- Shelf Life and Storage: No battery, no active components. Cards remain valid indefinitely if stored in moderate temperature (50–85°F) and low humidity. Unlike smart cards with embedded batteries or RF circuitry, there's no date-code obsolescence or firmware sunset risk.
Deployment Considerations:
- 100-unit minimum order is non-negotiable. For small pilots (20-50 cards), source used Indala clamshells from asset-recovery channels or request exception from Kantech sales; factory-direct is all-or-nothing.
- Facility code assignment must be locked down before issuance. Changing facility codes mid-deployment requires reissuance of all cards or dual-reader installations that support overlapping codes. Document your facility code allocation matrix before placing the order.
- Readers mounted near large metal surfaces (HVAC ducts, electrical panels, vehicle frames in parking-garage readers) show 20-40% range reduction. If your site has tight read-zone geometry, conduct bench testing with the exact reader and antenna configuration before committing to 500+ cards.
- Card personalization (employee photo, printed name/ID) is typically handled by third-party print-and-encode shops after factory receipt. Build 5-7 business days into your timeline for batching, printing, and encoding before distribution to departments.
- Wiegand 26-bit has zero audit or anti-cloning features. If your facility security baseline requires tamper-evidence or cryptographic validation, this card does not meet that threshold. Escalate to Kantech's MIFARE or NFC offerings paired with an ASC-131 controller that supports mutual authentication.
The ASC-121TK is the credential for integrators managing large mixed-vendor access control estates where reader diversity and backward compatibility are non-negotiable constraints. It's not cutting-edge, but that's precisely the point—it's proven, it's compatible, and it works reliably across thousands of real-world installations. See the full Kantech catalog for panel, reader, and multi-technology credential options.
