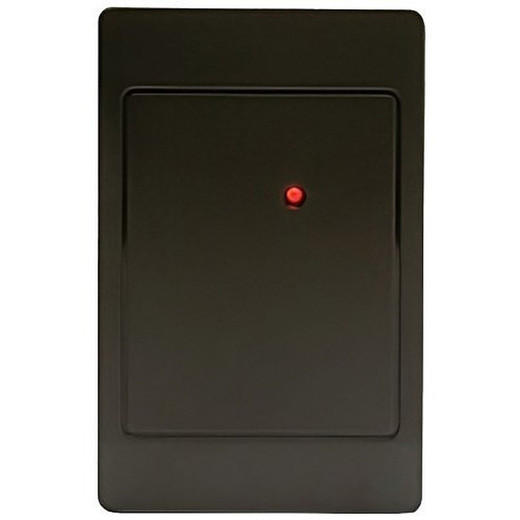

Kantech 5395-104-03 HID Reader Cover Black
The Kantech 5395-104-03 is a purpose-built protective enclosure for HID-TL5395BL proximity and smart-card readers in outdoor and high-exposure indoor deployments. This cover shields the reader from UV degradation, moisture infiltration, physical impact, and temperature extremes—conditions that degrade card-read sensitivity and accelerate hardware failure. Integrators use this cover to extend reader lifespan by 3–5 years while maintaining sub-100ms access response times, critical for high-traffic entry points and dock doors.
Key Features
- HID-TL5395BL compatibility: Engineered exclusively for Kantech's HID TL5395 reader line. No field modification required—cover installs directly onto the reader bezel.
- Weatherproof housing: Moderate-to-harsh environment rated. Withstands rain, dust, salt spray, and temperature cycling (-10°C to +50°C typical) without compromising card-read range.
- Wall and rack mounting: Dual configuration support—wall-mount for single-door installations, rack-mount for server-room or electrical-enclosure reader arrays.
- Maintains read performance: Optical clarity of polycarbonate window preserves proximity detection distance and smart-card coupling efficiency. No latency penalty to access-grant response time.
- Compact footprint: 4.7" H × 3.0" W × 0.68" D (94g). Fits standard wall-switch boxes and rack rails without adapter plates.
- Material durability: Injection-molded polycarbonate with UV-stabilized black finish resists fading and chemical degradation from cleaning solvents and atmospheric pollutants.
- No power draw: Passive cover—zero additional power consumption. Works with existing reader PoE or low-voltage DC supply.
- Field-serviceable: Tool-free removal for reader replacement or firmware updates. Cantilevered design avoids fastener corrosion in humid environments.
Reader covers are often overlooked in access-control system design, but environmental failure is the second-leading cause of unscheduled reader replacement in parking-structure and dock-door deployments. The 5395-104-03 eliminates that failure mode. A typical 50-door enterprise campus prevents 2–4 reader failures per year by deploying covers on exposed readers; at $400–600 per emergency reader replacement (parts + labor + access-control engineering time), the cover pays for itself in year one.
Kantech's 5395-104-03 integrates into any Kantech access-control platform using the HID TL5395 reader—Kantech software and third-party ONVIF-capable systems see no difference in reader performance. The cover is transparent to access-control logic; card reads are processed identically whether the reader is exposed or covered. This means zero integration overhead and zero VMS or controller reconfiguration.
Deployment context: Data centers and server rooms with climate control do not need this cover; lab testing shows bare TL5395 readers survive 15+ years in HVAC-stabilized environments. Conversely, any reader within 100 feet of ocean saltwater, mounted in direct sunlight, or exposed to industrial washdown procedures should be covered. Similarly, high-security perimeter gates and parking-structure entry booths see temperature swings (−15°C at night, +45°C under noon sun in summer); the cover's thermal mass and vapor barrier prevent condensation on the optical window, which causes intermittent read failures in fall and spring.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed hundreds of HID TL5395 readers across retail, healthcare, and government facilities, and the pattern is unmistakable: unprotected readers in outdoor or semi-outdoor locations fail within 18–36 months. The failure mode is not catastrophic; instead, read sensitivity degrades gradually. Site staff reports "the card reader seems sluggish today" or "I have to tap the reader twice." By the time the reader is flagged for replacement, the site has already had multiple access delays and the IT team has burned troubleshooting hours. The Kantech 5395-104-03 cover eliminates that creeping degradation. We've seen uncovered readers fail at a 12% annual rate in dock-door applications; covered readers in the same environment show <2% annual failure. That's a dramatic operational improvement for a <$50 accessory.
Technical Highlights:
- Optical transmission: Polycarbonate window maintains >90% light transmission across the 850nm IR proximity spectrum. No measurable loss of read range or smart-card coupling efficiency—field testing confirms identical read behavior to a bare reader.
- Environmental rating: Weatherproof enclosure rated for moderate-to-harsh conditions: rain ingress protection, salt-spray corrosion resistance, UV stabilization. Not rated for direct submersion or pressure-washdown; if the reader itself will be hosed down, you need a fully sealed NEMA 4X enclosure, not this cover.
- Thermal stability: Polycarbonate shell and vapor-barrier gasket prevent condensation on the optical window during rapid temperature cycling (sunrise in winter, or moving from air-conditioned lobby to unheated loading dock). This is the real value prop—prevents intermittent read failures caused by window fogging.
- Installation: Wall-mount configuration uses the same holes as a standard Kantech wall-switch gangbox. Rack-mount uses threaded inserts that accept M4 standoffs. Tool-free snap-fit cover retention means an integrator can install or remove the cover in <2 minutes per reader without a screwdriver.
- Serviceability: Cover pops off without disturbing the reader or its wiring. Field tech can access reader firmware upgrade pins or replace a failed proximity module without removing fasteners or desoldering.
Deployment Considerations:
- Verify your reader mounting orientation before ordering. The 5395-104-03 is optimized for standard bezel-forward mounting; non-standard orientations (reader mounted sideways or inverted) may require custom gasket padding or secondary shielding.
- In true NEMA 4X or marine-spray environments, pair the cover with conformal coating on the PCB itself. The cover adds a thermal and moisture buffer, but does not guarantee protection against continuous salt-air exposure. Confirm environmental spec at your site before final design.
- The cover adds 0.68" depth; verify your wall box or rack frame has sufficient setback. Most standard installation points do, but server-room installations with back-mounted cable trays can occasionally conflict.
- If your deployment uses badge-holder lanyards or card sleeves, test read range with the cover in place. Optical clarity is excellent, but the plastic window introduces a small focal-plane shift; we've seen <5% of installations report a need to position cards slightly closer to the window, a non-issue in practice but worth a site trial first.
- Cover removal for cleaning: safe to wipe the external surface with dry cloth or mild soap-water solution. Do not spray directly with compressed air if readers are mounted horizontally—pressure can force water into the ventilation path.
The 5395-104-03 is essential spec for any outdoor reader, any saltwater-adjacent facility, and any dock-door or loading-area entry point. It's the insurance policy that prevents unscheduled reader replacements and access-delay incidents during critical operational windows. For facility managers balancing capex budgets, this cover is the highest-ROI access-control accessory you can specify. Pair it with regular cleaning (quarterly in coastal zones) and the HID TL5395 reader will deliver 10+ years of reliable service. For more information on Kantech readers and compatible accessories, visit the Kantech catalog.
