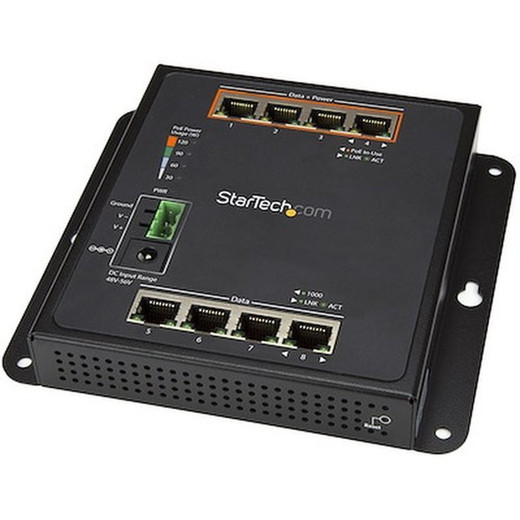

StarTech IES81GPOEW 8-Port Industrial Gigabit PoE+ Switch

Overview

The StarTech IES81GPOEW is a compact, hardened 8-port gigabit switch built for environments where a standard commercial switch would fail. With a -40°C to 75°C operating range, 6kV surge protection, and a 120W PoE budget split across four dedicated PoE+ ports, it sits squarely in the category of infrastructure you deploy once and don't revisit. If you're commissioning a remote gate house, a rooftop camera cluster, a transit platform, or a factory floor node where electrical noise and temperature swings are daily realities, this is the hardware class you need. Explore the full StarTech networking line for complementary switches and connectivity gear.

Key Features

• 120W PoE Budget Across 4 Ports (30W per port): Each of the four PoE ports delivers up to 30W, which means you can drive four PoE+ cameras — including models with IR illuminators, pan-tilt heads, or integrated heaters — without a separate injector or mid-span device. The full 802.3af/at standard is supported, so legacy 802.3af cameras drawing under 15.4W also negotiate correctly.
• 8 Gigabit Ports, 10/100/1000 Mbps Auto-Negotiation: All eight ports run at full gigabit speeds, so even if four are feeding high-bitrate 4K or multi-sensor cameras, you have headroom for uplink and management traffic. Auto-negotiation means you don't need to manually configure speed or duplex when connecting mixed-generation equipment.
• -40°C to 75°C Operating Temperature: This is a meaningful spec for anything mounted outdoors in northern climates or in unheated enclosures. At -40°C the switch is still operational — no heater or climate-controlled cabinet required. Most commercial-grade switches are rated only to 0°C or -10°C, which is a genuine failure point in cold-weather deployments.
• 6kV ESD and 6kV EFT Surge Protection: Industrial environments generate transient spikes from motors, welders, HVAC cycling, and lightning-induced surges on cable runs. The 6kV rating on both electrostatic discharge and electrical fast transients provides a credible buffer against the kind of events that kill commercial-grade switching hardware. This matters most when camera cable runs share conduit with power feeds or pass through outdoor exposure.
• Store-and-Forward Switching Architecture: Every frame is fully received and verified for integrity before forwarding. In camera networks, this eliminates corrupted frames from propagating to the NVR — keeping recording streams clean without relying on VMS error recovery.
• 9K Jumbo Frame Support: Most IP surveillance cameras don't push jumbo frames, but if you're integrating storage or NVR appliances that do, the 9K frame ceiling means no re-fragmentation overhead on the switch. Useful in high-throughput multi-camera NVR architectures.
• IP30 Steel Enclosure: The steel housing resists physical contact with tools and fingers across its ports and internals, making it suitable for industrial panel mounting or semi-exposed rack positions. It's not rated for direct water exposure — pair with an appropriate NEMA or IP66 enclosure if the switch itself will face moisture.
• MTBF Greater Than 100,000 Hours at 25°C: That exceeds 11 years of continuous operation at rated temperature — a relevant figure when calculating total cost of ownership on infrastructure in hard-to-access locations. Less truck-roll risk, fewer unplanned replacements.
• 48–56V DC Input: Designed for DC power environments common in industrial automation, transit, and remote site deployments. Minimum 1A input current requirement is low enough to work with most standard 48V DC industrial power supplies. If you're building around a DC bus, no AC/DC converter is needed at the switch.
• Compact Footprint — 5.3 × 4.6 × 1.0 in, 23.7 oz: The slim form factor fits inside a standard industrial enclosure or DIN-rail cabinet without consuming significant panel space. At under 1.5 lbs, it's light enough for pole-mount junction boxes with weight restrictions.

Integration and Compatibility

The IES81GPOEW conforms to IEEE 802.3, 802.3u, 802.3ab, 802.3z, and 802.3af/at standards, covering the full range of gigabit copper and fiber Ethernet interoperability alongside PoE negotiation. Any 802.3af or 802.3at powered device — cameras, access readers, VoIP handsets, wireless APs — will negotiate power correctly. The switch uses store-and-forward architecture, which is compatible with any VMS or NVR platform receiving UDP or TCP video streams, including Milestone XProtect, Genetec, Avigilon, and others, since frame integrity is handled at the switch layer rather than the application layer.

For planning your camera-to-recorder infrastructure, the NVR category covers compatible recorders. If you need to plan PoE power budgets across larger multi-switch deployments, the PoE switches category includes unmanaged and managed options at higher port counts. For end-device planning, review the PoE deployment guide for port budget calculations and cabling best practices.

Frequently Asked Questions

Q: What is the total PoE power budget on the IES81GPOEW, and how many cameras can it support simultaneously?

A: The IES81GPOEW has a 120W total PoE budget with four PoE-enabled ports, each capable of delivering up to 30W. In practice, you can power four PoE+ cameras simultaneously at full 30W draw each, or more cameras if they draw less (standard 802.3af cameras use up to 15.4W per port).

Q: Is the IES81GPOEW suitable for outdoor installation without an enclosure?

A: The IES81GPOEW carries an IP30 rating, which protects against solid object contact but provides no protection against water, rain, or dust ingress. For outdoor use, it must be installed inside a rated weatherproof enclosure (NEMA 3R or better, or IP66 equivalent). The operating temperature range of -40°C to 75°C makes it well suited for outdoor cabinet installations in extreme climates.

Q: What input power does the IES81GPOEW require?

A: The switch requires a 48–56V DC supply at a minimum of 1A input current. It does not accept AC power directly and is intended for DC-powered industrial environments. A compatible 48V DC industrial power supply is required if not already present in the installation.

Q: Does the IES81GPOEW support managed switching features like VLANs or QoS?

A: Based on available specification data, the IES81GPOEW is an unmanaged switch. It does not support software-configurable VLANs, QoS prioritization, or SNMP management. If your deployment requires traffic segmentation or bandwidth management, consider a managed industrial switch instead.

Q: What is the warranty on the IES81GPOEW?

A: The IES81GPOEW includes a 2-year manufacturer warranty.

Q: How does the surge protection on the IES81GPOEW benefit a camera installation?

A: The switch provides 6kV ESD and 6kV EFT surge protection on its ports. In industrial environments or outdoor camera runs where cable is exposed to electrical transients — from nearby motors, HVAC equipment, or lightning-induced surges on long cable runs — this protection level helps prevent port damage or switch failure that would take down an entire camera cluster.

Ted Perry

The spec that stands out most to me on the IES81GPOEW is the -40°C to 75°C operating range combined with the 6kV surge protection. These aren't marketing numbers — they're the difference between hardware that survives a Minnesota January in an unheated cabinet and hardware that fails in February taking your entire camera cluster offline. I've seen integrators spec commercial-grade switches on outdoor sites to save $40 and then pay for an emergency service call when the first cold snap hits.

Technical Highlights:

• 120W / 4-Port PoE+ Budget: 30W per port covers virtually every PoE+ camera on the market, including dual-sensor units and IR-heavy bullet cameras with integrated heaters. You're not going to hit a power ceiling with standard surveillance cameras on this switch.
• MTBF >100,000 Hours: At rated temperature, that's over 11 years of continuous operation. For a remote-site or pole-mount installation where a service visit costs more than the switch itself, this reliability spec justifies the hardware class.
• Store-and-Forward Architecture: Every frame is integrity-checked before forwarding. In practice, this keeps corrupted frames off your NVR's recording stream — fewer artifacts, cleaner forensic footage, less VMS error recovery overhead.

Deployment Considerations:

• The DC-only 48–56V input is a real planning constraint. If your site runs AC power to the cabinet, budget for a quality 48V DC industrial power supply — don't cheap out here, since a noisy supply will undermine the switch's surge protection advantage.
• IP30 is not weatherproof. The IES81GPOEW must live inside a sealed enclosure if it's going anywhere near moisture. Factor in enclosure cost and airflow when sizing the cabinet, especially since the operating ceiling is 75°C — passive convection matters in sealed metal boxes in summer.

This switch is the right call for transit platform camera nodes, utility substation monitoring, cold-storage facility perimeter coverage, or any four-camera cluster that needs to survive electrical noise and temperature extremes without managed complexity. If you need VLANs or remote SNMP monitoring, step up to a managed industrial switch — but for straightforward plug-and-power hardened infrastructure, the IES81GPOEW is well-positioned.
