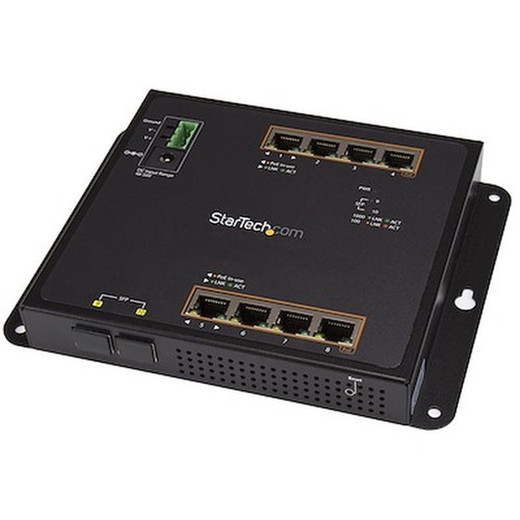

StarTech IES101GP2SFW 8+2 Port Industrial PoE+ Gigabit Switch

Overview

The StarTech IES101GP2SFW is a purpose-built industrial Gigabit PoE+ switch designed for deployments where a standard commercial switch would fail — think outdoor enclosures, factory floors, transit stations, and perimeter surveillance runs where temperatures swing far outside the 0–50°C comfort zone of typical IT gear. With 8 RJ45 PoE+ ports and 2 SFP uplink slots in a compact steel enclosure, it handles both the power delivery and fiber uplink needs of a mid-size PoE switch installation without requiring a separate injector or media converter. If you're designing a outdoor IP camera run or an edge-of-network node that has to survive real industrial conditions, the IES101GP2SFW belongs on the short list.

Key Features

• 200W Total PoE+ Budget Across 8 Ports: Each of the 8 RJ45 ports delivers up to 30W (IEEE 802.3at PoE+), with a shared pool of 200W. That's enough headroom to run 6–7 full-draw PoE+ cameras simultaneously — and with most IP cameras drawing 10–18W in normal operation, realistically you'll power all 8 without throttling. No separate power injectors required, which simplifies wiring in cabinet-constrained spaces.
• -40°C to 75°C Operating Range: While commercial switches derate or shut down in freezing temps, the IES101GP2SFW maintains full operation from -40°C to 75°C. That covers arctic cold storage, rooftop enclosures in desert climates, and unheated outdoor junction boxes — environments where a standard managed switch is simply the wrong tool. Storage temperature extends to 90°C, so even a sun-baked enclosure during shipping won't damage the hardware.
• Redundant DC Power Input (48–56V DC): Dual power input accepts 48–56V DC at a minimum of 1A, allowing you to wire a backup DC supply in parallel. If your primary PSU fails, the switch stays online — critical in surveillance or industrial control applications where a network outage means a gap in coverage or a process halt. Size your DC supplies accordingly: a 200W PoE budget at 48V draws roughly 4.2A under full load.
• 2 SFP Uplink Ports: The dual SFP slots let you run fiber to the upstream switch or NVR — important when your IES101GP2SFW is installed in a remote cabinet 200+ meters from the core network where copper won't reach. Fiber also eliminates ground loop issues that plague long copper runs in industrial settings.
• IP30-Rated Steel Enclosure with ESD Protection to 6kV: IP30 means the chassis is protected against solid objects (tools and fingers) but is not splash-proof — deploy it inside a sealed junction box or panel if the environment has moisture. The 6kV ESD protection rating matters in industrial and transit environments where electrostatic discharge from machinery or human contact is a real threat to sensitive electronics.
• DIN Rail and Wall Mount Options: The switch ships ready for DIN rail installation — standard in control panels and industrial enclosures — and also supports wall mounting for smaller telecom closets or junction boxes. At 1.4 lb and 5.3 × 7.0 × 1.0 inches, it fits into tight spaces without hogging rail space.
• Store-and-Forward Switching Architecture: Every frame is fully received and checked for errors before forwarding. In noisy industrial environments — near VFDs, motors, or switching power supplies — this matters: the switch won't pass corrupted frames downstream to your NVR or video management system, reducing false packet loss alarms and maintaining stream integrity.
• 500,000+ Hour MTBF: At over 57 years of calculated mean time between failures, the IES101GP2SFW is spec'd for long-term unattended deployment. In surveillance infrastructure buried in wall cavities, mounted on poles, or installed in remote utility rooms, that longevity translates to fewer emergency site visits.
• 10/100/1000 Mbps Auto-Negotiation: All 8 RJ45 ports auto-negotiate from 10 to 1000 Mbps, so legacy 100Mbps cameras and new Gigabit endpoints coexist on the same switch without manual configuration. The SFP uplinks run at Gigabit, providing ample backhaul for aggregated camera streams.

Integration and Compatibility

The IES101GP2SFW fits naturally into IP surveillance systems and industrial Ethernet networks as an edge access layer switch. Its PoE+ ports are compatible with any 802.3af or 802.3at compliant device — IP cameras, access control readers, VoIP phones, and wireless access points. The SFP uplinks accept standard 1000BASE-SX or 1000BASE-LX SFP modules (sold separately) depending on your fiber type and run length. Because this is an unmanaged switch, there's no VLAN segmentation, QoS configuration, or port mirroring — if your design requires traffic prioritization across camera streams or network segmentation for security zoning, step up to a managed industrial switch. For straightforward plug-and-play camera installs in hardened environments, the unmanaged architecture is a feature: nothing to misconfigure, no firmware to maintain, and no SSH access surface for an attacker to probe. Pair it with a DC UPS or redundant PSU to take full advantage of the dual power input. Review your PoE power planning before committing to load — 200W total with 30W per port means you cannot simultaneously max out all 8 ports.

Frequently Asked Questions

Q: What is the total PoE power budget on the IES101GP2SFW?

A: The IES101GP2SFW provides a total PoE budget of 200W shared across all 8 RJ45 ports, with a maximum of 30W per port (802.3at PoE+). You cannot simultaneously draw 30W on all 8 ports — plan your load accordingly.

Q: Is the IES101GP2SFW managed or unmanaged?

A: It is an unmanaged switch. There is no web interface, CLI, or SNMP management. This makes it simple to deploy with zero configuration, but it does not support VLANs, QoS, or port mirroring.

Q: Can the IES101GP2SFW be installed outdoors?

A: The switch is rated IP30, which protects against solid object ingress but not water or dust. It must be installed inside a sealed, weatherproof enclosure for any outdoor deployment. Its operating temperature range of -40°C to 75°C fully supports outdoor environments once properly housed.

Q: What fiber modules are compatible with the SFP ports?

A: The two SFP uplink ports accept standard 1000BASE-SX (multimode) or 1000BASE-LX (single-mode) SFP transceivers. SFP modules are sold separately — verify compatibility with your specific fiber type and run length before ordering.

Q: What power supply is required for the IES101GP2SFW?

A: The switch requires a 48–56V DC input at a minimum of 1A. It supports redundant power input, so you can wire two independent DC supplies for failover. Under full 200W PoE load at 48V, expect approximately 4.2A draw — size your PSU accordingly.

Q: What is the warranty on the IES101GP2SFW?

A: The IES101GP2SFW carries a 2-year manufacturer warranty.

James Everett

The spec that keeps coming up when I recommend the IES101GP2SFW is the -40°C to 75°C operating range paired with redundant DC power input. Those two together solve the two most common failure modes in remote surveillance nodes: thermal shutdown in extreme environments and single-point PSU failure. If you're building a camera network inside an outdoor enclosure in a northern climate — or a hot desert installation — this switch handles conditions that would cause most commercial-grade hardware to derate or alarm out.

Technical Highlights:

• 200W PoE+ Budget: 30W per port across 8 ports gives you full PoE+ headroom for PTZ cameras, multi-sensor heads, or heated camera housings that draw near the top of the 802.3at spec — without needing a separate injector rack.
• 6kV ESD Protection: In industrial environments near variable frequency drives, conveyor systems, or high-voltage switching equipment, 6kV ESD protection is a meaningful spec — not just a checkbox. Unprotected switches in those environments fail prematurely from accumulated discharge events.
• 500,000+ Hour MTBF: That calculates to over 57 years MTBF. In practice it means this switch is spec'd for set-and-forget deployment in locations where a truck roll for a failed switch is expensive — remote utility substations, perimeter fence lines, elevated pole mounts.

Deployment Considerations:

• The IP30 rating is the most important install constraint: this switch needs to live inside a NEMA 4X or IP66-rated enclosure for any outdoor or wet-area deployment. The temperature rating is excellent; the moisture protection is not — plan your enclosure selection before you order.
• At 200W total shared budget, running 8 ports at simultaneous full 30W draw (240W theoretical) will exceed the budget — the switch will throttle lower-priority ports. Audit your device power draw before finalizing port assignments, especially if you're mixing PTZ cameras with fixed cameras on the same switch.

The IES101GP2SFW is the right call for perimeter surveillance at transit hubs, water treatment facilities, and cold-climate industrial sites — anywhere the combination of wide thermal range, redundant power, and industrial ESD tolerance matters more than managed-switch feature depth.
