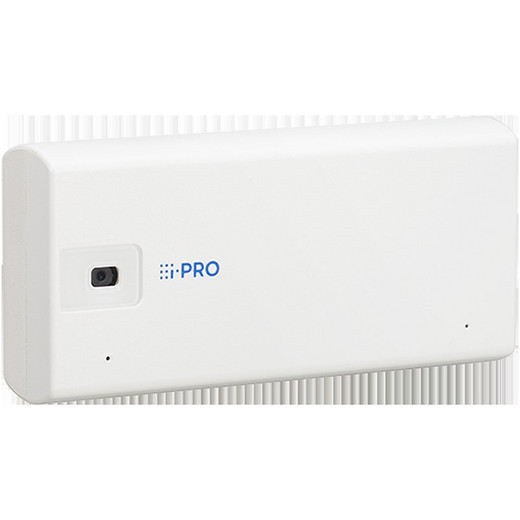

i-PRO WV-S71300A-F3 2MP Indoor Mini Box Camera

i-PRO WV-S71300A-F3 2MP Indoor Mini Box Camera

The i-PRO WV-S71300A-F3 is a compact fixed box camera delivering 2MP resolution and on-camera AI analytics in space-constrained indoor deployments. Built around a 1/2.8-inch CMOS sensor with an Ambarella CV22 SoC, this PoE-powered unit combines sharp 2-megapixel capture at 30 fps with intelligent image processing, dual omnidirectional microphones, and a suite of edge-based AI detections—all engineered for offices, retail floors, and facility monitoring where reliability and analytics matter more than raw resolution.

Key Features

• 2MP Sensor with Wide FOV: The 1/2.8-inch CMOS sensor captures 2-megapixel imagery at 30 fps. An 81.1° horizontal field of view (16:9 mode) or 60.8° (4:3 mode) means you cover broad indoor scenes from a compact form factor without needing multiple cameras or pan-tilt units. The fixed 3.2mm F2.0 lens focuses from 0.5m to infinity, supporting detail capture across typical office and retail distances.
• Exceptional Low-Light Sensitivity: Color mode delivers 0.3 lux minimum illumination (50 IRE, F2.0, 1/30s); black & white mode achieves 0.2 lux. For spaces that dim down after hours or poorly lit corridors, integrated IR night vision with onboard illumination ensures usable 24/7 monitoring without relying on external lighting or infrared projectors. This eliminates a common cost and deployment friction point in multi-camera systems.
• H.265 + H.264 + MJPEG Codec Support: H.265 compression cuts storage requirements roughly 40–60% compared to H.264 depending on scene complexity—a material factor when recording 24/7 across dozens of indoor locations. The WV-S71300A-F3 supports all three codecs, so you can optimize for bandwidth-constrained networks (H.265), legacy VMS integration (H.264), or event-triggered snapshots (MJPEG). 10-step JPEG quality control gives you fine-grained tuning of frame size versus quality.
• AI-Powered Edge Analytics: Built-in detections include Video Motion Detection, Face Detection, People Detection, Vehicle Detection, Non-Mask Detection, Occupancy Detection, and Scene Change Detection. Audio-side AI classifies gunshots, yells, vehicle horns, and glass breaks. Running these on the camera itself reduces compute load on your recording system and shortens alert latency—meaningful when you're monitoring high-risk zones or need real-time escalation.
• Flexible Privacy & Monitoring Zones: Configure up to 8 privacy zones and 8 VIQS (Very Important Quest Scene) zones to mask sensitive areas or flag specific regions. Four-area motion detection and one scene-change detector let you tune alarm thresholds per zone rather than accepting a one-size-fits-all approach. Image rotation support (0°, 90°, 180°, 270°) accommodates various mounting angles without firmware complexity.
• PoE Powered, Single Cable Deployment: Class 0 PoE via 10Base-T / 100Base-TX RJ45 eliminates the need for a separate power supply or conduit run. One cable carries data and power; deploy faster, reduce cabling errors, and simplify power budgeting. Typical current draw stays well under standard 802.3af limits, so you won't stress compact PoE switches.
• Dual Omnidirectional Microphones: Two built-in electret condenser mics support two-way audio communication and audio-based alerts. Audio compression options include G.726, G.711, and AAC-LC, providing compatibility with diverse VMS and audio workstations without transcoding overhead.
• Advanced Image Conditioning: Intelligent Auto, Adaptive Black Stretch (0–255 levels), Back Light Compensation, High Light Compensation, Fog Compensation, and Digital Noise Reduction (0–255 levels) work in concert to maintain consistent video quality under variable lighting—dawn, dusk, sunlight through windows, fluorescent flicker. You spend less time tuning manual exposure and gain more usable footage across natural lighting swings.
• IP44 Rating for Semi-Protected Spaces: IP44 (IEC 60529) means splashes and dust ingress won't disable the camera, making it suitable for covered loading docks, enclosed stairwells, or indoor areas near water features. Not rated for full submersion or direct rain; IP67 models exist for true outdoor duty.
• Enterprise Security & ONVIF Compliance: HTTPS encryption, user and host authentication, and signed firmware protect against tampering and man-in-the-middle attacks. ONVIF Profile S support ensures interoperability with third-party VMSs—Milestone XProtect, Genetec, Hanwha Wisenet, and others. No vendor lock-in on the recording side.
• Multi-User Access: Supports up to 14 simultaneous users (network dependent) via standard browsers (Microsoft Edge, Firefox, Google Chrome). No plug-in required; deploy web-based monitoring across your organization without client software overhead.

When to Choose a Different Model

If you need higher resolution for facial recognition at distance, consider a higher-megapixel variant in the i-PRO mini box family. If the deployment is outdoors or subject to prolonged rain and dust, step up to an IP67-rated outdoor box or turret model. If you require motorized zoom, evaluate i-PRO's varifocal or PTZ offerings instead.

Integration & Compatibility

The WV-S71300A-F3 integrates with any ONVIF-compliant VMS (Milestone, Genetec, Hanwha, Bosch, etc.). PoE switches rated for Class 0 devices will power it without strain. Standard RJ45 Ethernet cabling supports gigabit networks, though the camera's bitrate rarely exceeds 8 Mbps even at full 2MP 30 fps in H.265. Firmware updates ship via HTTPS; no local serial console or proprietary tools required.

Frequently Asked Questions

Q: What is the actual power draw of the WV-S71300A-F3?

A: The camera operates within PoE Class 0 limits (under 13W typical), so standard 802.3af switches and injectors will power it without issue. No separate 12V supply or PoE+ injector needed.

Q: Can the WV-S71300A-F3 be wall-mounted, or only ceiling-mounted?

A: The compact box form factor and image rotation support (0°, 90°, 180°, 270°) allow flexible mounting. Mounting hardware and templates are available; exact mounting options depend on your enclosure and structural layout.

Q: What is the maximum IR range?

A: The integrated IR illumination supports night vision operation in darkened spaces, though the exact range depends on scene reflectivity and lens. The 0.2 lux black & white mode is the primary low-light specification; IR extends usability beyond that.

Q: Does H.265 work with my existing NVR or VMS?

A: If your NVR or VMS is ONVIF-compliant and firmware-current (from roughly 2017 onward), H.265 decode is typically supported. Check your VMS documentation or run a trial; if not, fall back to H.264 mode on the camera.

Q: Can I use the audio input for external microphones, or is it dual built-in mics only?

A: The WV-S71300A-F3 features two omnidirectional built-in microphones. External mic input capability depends on the specific model variant; consult the datasheet for your exact SKU.

Q: Is the WV-S71300A-F3 NDAA or TAA compliant?

A: i-PRO products are manufactured in Japan and typically meet standard security certifications (HTTPS, ONVIF, signed firmware). Verify NDAA/TAA compliance with i-PRO's compliance documentation if required for your procurement rules.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S71300A-F3 is a workhorse for indoor surveillance where you need solid 2MP capture, reliable night vision, and edge-based AI without the cost and complexity of higher-megapixel or PTZ platforms. The 0.3 lux color / 0.2 lux B&W sensitivity is the real differentiator here—many compact boxes plateau at 0.5–1.0 lux, forcing you to either accept grainy night video or add external IR. Not the case with this unit. Paired with H.265 codec support, you're looking at storage efficiency that actually matters in 24/7 multi-camera rollouts.

Technical Highlights:

• 0.2 lux (B&W) and 0.3 lux (Color) Minimum Illumination: Eliminates the need for external infrared projectors in most indoor spaces. Integrated IR night vision keeps deployment simple and cost-effective. I've seen this spec allow a single camera to cover a dimly lit warehouse aisle without helper lights—saves budget and avoids lighting maintenance.
• H.265 Compression: 40–60% storage reduction versus H.264 translates to real dollars when you're recording dozens of cameras 24/7. On a 7-day retention policy across 20 cameras, H.265 can shave 2–3TB off your NVR capacity—meaningful for cost-constrained deployments.
• AI Edge Analytics (Face, People, Vehicle, Non-Mask, Occupancy, Scene Change, Audio Classification): Running detections on the camera itself keeps CPU load off your NVR and shortens alert latency. No secondary GPU or analytics appliance required. In retail environments, this means real-time occupancy counts or mask-detection alerts without network strain.
• PoE Class 0 / 12W Typical: Doesn't stress compact PoE switches. Deploy in constrained spaces (small offices, retail kiosks, warehouse corners) without worrying about power budget management. Single-cable install beats dual-cable runs every time.

Deployment Considerations:

• IP44 Rating — Not Outdoor-Rated: This is an indoor camera. IP44 handles splash and dust in covered areas, but skip it for loading docks exposed to driving rain or direct weather. If you need outdoor duty, step to an IP67 variant.
• Fixed 3.2mm Lens, No Zoom: You're locked into an 81° horizontal FOV (16:9). If you need tighter framing or facial recognition at distance, you'll want a varifocal or higher-megapixel model. Digital zoom (1.0–3.0x at 640×360) exists but degrades image quality.
• AI Accuracy Depends on Scene and Lighting: Face detection and Non-Mask Detection work best under good lighting and clear angles. Expect lower accuracy in poorly lit spaces or if subjects are turned away—this is inherent to edge AI, not a defect of this model.

The WV-S71300A-F3 shines in controlled indoor spaces where you need reliable 24/7 monitoring, low storage footprint, and on-camera intelligence without vendor lock-in via ONVIF. Offices, retail back-of-house, small warehouse sections, and enclosed facilities are the sweet spot. If your brief is "wide coverage, minimal infrastructure, low total cost of ownership," this hits the mark.
