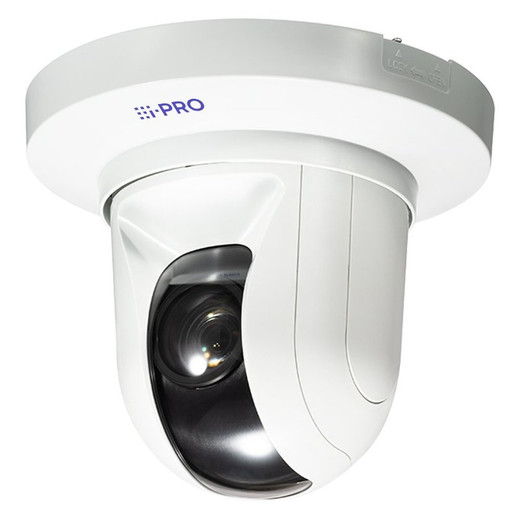

i-PRO WV-S61301-Z2 2MP Indoor PTZ Camera with AI Auto-Tracking
The i-PRO WV-S61301-Z2 is a 2MP (1920×1080) indoor pan-tilt-zoom network camera purpose-built for enterprise surveillance in high-activity environments where an embedded AI engine tracks moving subjects automatically, eliminating the need for manual operator repositioning. This model combines a 21x optical zoom lens with people and vehicle detection analytics to deliver subject framing and continuous tracking across large open spaces—warehouses, manufacturing floors, retail spaces, distribution centers, and corporate campuses where wide-area situational awareness justifies PTZ automation overhead.
Key Features
- 21x Optical Zoom (4.0–84.6mm focal range): Sharp detail across the entire zoom range without digital interpolation, which degrades resolution. In a 150-foot warehouse aisle, you zoom from full-scene overview to facial-level framing for post-incident identification without quality loss—a critical advantage in confined spaces where higher megapixel counts would simply bloat storage without meaningful benefit.
- AI Auto-Tracking Engine: Detects people and vehicles, calculates optimal zoom framing automatically, and continuously tracks moving subjects. This eliminates tedious manual pan-tilt-zoom choreography that consumes operator attention in large open spaces. The camera maintains focus on subjects with minimal dead zones, reducing the workload on security staff during peak hours.
- 2MP Native Resolution (1920×1080): Full HD is sufficient for person identification (face, gait patterns) and vehicle recognition at mid-to-long indoor range. Two megapixels avoids the storage and processing bloat of higher resolutions—meaningful when deploying dozens of PTZ cameras on 24/7 recording schedules.
- 144dB Super Dynamic WDR (Wide Dynamic Range): Simultaneously recovers shadow and highlight detail in extreme backlighting—typical in retail or manufacturing with glass entry walls, skylights, or task lighting creating 100:1 brightness ratios. Aggressive WDR means you won't lose silhouetted subjects against bright windows or overhead detail in shadowed warehouse aisles without constant manual exposure adjustments.
- Day/Night Capability with 1.5m Built-In IR Range: Built-in infrared illumination enables 24/7 surveillance without external lighting. 1.5 meters is modest range but adequate for indoor lobby, dock, or perimeter monitoring where subjects pass within arm's reach of the camera—a practical design choice that avoids the cost and complexity of separate IR arrays.
- 3.7 Million Pan-Tilt Movement Rating: Heavy-duty motor assembly rated for continuous high-frequency tracking. This durability metric indicates engineering for AI-driven automated activity, not occasional manual repositioning. Standard PTZ cameras typically carry 500K–1M movement ratings; this camera is built to handle relentless AI workloads without mechanical fatigue.
- H.265, H.264, MJPEG Compression Support: H.265 reduces bitrate 40–60% versus H.264 depending on scene complexity. For 24/7 recording across multiple PTZ cameras, compression choice directly impacts storage provisioning and network bandwidth—a meaningful cost factor on large deployments.
- PoE Power (Class 0, under 13W): Draws power over standard Ethernet; no separate 12V or 24V supply required. Low power draw won't strain switch power budgets even on fully populated 48-port infrastructure switches, simplifying installation and reducing cabling complexity.
- Expandable AI Framework: Privacy guard, attribute detection (clothing color, vehicle type), and custom analytics support enable workflow expansion without hardware replacement. Deployments can start with basic people/vehicle detection and scale to multi-attribute analytics as operational needs evolve.
- NDAA Section 889 Compliance and FIPS 140-2 Level 3 Secure Element (EdgeLock SE050F): Hardware-based security (TPM equivalent) prevents firmware tampering and enables encrypted credential storage. Certifications align with federal procurement requirements and reduce compliance review timelines on government or defense-adjacent projects.
When to Choose a Different Model
If you need higher resolution for ultra-long-range facial or vehicle plate recognition, consider a higher-megapixel IP camera variant in the i-PRO surveillance line—though recognize that higher resolution on PTZ platforms increases storage and processing load. If 1.5m IR range is insufficient for your perimeter or outdoor dock environment, you'll need external supplemental lighting or a model with longer-range IR capability. If your deployment requires ultra-wide field-of-view coverage without zoom, evaluate a fixed-lens box or turret camera instead of PTZ automation.
Integration & Compatibility
The WV-S61301-Z2 (often searched as WV S61301 Z2) supports standard ONVIF Profile S/T/G, enabling integration with network video recorders and third-party VMS platforms without proprietary plug-ins. PoE power simplifies infrastructure—pair with a managed PoE switch to consolidate power and data on a single cable run. For deployments requiring credential encryption and secure boot, leverage the built-in FIPS 140-2 Level 3 hardware security module to meet enterprise IT governance requirements.
Storage & Bandwidth Planning
H.265 compression at 2MP produces roughly 2–4 Mbps bitrate depending on scene motion and quality settings. At maximum zoom and high frame rates, plan for 4–6 Mbps per camera on a 24/7 recording schedule. A single WV-S61301-Z2 recording continuously for 30 days at average bitrate will consume approximately 8–10 TB of storage—use this as a baseline when provisioning your recorder infrastructure for multi-camera deployments.
Deployment Recommendations
Install the WV-S61301-Z2 where operator intervention to reposition the camera creates bottlenecks—warehouse aisles, retail floors during peak hours, transit hubs, or manufacturing lines where manual PTZ control distracts security staff. The 144dB WDR is particularly valuable in spaces with mixed task lighting, skylights, or glass facades. Avoid mounting directly into bright light sources (sunlight through windows) without diffusing shades, as even WDR has limits at extreme brightness ratios. Configure AI analytics to prioritize detection sensitivity for your specific environment—tune people detection for your facility's typical crowd density to avoid false-positive tracking.
Frequently Asked Questions
Q: Is the WV-S61301-Z2 NDAA Section 889 compliant?
A: Yes. The camera carries explicit NDAA Section 889 compliance certification, making it eligible for federal procurement and reducing compliance review requirements on government or defense-adjacent projects.
Q: What is the maximum infrared range on the WV-S61301-Z2?
A: The camera has 1.5 meters (approximately 5 feet) of built-in infrared illumination. This range is adequate for indoor lobby, dock, and perimeter monitoring where subjects pass close to the camera, but insufficient for outdoor perimeter surveillance requiring longer-range night vision.
Q: Does the WV-S61301-Z2 work with third-party VMS platforms?
A: Yes. The camera supports standard ONVIF Profile S/T/G, enabling integration with Milestone XProtect, Genetec Security Center, and other mainstream VMS platforms without proprietary plug-ins.
Q: What is the power consumption of the WV-S61301-Z2?
A: The camera draws under 13W via standard IEEE 802.3af PoE Class 0, so it will not strain your switch's power budget even on fully populated infrastructure switches. No separate power supply is required.
Q: Can the WV-S61301-Z2 detect and track both people and vehicles simultaneously?
A: Yes. The embedded AI analytics engine detects both people and vehicles, automatically prioritizing framing and continuous tracking. The expandable AI framework also supports attribute detection (clothing color, vehicle type) for workflow customization.
Q: What compression formats does the WV-S61301-Z2 support?
A: The camera supports H.265, H.264, and MJPEG. H.265 reduces bitrate 40–60% compared to H.264, directly lowering storage and bandwidth costs on 24/7 multi-camera deployments.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WV-S61301-Z2 is a legitimate workhorse for environments where operator fatigue drives surveillance failures. The 3.7 million pan-tilt movement rating tells you this camera is engineered for relentless AI-driven tracking, not occasional manual adjustment—and that durability spec matters when you're running continuous auto-tracking across a warehouse floor during peak hours.
Technical Highlights:
- 21x Optical Zoom (4.0–84.6mm): No digital zoom bloat—you maintain full 2MP sharpness across the entire zoom range. Critical for post-incident identification without investing in higher megapixel counts that balloon storage and processing load.
- 144dB Super Dynamic WDR: Handles extreme backlighting (100:1 brightness ratios) without manual exposure tweaking. Real benefit in retail environments with mixed task lighting and glass facades, or manufacturing facilities with overhead lighting extremes.
- 3.7M Pan-Tilt Rating vs. standard 500K–1M: 7x durability margin over commodity PTZ cameras. This matters on deployments running continuous AI tracking 8–16 hours daily. Cheap motors fail under that load; this one won't.
- H.265 Compression (40–60% bitrate reduction): On a 24/7 deployment recording 4–6 Mbps average per camera, H.265 saves you roughly 3–4 TB per month per camera. Scale that across a 10-camera warehouse and you're recovering 30–40 TB monthly—real money on storage provisioning.
Deployment Considerations:
- IR Range Limitation: 1.5 meters is adequate for indoor dock, lobby, and aisle monitoring, but insufficient for outdoor perimeter or large-volume facility night work. Don't force this camera into a scenario requiring 15–30m IR range; you'll be disappointed.
- 2MP Adequate, Not Overkill: The sales team might push you toward 4MP or higher. Resist—on indoor PTZ, you're framing subjects at closer ranges where 2MP delivers facial/vehicle detail without storage waste. Higher resolution adds complexity, not clarity.
- PoE Class 0 Power Draw: Under 13W is a win, but recognize that sustained AI tracking and high-speed PTZ movement may spike bitrate and power momentarily. Plan your PoE switch accordingly; avoid running this camera on a passive injector.
- FIPS 140-2 Level 3 (EdgeLock SE050F): Hardware TPM prevents firmware tampering and stores encrypted credentials—valuable if your compliance team requires it, but don't over-spec for simple retail deployments. Use it where you need it.
Position the WV-S61301-Z2 in high-traffic indoor facilities—warehouses during shift changes, retail floors during peak hours, manufacturing lines—where manual operator repositioning creates security gaps or distracts staff. Pair it with an NVR platform that supports ONVIF PTZ control to enable operator override when needed. Skip this camera for outdoor perimeter work, ultra-long-range identification scenarios, or facilities where static-camera coverage is sufficient.
