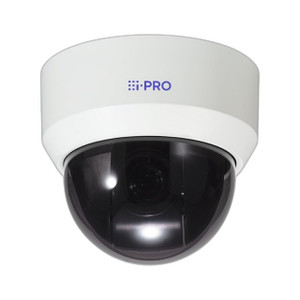

i-PRO WV-U65302-Z2 2MP AI PTZ Outdoor Dome Camera

i-PRO WV-U65302-Z2 2MP AI PTZ Outdoor Dome Camera

The i-PRO WV-U65302-Z2 is a professional-grade 2MP PTZ dome camera engineered for outdoor surveillance deployments requiring extended-range observation with exceptional weather durability. Built around a 21x optical zoom lens, Ambarella CV25M processing, and 144dB dynamic range technology, this camera delivers reliable color and monochrome capture across extreme lighting conditions and temperature ranges spanning −30°C to +55°C. Purpose-built for security integrators deploying perimeter monitoring, large-area surveillance, and critical infrastructure protection in demanding environments.

Key Features

• 21x Optical Zoom with Extended Detection Range: 4.0–84.6mm focal length delivers identification at 129.4m in telephoto mode and detection capability beyond 1,293m—eliminating the need for multiple fixed cameras across wide perimeter zones. Horizontal field of view spans 77° (wide) to 3.7° (telephoto), matching most large-area outdoor requirements without coverage gaps.
• Advanced Low-Light Sensor Performance: 1/2.8-inch CMOS sensor captures color at 0.001 lux (F1.6, 16/30s integration) and monochrome at 0.0004 lux with built-in switchable IR, eliminating the need for supplemental lighting in dark parking lots, perimeters, or loading areas. Shutter speeds from 1/10,000s to 1/30s enable motion freezing in bright conditions or low-light sensitivity in night mode.
• Extreme Dynamic Range (144dB Super Dynamic): Adaptive black stretch and 32-level dynamic range control eliminate blown highlights and crushed shadows in mixed-lighting scenes—critical when panning from sunlit to shadowed areas. Integrated backlight, high-light, and fog compensation preserve forensic-quality video across variable weather without manual adjustment.
• Full PTZ Control with 256 Presets: 360° endless pan, −15° to +195° tilt, and preset speeds up to 500°/s (at PoE+) enable rapid repositioning during incident response. Manual control from 0.065°/s supports smooth tracking and deliberate positioning for forensic-level framing.
• IP66/IK10 Weatherproof Design with Active Anti-Condensation: IP66-rated polycarbonate dome with stainless steel fittings and aluminum die-cast body handles direct rain and dust. Peltier element anti-condensation system prevents internal fogging in coastal or high-humidity environments. Wind resistance rated to 40 m/s (89 mph) and IK10 vandal resistance protect against impact and intentional tampering.
• Intelligent Stabilization and Edge Analytics: Built-in gyro-based image stabilizer compensates for vibration on poles or buildings. Native motion detection across 4 configurable areas, scene change detection, and audio detection trigger alarms without cloud dependency—essential for offline or intermittent connectivity deployments.
• H.265 Compression and Flexible Recording: H.265 codec reduces bandwidth and storage consumption by 40–60% versus H.264, lowering NVR and network switch load when deploying 24/7 multi-camera systems. Also supports H.264 and MJPEG. PoE+ power (18.4W at 54V) connects via single Ethernet run; microSD local recording with pre/post-alarm backup provides redundancy if network fails.
• Enterprise Security and Compliance: FIPS 140-2 Level 3 certified secure element, GlobalSign device certificate pre-installed, 802.1X authentication, and HTTPS/SSL-TLS encryption protect credentials and stream integrity. ONVIF Profile G/S/T compliance ensures integration with Milestone, Genetec, and other VMS platforms without vendor lock-in.

Integration and Compatibility

The WV-U65302-Z2 integrates into standard IP camera architectures via ONVIF Profile G/S/T, supporting real-time event streaming to Milestone XProtect, Genetec Security Center, and other ONVIF-compatible video management systems. 10/100 Base-TX Ethernet and up to 14 simultaneous users accommodate multi-operator control centers. H.265 and H.264 output supports legacy NVRs and modern edge appliances alike, reducing migration risk. Consult your VMS vendor's camera selection guide to verify PTZ control module availability for your platform.

PoE+ power requirement (18.4W) is modest for a PTZ—standard 95W PoE+ injectors or switches power 4–5 units per port, minimizing infrastructure costs. If deploying across 40+ cameras, budget for a dedicated network video recorder or edge NVR to handle simultaneous recording and PTZ command streams.

What's in the Box

Package contents not specified in manufacturer documentation. Verify with your supplier before ordering if mounting hardware, connectors, or installation templates are required for your deployment.

Frequently Asked Questions

Q: What's the minimum light level required for the WV-U65302-Z2 to produce usable color video?

A: Color capture is rated at 0.001 lux (F1.6, 16/30s integration). In practice, this means dimly lit loading docks or parking areas with minimal artificial light will produce color; below 0.001 lux, the camera switches to monochrome with IR for round-the-clock surveillance. The 1/30s shutter is slow enough to gather light but fast enough to avoid excessive motion blur at typical pedestrian speeds.

Q: Can the WV-U65302-Z2 be mounted on a standard 1.5-inch pole?

A: Yes. The camera uses a standard Ø1.5-inch pole mount interface. Verify your pole can support the unit's weight (spec sheet required for exact weight) and wind load at your site's rated wind speed. IK10 rating ensures it resists tampering, but mounting stability depends on pole diameter, material, and foundation.

Q: Does the WV-U65302-Z2 support two-way audio?

A: The camera supports audio input via built-in microphone and G.726/G.711/AAC-LC compression for transmission. Audio output capability (speaker/siren) requires external hardware; verify with your VMS vendor on supported audio routing.

Q: Will the anti-condensation system work in coastal or high-humidity environments?

A: The Peltier element anti-condensation system is designed for high-humidity deployment. It actively heats the dome interior to prevent fogging. However, long-term salt-spray exposure degrades optical surfaces; rinse the dome with fresh water monthly in salt-air locations and apply UV-protective lens coatings if deploying within 500m of ocean.

Q: Is the WV-U65302-Z2 NDAA Section 889 compliant?

A: Manufacturer compliance certifications are not stated in available documentation. Contact the vendor or i-PRO directly for NDAA compliance, TAA eligibility, or restricted-country origin documentation if required for federal or defense procurement.

Q: What is the maximum simultaneous user count for PTZ control?

A: The camera supports up to 14 simultaneous users over the network. For large-scale control centers requiring 50+ concurrent operators, deploy a PTZ management appliance or VMS with user queueing to avoid command conflicts.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-U65302-Z2 (often searched as WV U65302 Z2) is a legitimate workhorse for perimeter and large-area surveillance. The 144dB dynamic range is the spec that matters most here—paired with a 21x zoom and robust IP66 weatherproofing, you're looking at a camera that can pan from harsh sunlight into a shadowed building entrance without losing detail in either extreme. That's not marketing hype; it's what forensic-grade WDR actually delivers.

Technical Highlights:

• 144dB Super Dynamic with adaptive black stretch: Prevents the common PTZ failure mode: panning from a bright sky into shadow and losing facial or plate detail. The 32-level control dial lets you tune this per preset, so perimeter shots and building-entrance views each get optimized exposure.
• 21x optical zoom (4–84.6mm) with 500°/s pan speed: Identification range of 129.4m in telephoto is real; detection beyond 1,293m means you're replacing 2–3 fixed cameras in a single PTZ. The 500°/s preset speed matters in incident response—you're not waiting 4 seconds for the camera to swing to a preset; you're there in under 1 second.
• H.265 + PoE+ (18.4W): H.265 cuts your 24/7 recording footprint roughly in half versus H.264. At 18.4W per camera, you can power 5–6 units from a single 95W PoE+ switch without stranding. That's a real cost win when deploying 20+ cameras across a warehouse perimeter.
• Peltier anti-condensation + IP66: High-humidity environments (loading docks, outdoor storage) are where domes fail. The active heating system keeps the lens clear year-round. IP66 + IK10 means rain, dust, and vandalism aren't your problem; salt spray is (rinse monthly in coastal areas).

Deployment Considerations:

• PoE+ requirement: Standard 802.3af won't cut it. Budget for PoE+ infrastructure. If your switch is 802.3af only, you'll need injectors or an upgrade—factor this into ROI on large deployments.
• Simultaneous user limit (14): In a distributed security operation with 30+ operators, you'll hit contention on PTZ commands. Queue management in your VMS is essential; otherwise, multiple users chasing the same incident cause jitter and missed opportunities.
• ONVIF Profile G/S/T compliance: PTZ control module availability varies by VMS vendor. Milestone and Genetec support it natively, but test your specific version before committing 20 units to a project. One integration miss cascades into all 20.
• Preset-based workflow: The 256 presets are your automation floor. Build out a preset map (entrance, loading dock, roof perimeter, etc.) during commissioning, not after deployment. Each preset can store unique WDR, zoom, and pan speeds—these become your operational templates.

Best fit: large-scale outdoor perimeter or warehouse-edge surveillance where you need identification-level detail at 100m+ ranges, dynamic lighting (sun/shadow transitions), and extreme weather tolerance. Skip this if you're covering a small parking lot or a climate-controlled indoor facility—a fixed 2MP turret or bullet will do the job cheaper. For a distributed logistics operation or critical infrastructure site with outdoor IP camera clusters, the WV-U65302-Z2 earns its seat at the table.
