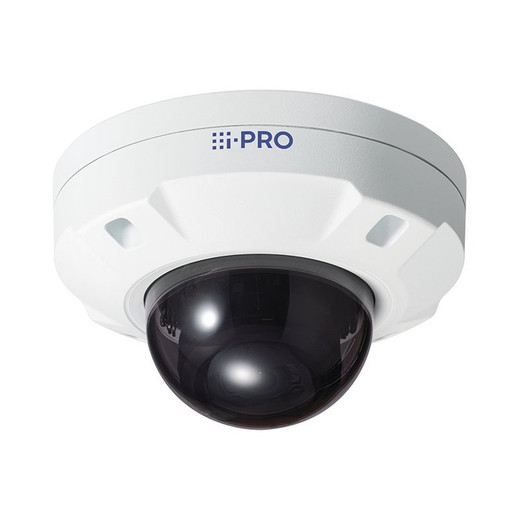

i-PRO WV-S25500-V3LG 5MP Vandal-Resistant Outdoor Dome Camera

i-PRO WV-S25500-V3LG 5MP Vandal-Resistant Outdoor Dome Camera

The i-PRO WV-S25500-V3LG is a 5MP outdoor dome camera built for deployments where image quality, edge-based intelligence, and durability against physical damage are non-negotiable. Rated IK10 for impact resistance and IP66 for weather sealing, this camera integrates an onboard AI processor capable of running three simultaneous analytics applications—eliminating dependency on external servers and reducing system complexity in critical infrastructure, government, and commercial campus environments.

Key Features

• 5MP Resolution (3072 x 2304): Captures investigative detail across wide outdoor areas without camera proliferation. The 1/2.8-inch CMOS sensor balances light sensitivity and pixel density, meaningful when you need to identify faces or license plates from a single vantage point across a parking lot or warehouse perimeter.
• 3.1x Optical Zoom (2.9–9mm Lens): True optical magnification avoids sensor cropping and image degradation—essential in dynamic scenes where you must reframe between distant and nearby subjects without losing clarity. Digital zoom cameras degrade fast; this doesn't.
• 132dB Super Dynamic Range: Simultaneous shadow and highlight detail in mixed-lighting scenarios—a person entering a building from bright sunlight, or parking structures with overhead and ambient light. This single feature often eliminates the need for secondary infrared-only cameras in transition zones.
• 35-Meter Infrared Night Vision with Color Retention: Built-in 850nm LEDs deliver effective range across typical perimeter widths. Color night vision at 0.15–0.20 lux means the camera retains color data in twilight conditions before switching to monochrome, significantly improving facial and vehicle identification when ambient light drops below usable levels.
• IK10 Vandal-Resistant Dome Housing: Withstands intentional impact and tampering without lens or sensor damage—a hard requirement in open-access or high-traffic outdoor locations where casual or deliberate damage risk is real. No protective cage needed; the housing itself is the defense, preserving your field of view.
• IP66 & NEMA 4X Sealing: Dust and direct rain won't compromise internal electronics or connections. NEMA 4X adds stainless steel corrosion resistance, relevant for coastal or chemical-exposure environments; standard IP66 suffices for inland deployments.
• H.265/H.264/MJPEG Compression: H.265 cuts storage and bandwidth consumption by 40–60% compared to H.264 at equivalent quality—a measurable cost factor when recording 24/7 across dozens of cameras. Fallback codecs ensure compatibility with older VMS platforms.
• Onboard AI Processor: Supports facial recognition and custom analytics without VMS overhead. Three simultaneous applications allow parallel detection (face + object + loitering) on a single camera, reducing false alerts and improving forensic search efficiency during incident review.
• FIPS 140-2 Level 3 Cryptographic Hardware: Secure key storage and hardware-backed encryption—uncommon in 5MP cameras and mandatory for federal, defense, and regulated financial deployments. This certification prevents unauthorized firmware replacement and ensures encrypted communications are genuinely protected, not software-only.
• PoE Power (Class 0, Under 13W): Single Ethernet connection for power and data eliminates a separate 12VDC supply run. Under 13W draw fits standard 802.3af switches without dedicated power budget tracking—a practical advantage on retrofits or branch-office networks where PoE budget is tight.
• Two-Way Audio & microSD Backup: Integrated speaker and microphone enable interactive communication at the camera location. Local microSD recording provides redundancy if network connectivity drops—critical for continuous-operation sites where a few hours of lost footage is unacceptable.
• ONVIF Profile S/T/G Compliance: Integrates with third-party VMS platforms (Milestone XProtect, Genetec, Hanwha SmartVMS, etc.) without proprietary middleware, simplifying multi-vendor deployments and protecting your VMS investment.

Integration & Compatibility

The WV-S25500-V3LG is built on the i-PRO IP cameras platform and supports ONVIF Profile S, T, and G, making it compatible with most commercial VMS systems. The onboard AI processor runs vendor-agnostic analytics—you can deploy facial recognition, object detection, or custom rule-based applications without licensing VMS-side analytics modules. When paired with an NVR supporting H.265 playback, the compression efficiency translates directly to reduced storage footprint and archive costs. PoE-powered cameras should be planned alongside a capable PoE-enabled network switch or injector to ensure clean power delivery, especially on long runs to remote outdoor locations.

Deployment Context

This camera excels in open-access outdoor environments—corporate campuses, warehouse perimeters, parking structures, toll plazas, and transit hubs. The combination of optical zoom, color night vision, and weather sealing handles the full daylight-to-dusk cycle without manual intervention. IK10 durability eliminates the need for cages or protective housings, preserving the dome's clean aesthetics and unobstructed view. FIPS 140-2 certification makes it a default choice for government and defense contracts. Avoid this model if you need submersion capability (IP67+) or a fixed ultra-wide-angle lens; in those cases, consider variants within the i-PRO catalog that match your specific environmental or optical constraints.

Frequently Asked Questions

Q: What's the maximum useful IR range on the WV-S25500-V3LG?

A: The built-in 850nm LED delivers effective illumination to approximately 35 meters (115 feet) outdoors. Actual range depends on reflectivity of the target surface and ambient scattered light; dark, non-reflective surfaces may reduce effective range by 10–15%.

Q: Can the WV-S25500-V3LG run multiple analytics simultaneously?

A: Yes. The onboard AI processor supports three simultaneous analytics applications—for example, facial recognition + vehicle detection + loitering alert—on a single camera without offloading to the VMS or an external GPU appliance.

Q: Is the WV-S25500-V3LG compatible with Milestone XProtect?

A: Yes. The camera is ONVIF Profile S/T/G compliant and integrates natively with Milestone XProtect and other third-party VMS platforms via standard ONVIF drivers.

Q: What's the power consumption, and will it strain a standard PoE switch?

A: The WV-S25500-V3LG draws under 13W via IEEE 802.3af PoE. It won't strain standard PoE budget on modern switches. A typical 48-port PoE+ switch can safely power 15–20 of these cameras alongside other low-power PoE devices.

Q: Does the WV-S25500-V3LG support local recording if the network fails?

A: Yes. The camera includes a microSD card slot for local video backup, providing redundancy if network connectivity drops temporarily.

Q: What certifications does the WV-S25500-V3LG carry?

A: The camera is FIPS 140-2 Level 3 certified for cryptographic hardware and secure boot, making it suitable for federal, defense, and regulated financial deployments. It also carries standard FCC, CE, and UL approvals.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S25500-V3LG sits at a practical intersection: it's a 5MP camera that doesn't force you to choose between durability and image quality. Many outdoor dome cameras either prioritize vandal resistance at the expense of optics, or they optimize for surveillance detail and skip the protection needed in high-traffic or adversarial environments. This model avoids that tradeoff by coupling a solid 5MP sensor, a useful 3.1x optical zoom, and a genuinely tough IK10 housing. The FIPS 140-2 Level 3 crypto hardware is the tell-tale detail—it's rarely found in cameras at this resolution, which signals this product was engineered for environments where firmware integrity and encrypted comms aren't afterthoughts.

Technical Highlights:

• 132dB Super Dynamic Range: Eliminates the classic parking-lot problem: shadows under cars rendered as black blocks while the sky is blown out. This range lets a single camera ingest sunlit and shaded zones simultaneously without losing detail in either. On patrol or incident review, that translates to actionable footage instead of forensic dead zones.
• Color Night Vision (0.15–0.20 lux): Monochrome at night is standard; this camera holds color until very late dusk. A person in a colored jacket or a vehicle with a distinctive trim becomes identifiable in twilight. Once true darkness falls, it switches to IR monochrome. That 0.15–0.20 lux threshold is the key—it's about 3–5 times brighter than what typical low-light cameras claim, so you get usable color earlier in the evening and later in the morning.
• Three Simultaneous AI Applications: Facial recognition, vehicle plate detection, and loitering alert can run on the camera at once. No VMS licensing bump, no external compute cluster. For a security integrator managing a 100-camera deployment, that's a real operational advantage—you're not buying three separate modules to get three detection types.
• H.265 at Under 13W PoE: H.265 typically demands more CPU grunt, which usually means higher power draw. The fact that this camera delivers H.265 while staying under 802.3af budget means your existing PoE infrastructure absorbs it without upgrades. On long cable runs (100+ feet), that sub-13W headroom prevents brownouts during demand spikes.

Deployment Considerations:

• IK10 Doesn't Mean Underwater: The dome is impact-resistant, not submersible. If your site floods or requires the camera to operate partially submerged, this isn't the model. IP66 handles rain and spray; it doesn't handle a power-washing scenario aimed directly at a connector.
• Zoom Trade-off: The 2.9–9mm lens gives you 3.1x zoom, not 10x. You can reframe within a scene, but you won't see across a multi-acre facility from a single camera. Plan your placement accordingly, or add a dedicated PTZ for perimeter patrol.
• microSD as Redundancy, Not Primary Storage: The camera records to a microSD card if the network drops, but that's a gap-filler for brief outages. It's not a 24/7 local recorder. If you need guaranteed continuous archival without network dependency, integrate an NVR with SSD or HDD storage on your LAN.

The WV-S25500-V3LG is a clear choice for gated facilities, government campuses, or commercial environments where the camera itself is exposed to contact or weather stress, and where edge analytics reduce back-end load. It's also the default for any FIPS-regulated deployment. Skip it if you need a wide-angle fixed lens, submersion capability, or PTZ range—those require different models in the i-PRO lineup.

Key Specifications:
Color: White
